Inspection Procedure

  1. PREPARATION

    Refer to DESCRIPTION  under TROUBLESHOOTING.

  2. CHECK POWER TO OC MODULE
    1. Connect the battery negative cable to the battery.
    2. Turn the ignition switch to ON.
    3. Measure voltage between the terminal 1 of OC Module harness connector and chassis ground.

      specification (voltage) : Battery voltage

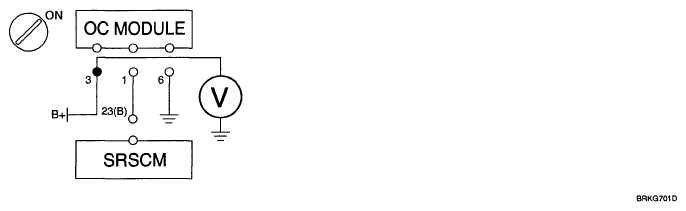

      Fig 1: Measuring Voltage Between Terminal 1 Of OC Module Connector And Chassis Ground
      G05322952Courtesy of HYUNDAI MOTOR CO.
    4. Is the measured voltage within specification?

      YES

      • Check short to battery line.

      NO

      • Repair or replace the wiring harness between the OC Module and ignition switch.
  3. CHECK SHORT TO BATTERY LINE
    1. Measure voltage between the terminal 1 of OC Module harness connector and chassis ground.

      specification (voltage) : Approximately 0 V

      Fig 2: Measuring Voltage Between Terminal 1 Of OC Module Connector And Chassis Ground
      G05322953Courtesy of HYUNDAI MOTOR CO.
    2. Is the measured voltage within specification?

      YES

      • Check short to ground.

      NO

      • Repair the short to battery line circuit on wiring harness between the OC Module and the SRSCM.
  4. CHECK SHORT TO GROUND
    1. Turn the ignition switch to LOCK.
    2. Disconnect the battery negative cable from the battery.
    3. Measure resistance between the terminal 1 of OC Module harness connector and chassis ground.
    4. Measure resistance between the terminal 1 and 6 of OC Module harness connector

      Specification (resistance) : Infinite

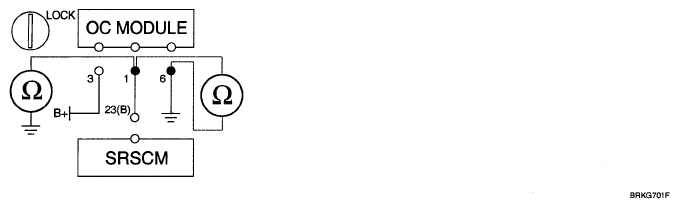

      Fig 3: Measuring Resistance Between Terminal 1 And 6 Of OC Module Connector
      G05322954Courtesy of HYUNDAI MOTOR CO.
    5. Is the measured resistance within specification?

      YES

      • Check OC Module Circuit.

      NO

      • Repair or replace the wiring harness between the OC Module and the SRSCM.
  5. CHECK OC SENSOR CIRCUIT
    1. Measure resistance between the terminal 1 of OC Module harness connector and the terminal 23 of the SRSCM harness connector (B).

      specification (resistance) : below 1 Ω

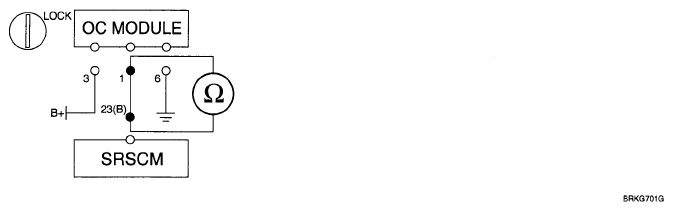

      Fig 4: Measuring Resistance Between Terminal 1 Of OC Module Connector And Terminal 23
      G05322955Courtesy of HYUNDAI MOTOR CO.
    2. Is the measured resistance within specification?

      YES

      • Check OC Module.

      NO

      • Repair or replace the wiring harness between the OC Module and the SRSCM.
  6. CHECK OC MODULE
    1. Replace the OC Module with a new one.
    2. Install the DAB module and connect the DAB connector.
    3. Connect the connectors of the PAB, SAB, CAB, BPT, FIS and SIS.
    4. Connect the SRSCM connector.
    5. Connect the battery negative cable to the battery.
    6. Connect the a Hi-Scan (Pro) the data link connector.
    7. Turn the ignition switch to ON and check the vehicle again.
    8. Does Hi-Scan (Pro) indicate any DTC related to OC Module?

      YES

      • Go to next step.

      NO

      • Replace the OC Module.
  7. CLEAR THE DTC AND CHECK THE VEHICLE AGAIN

    Refer to DESCRIPTION  under TROUBLESHOOTING.

    NOTE: Be sure to perform WCS reset with Hi-Scan (Pro) after clearing the OCS related DTC.
