Power Supply Circuit Inspection

Check open in power circuit
1. Ignition "ON" & engine "OFF"
2. Measure the resistance between stop lamp power circuit connector terminal at RAM side (BEC-RF1-33, 43, BEC-RR-14) and stop lamp (F18, F19-2, R03-1).
  Specification : 0 Ω

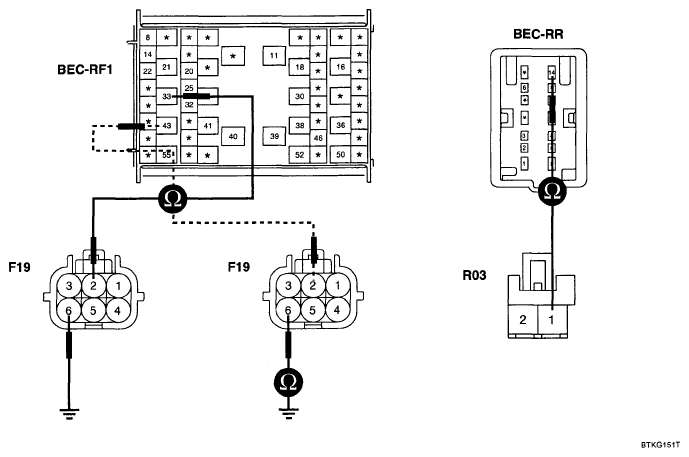

  Fig 1: Measuring Resistance Between Stop Lamp Power Circuit Connector Terminal And Stop Lamp
  Courtesy of HYUNDAI MOTOR CO.
3. Is the measured resistance within the specification?
  YES

  Go to "GROUND CIRCUIT INSPECTION ".

  NO

  Repair open in power circuit and Go to "VERIFICATION OF VEHICLE REPAIR ".
