Power Supply Circuit Inspection

Check short in power circuit
1. Ignition "ON" & engine "OFF".
2. Disconnect Left turn signal lamp.
3. Measure the resistance between Left turn signal lamp power circuit of FAM (BCM-FE-52).
  Specification : ∞ Ω

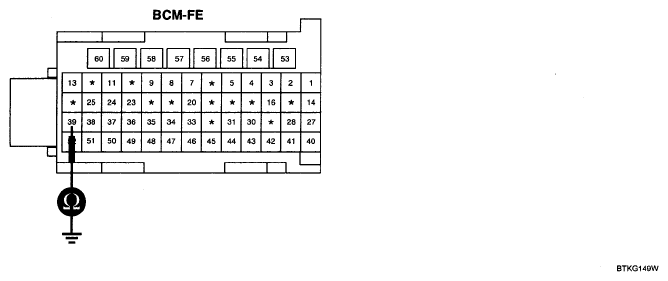

  Fig 1: Measuring Resistance Between Left Turn Signal Lamp Power Circuit Of FAM (BCM-FE-52)
  Courtesy of HYUNDAI MOTOR CO.
4. Is the measured resistance within the specification?
  YES

  Go to "COMPONENT INSPECTION ".

  NO

  Repair open to ground in power circuit and go to "VERIFICATION OF VEHICLE REPAIR ".
