Power Supply Circuit Inspection

Check short in power circuit
1. Ignition "ON" & engine "OFF".
2. Disconnect fog lamp.
3. Measure the resistance between fog lamp power circuit of FAM (BCM-FE-6) and chassis ground.
  Specification : ∞ Ω

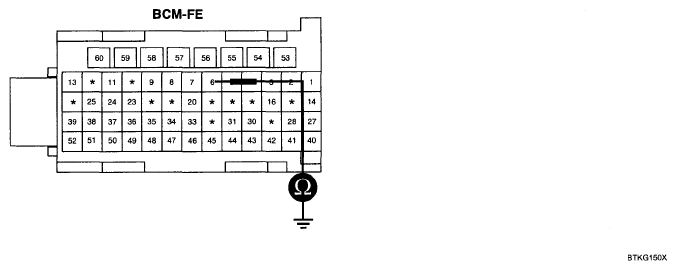

  Fig 1: Measuring Resistance Between Fog Lamp Power Circuit Of FAM (BCM-FE-6) And Chassis Ground
  Courtesy of HYUNDAI MOTOR CO.
4. Is the measured resistance within the specification?
  YES

  Go to "COMPONENT INSPECTION ".

  NO

  Repair short to ground in power circuit and go to "VERIFICATION OF VEHICLE REPAIR ".
