Ground Circuit Inspection

Check open in ground circuit
1. Ignition "ON" & engine "OFF".
2. Measure the resistance between parking lamp ground circuit (E24-3) and chassis ground.
  Specification : 0 Ω

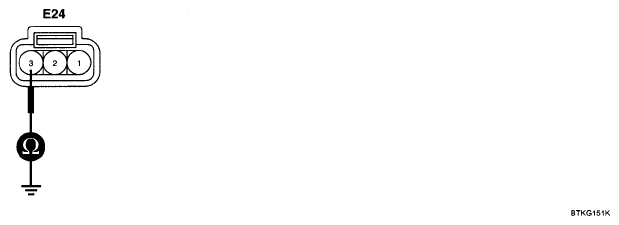

  Fig 1: Measuring Resistance Between Parking Lamp Ground Circuit (E24-3) And Chassis Ground
  Courtesy of HYUNDAI MOTOR CO.
3. Is the measured resistance within the specification?
  YES

  Go to "COMPONENT INSPECTION ".

  NO

  Repair open in ground circuit and go to "VERIFICATION OF VEHICLE REPAIR ".
