Ground Circuit Inspection

Check open in ground circuit
1. Ignition "ON" & engine "OFF"
2. Measure the resistance between clearance lamp ground circuit (F18-6) and chassis ground.
3. Measure the resistance between tail license side marker lamp ground circuit (R12-1) and chassis ground.
  Specification : 0 Ω

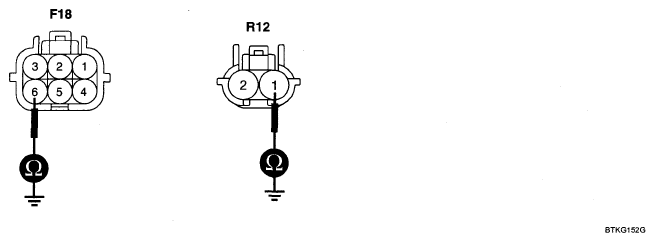

  Fig 1: Measuring Resistance Between Tail License Side Marker Lamp Ground Circuit (R12-1) And Chassis Ground
  Courtesy of HYUNDAI MOTOR CO.
4. Is the measured resistance within the specification?
  YES

  Go to "COMPONENT INSPECTION "

  NO

  Repair open in ground circuit and go to "VERIFICATION OF VEHICLE REPAIR "
