Schematic Diagram

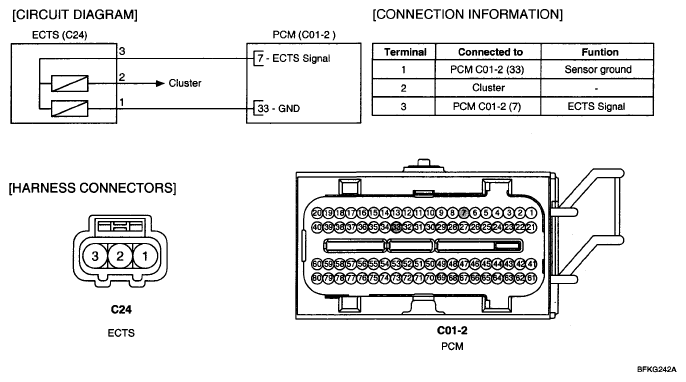

Fig 1: Engine Coolant Temperature Sensor Circuit Intermittent Low Input - Schematic Diagram
G05321821Courtesy of HYUNDAI MOTOR CO.
