Alarm Module: Service and Repair

IMMOBILIZER CONTROL UNIT

REPLACEMENT
1. Disconnect the negative (-) battery terminal.

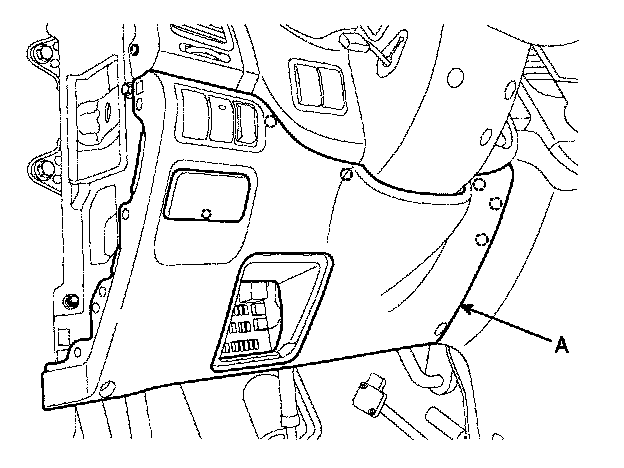

2. Remove the crash pad lower panel (A).
3. Remove the steering column shaft.

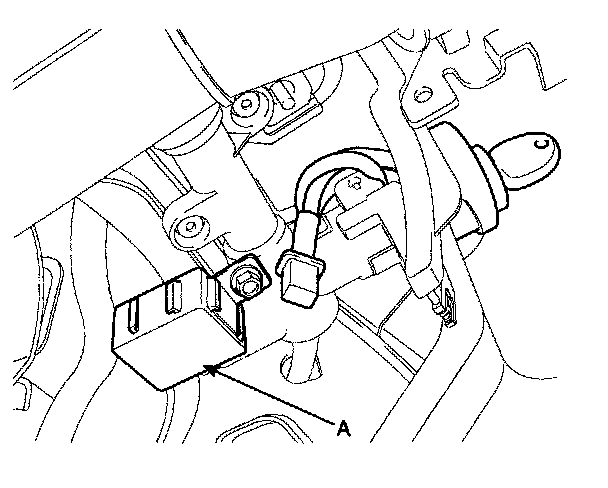

4. Disconnect the 5P connector of the SMARTRA unit and then remove the SMARTRA unit (A) after loosening the screw.
5. Installation is the reverse of removal procedure.
