Memory Positioning Switch: Service and Repair

IMS CONTROL SWITCH

REPLACEMENT
1. Remove the negative (-) battery terminal.
2. Remove the front door trim panel in the car.

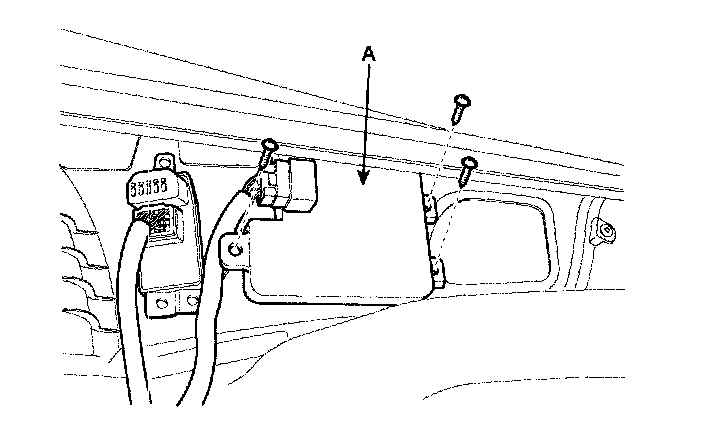

3. Remove the switch (A) mounting screws (3EA) after disconnecting the 16pin switch connector.
4. Remove the connector from the front door trim panel.
5. Installation is the reverse of removal.
