Oil Temperature Sensor For ECM: Description and Operation

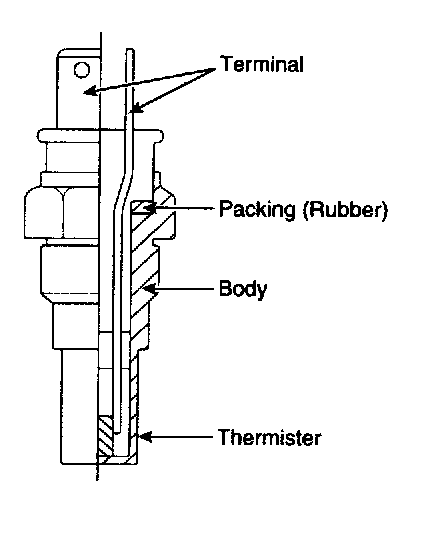

CVVT OIL TEMPERATURE SENSOR (OTS)

DESCRIPTION
The CVVT Oil Temperature Sensor (OTS) is a negative co-efficient thermistor used by the PCM to measure engine oil temperature for the purpose of adjusting CVVT calculations.

CVVT Oil Temperature Sensor (OTS) - Specification:

SPECIFICATION

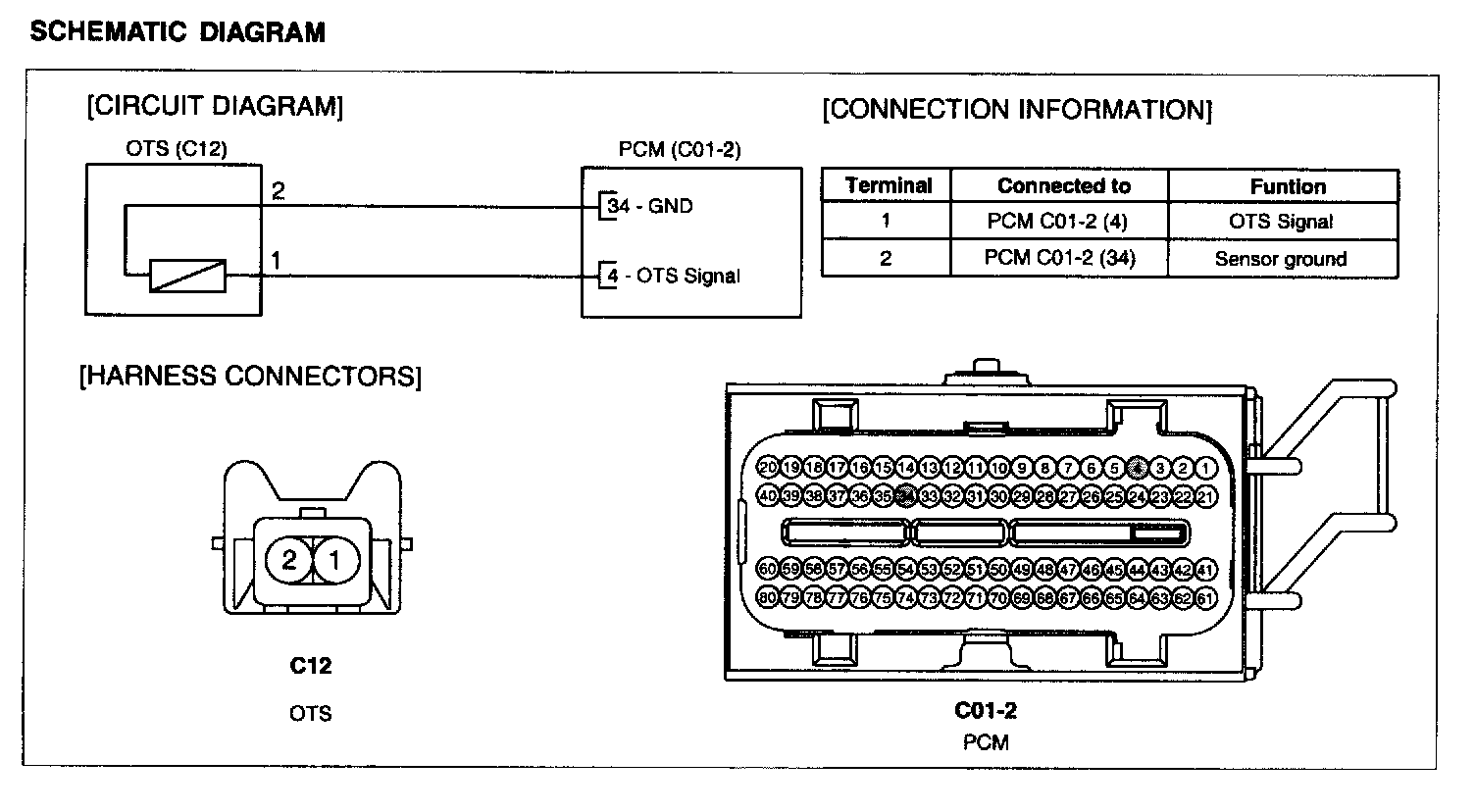

Schematic Diagram:

SCHEMATIC DIAGRAM
