Door Module: Service and Repair

REPLACEMENT
1. Disconnect the negative (-) battery terminal.
2. Remove the front door lower panel.

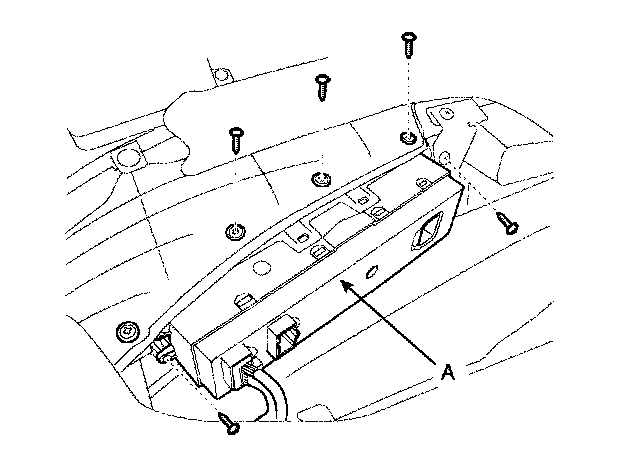

3. Remove the door module (A) mounting screws (5EA) after disconnecting module connector (3EA)

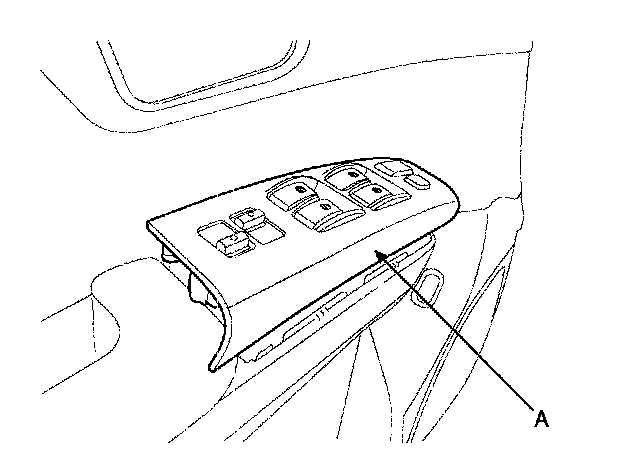

4. Remove the door module (DDM/ADM) (A) from the front door trim panel.
