Cruise Control Switch: Testing and Inspection

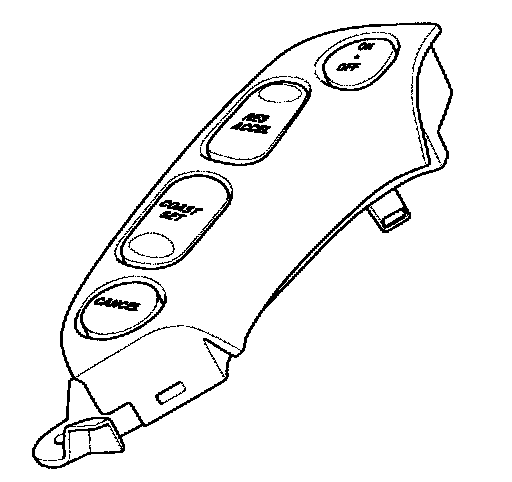

CRUISE CONTROL MAIN SWITCHINSPECTION
MEASURING RESISTANCE
1. Disconnect the cruise control switch connector from the control switch.

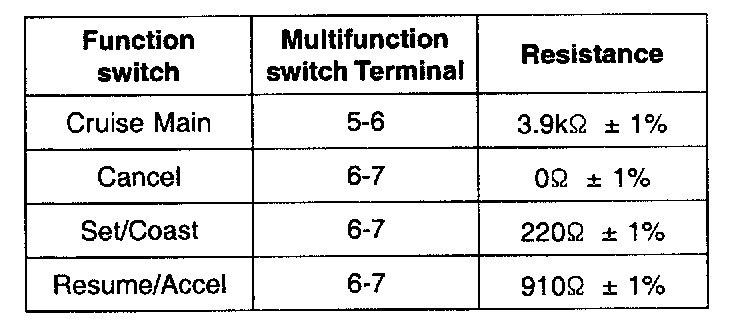

2. Measure resistance between terminals on the multifunction switch when each function switch is ON (switch is depressed).
3. If not within specification, replace switch.
