Coolant Temperature Sensor/Switch (For Computer): Locations

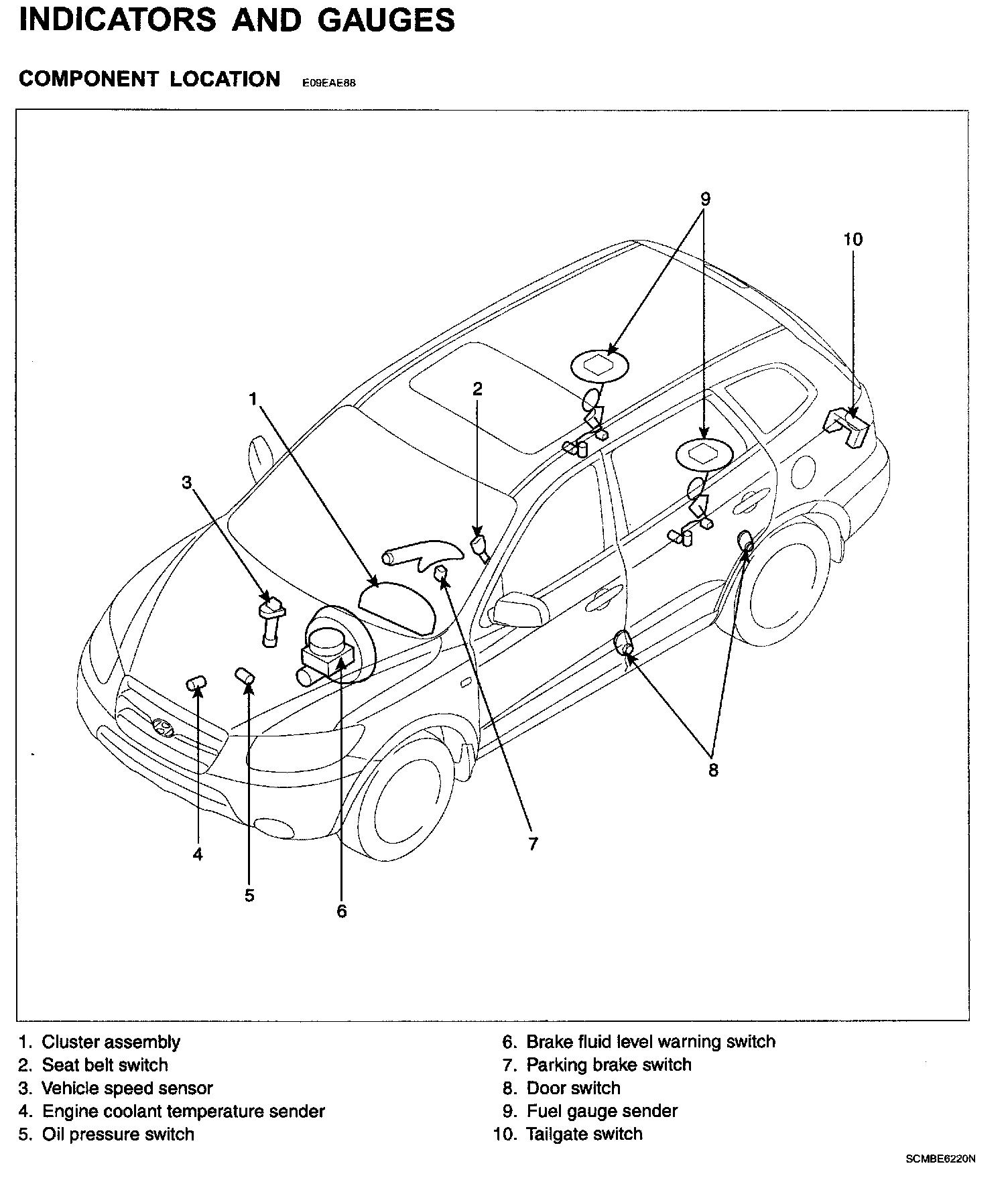

Indicators And Gauges - Component Location:

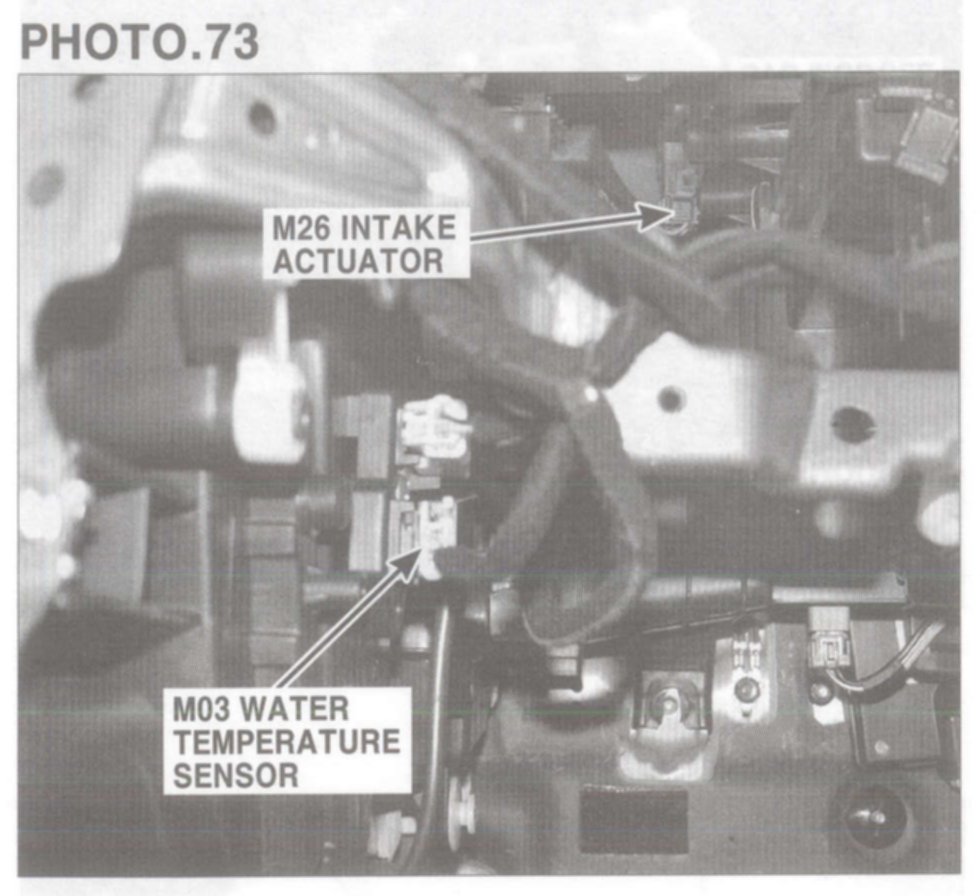

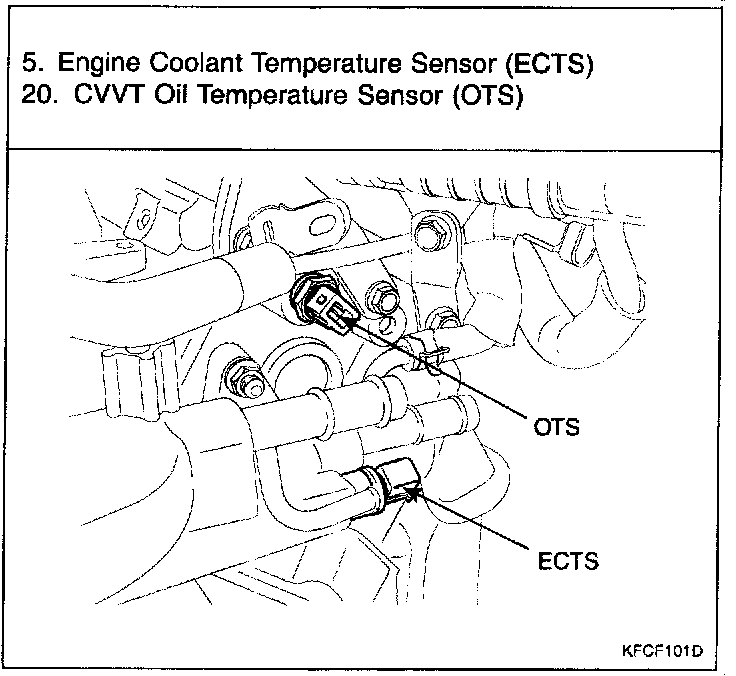

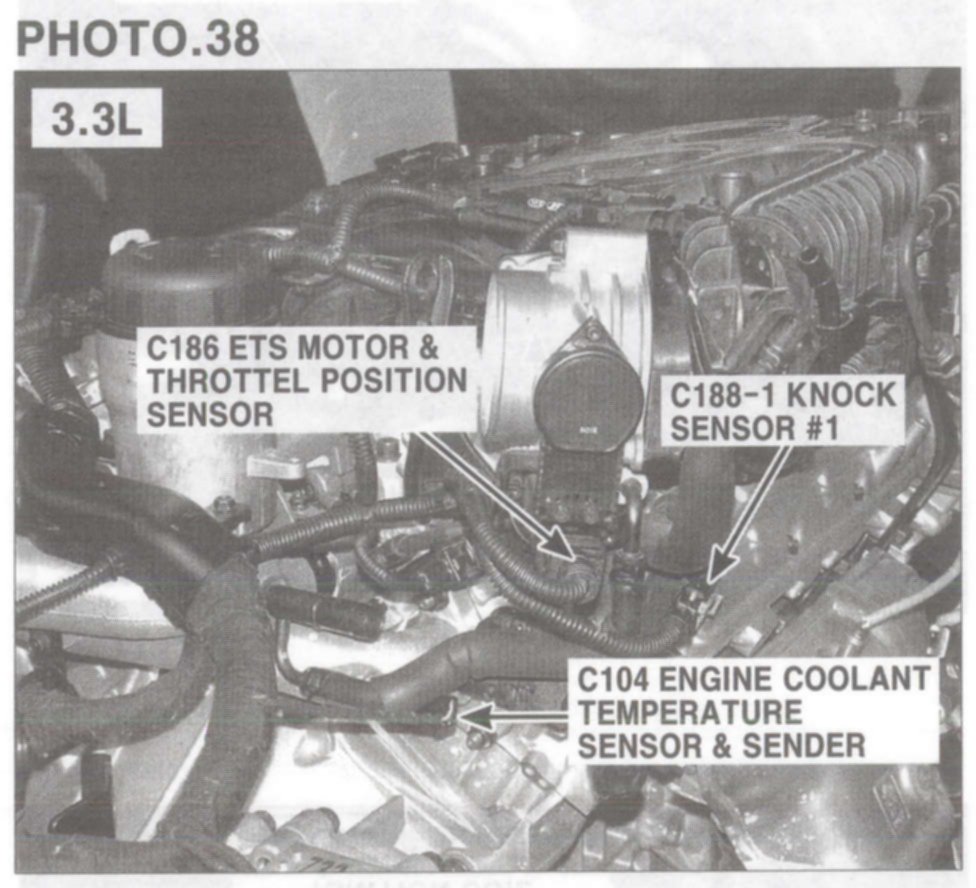

Gasoline Engine Control System - Component Location:
