Fuel Level Sensor: Locations

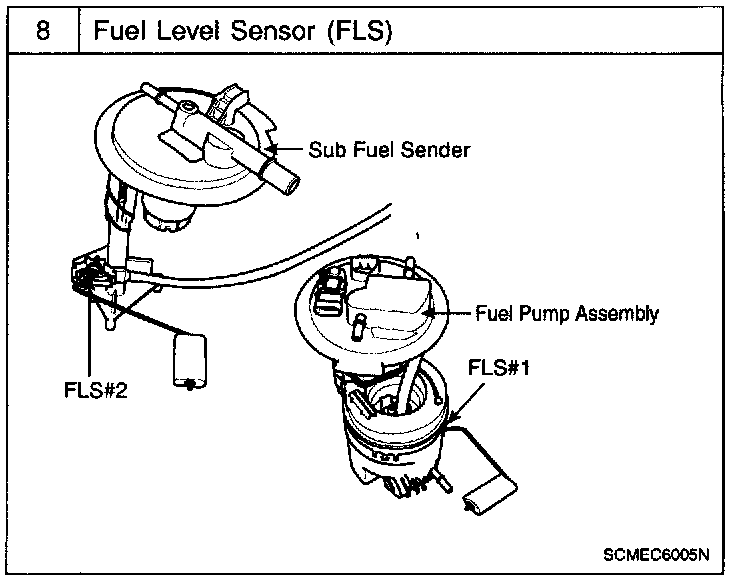

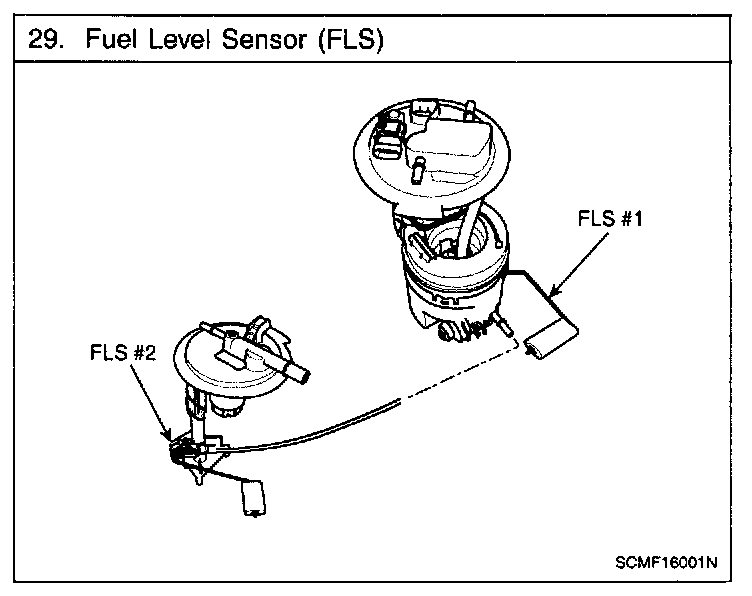

Gasoline Engine Control System - Component Location:

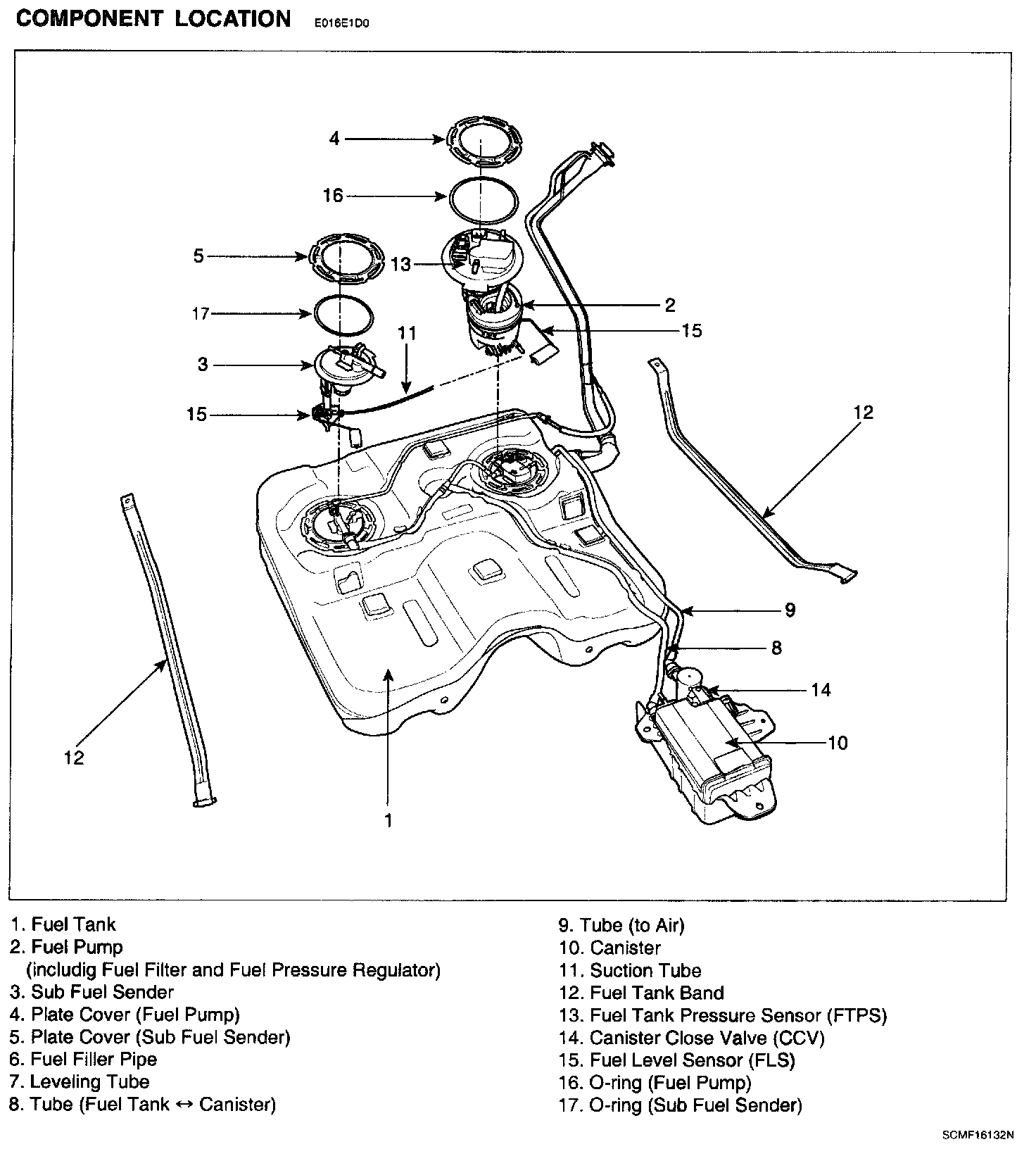

Fuel Delivery System - Components:

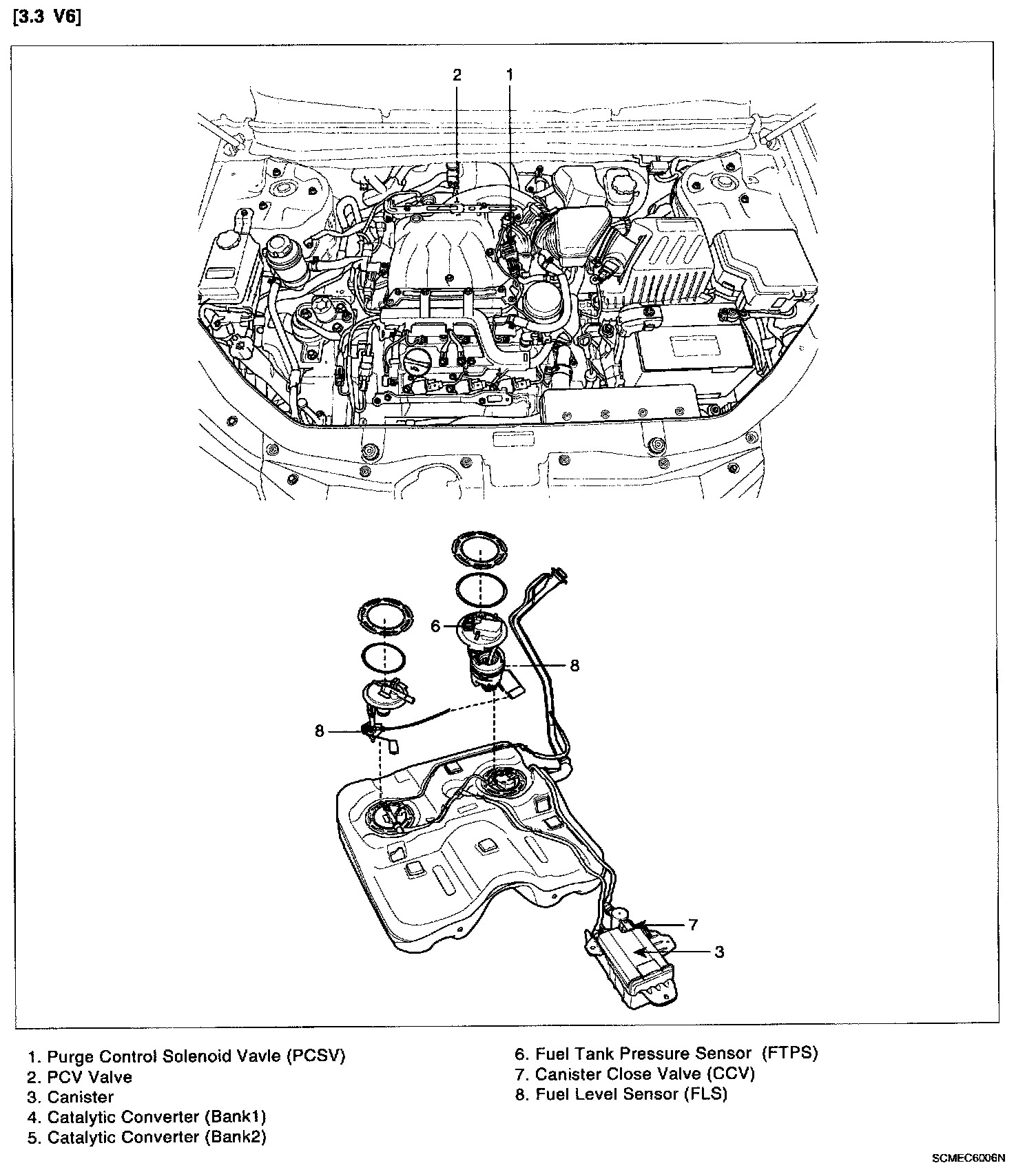

Emission Control System - Components Location:
