Schematic Diagram

Fig 1: Identifying CVVT Oil Temperature Sensor
G04884255Courtesy of HYUNDAI MOTOR CO.

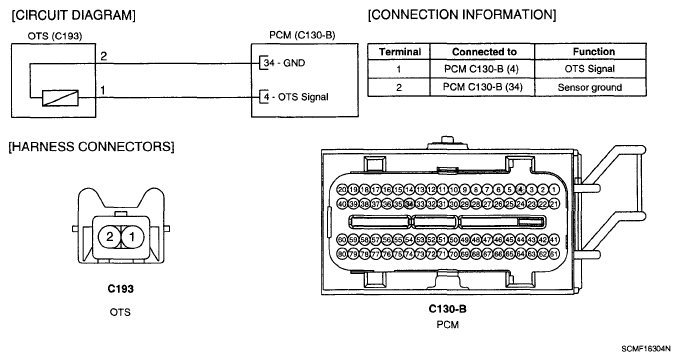

Fig 2: CVVT Oil Temperature Sensor - Schematic Diagram
G05349461Courtesy of HYUNDAI MOTOR CO.
