Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Fuel System (G6DA-GSL 3.3)
>>
Gasoline Engine Control System
>>
Mass Air Flow Sensor (MAFS)
>>
Inspection
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

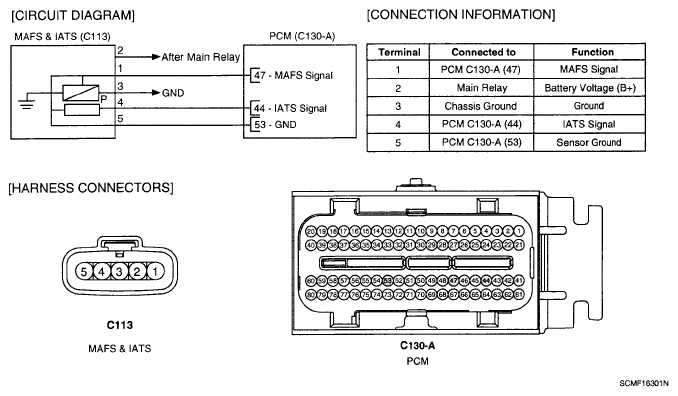

Fig 1: Mass Air Flow Sensor Schematic Diagram
