Engine Control Module

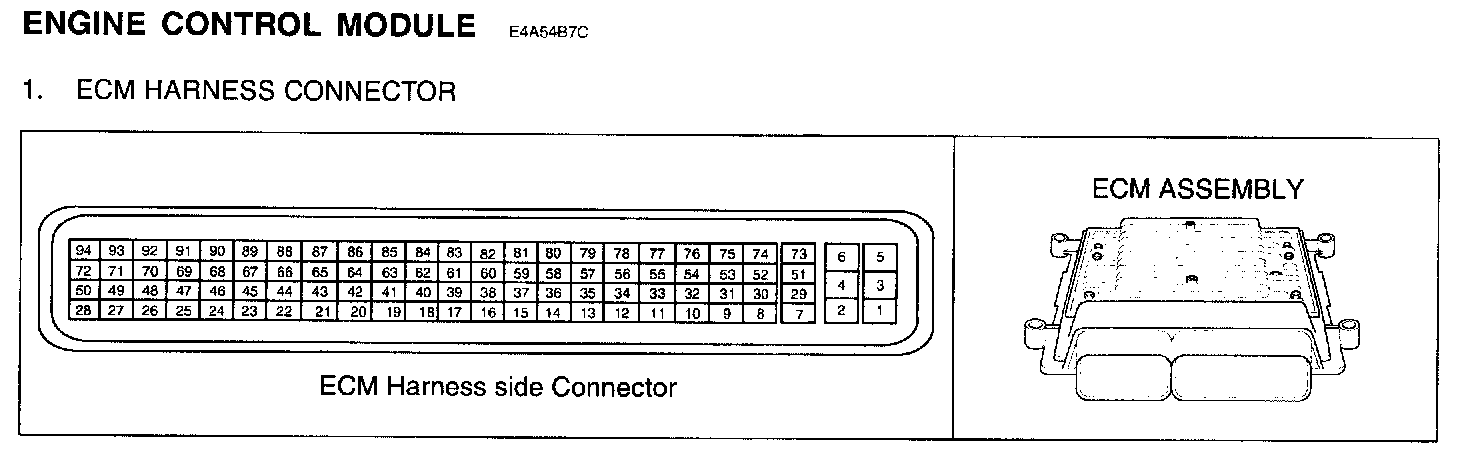

ECM Harness Connector:

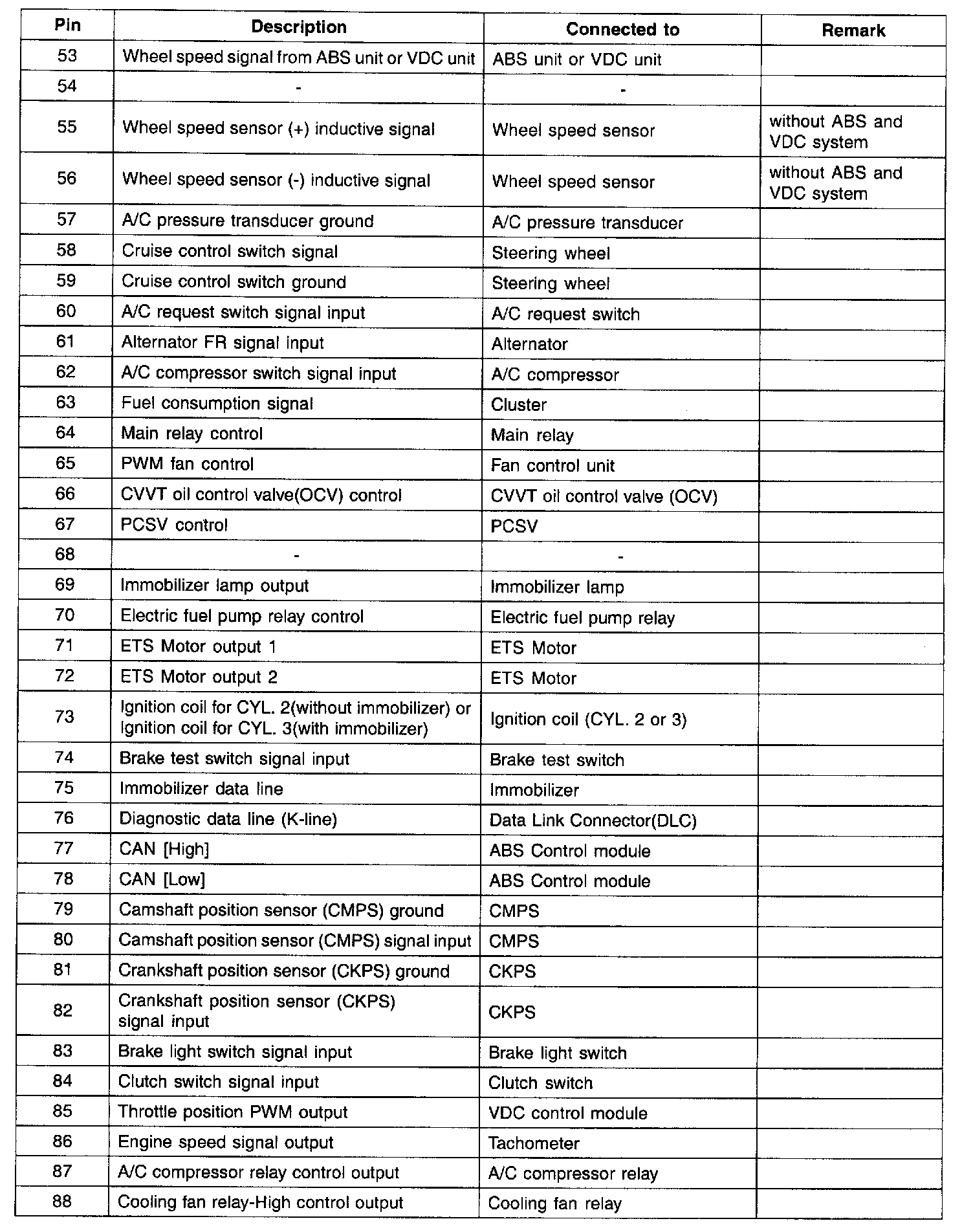

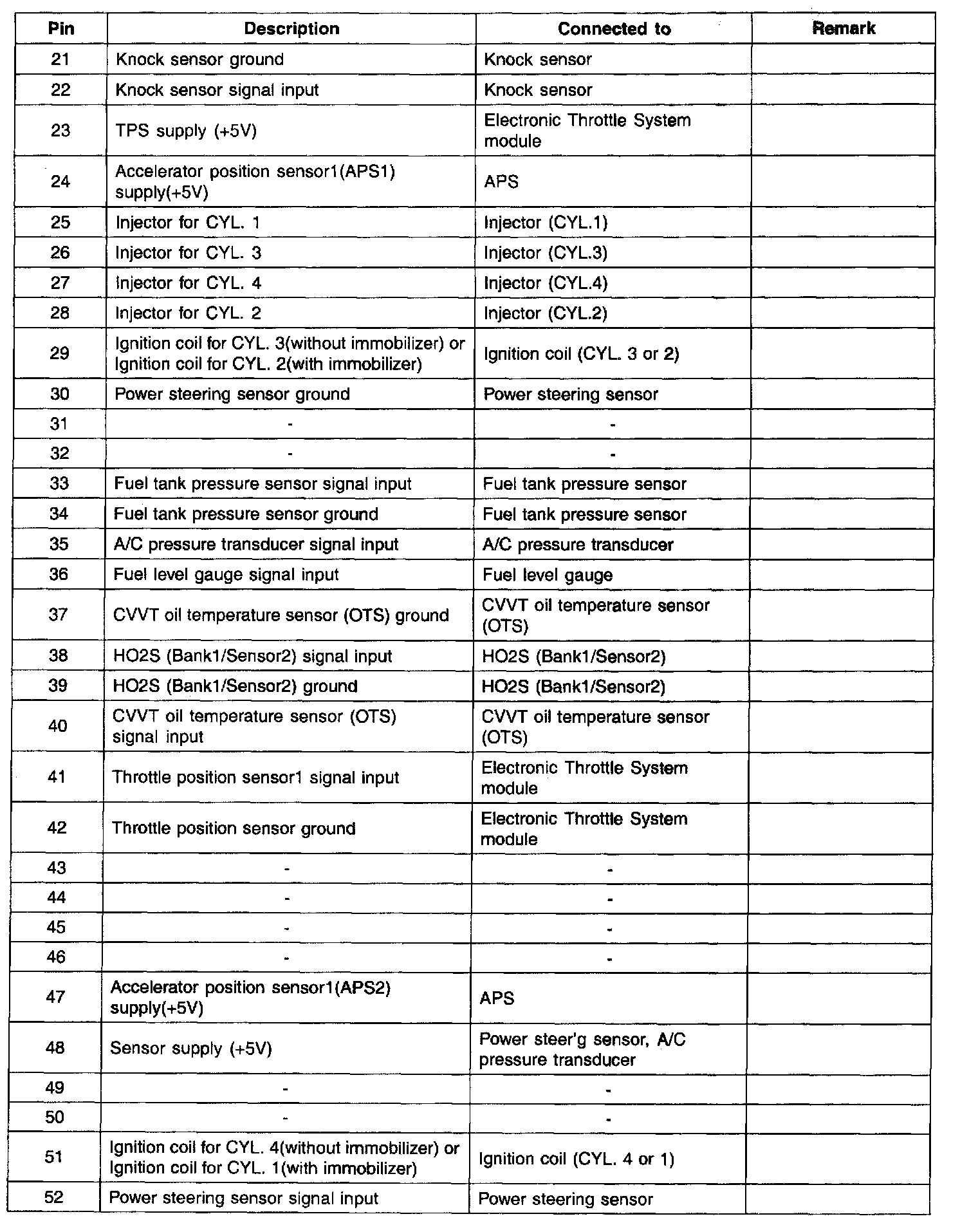

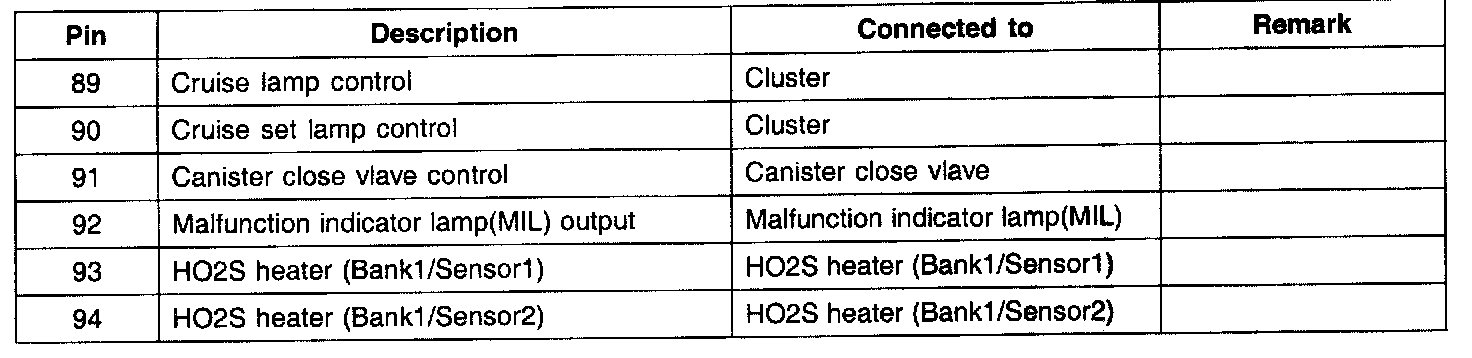

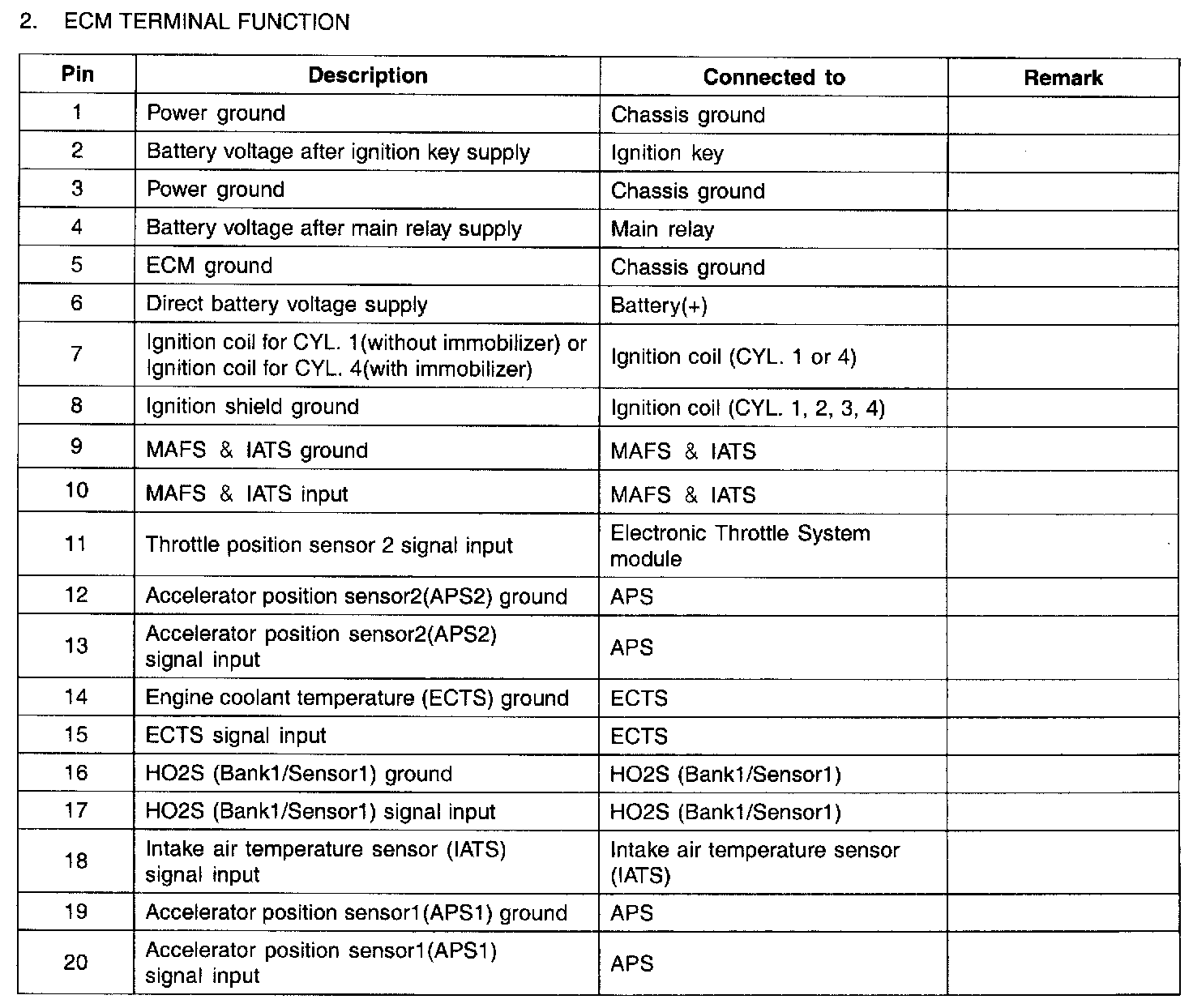

ECM Terminal Function Part 1:

ECM Terminal Function Part 2:

ECM Terminal Function Part 3:

ECM Terminal Function Part 4:

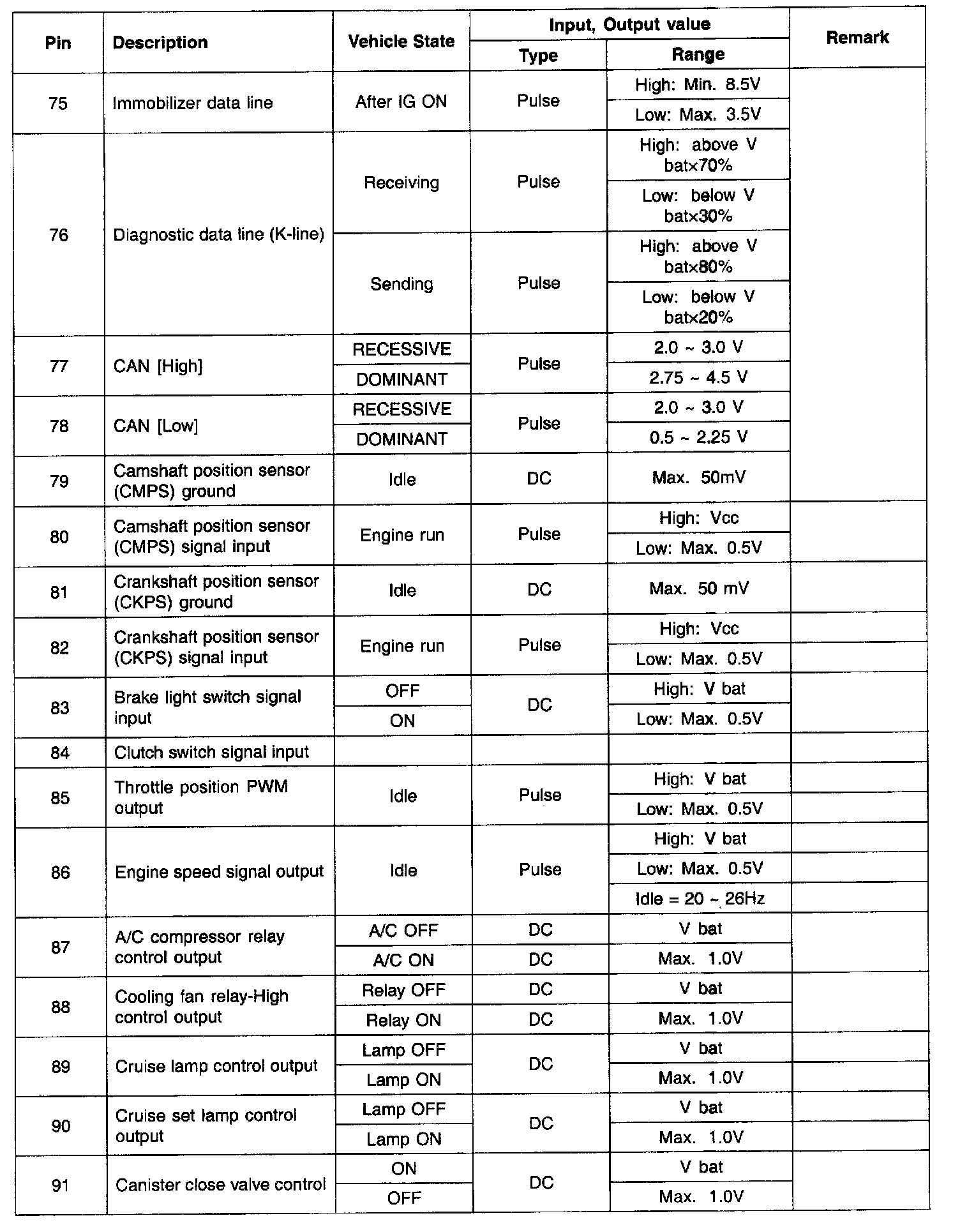

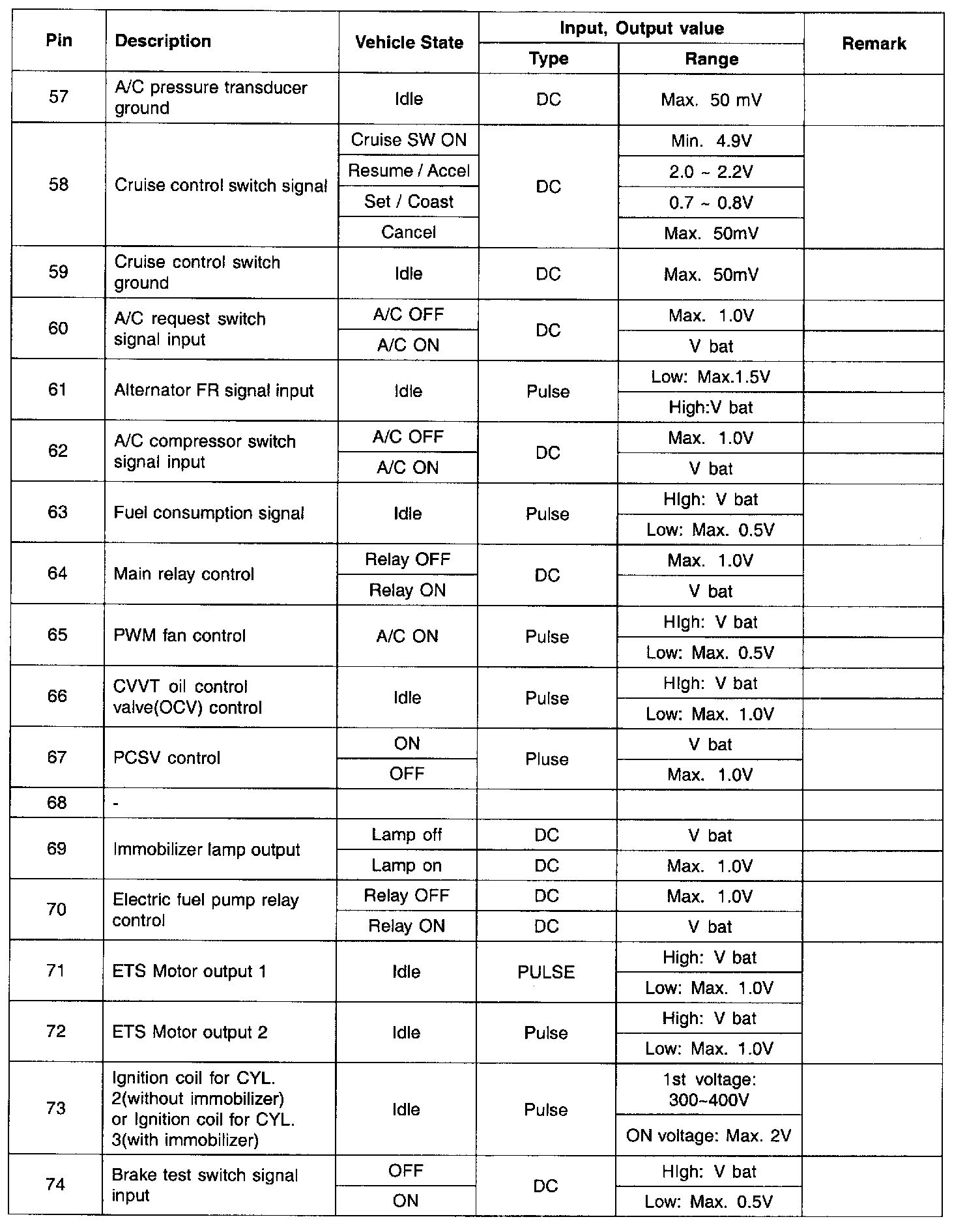

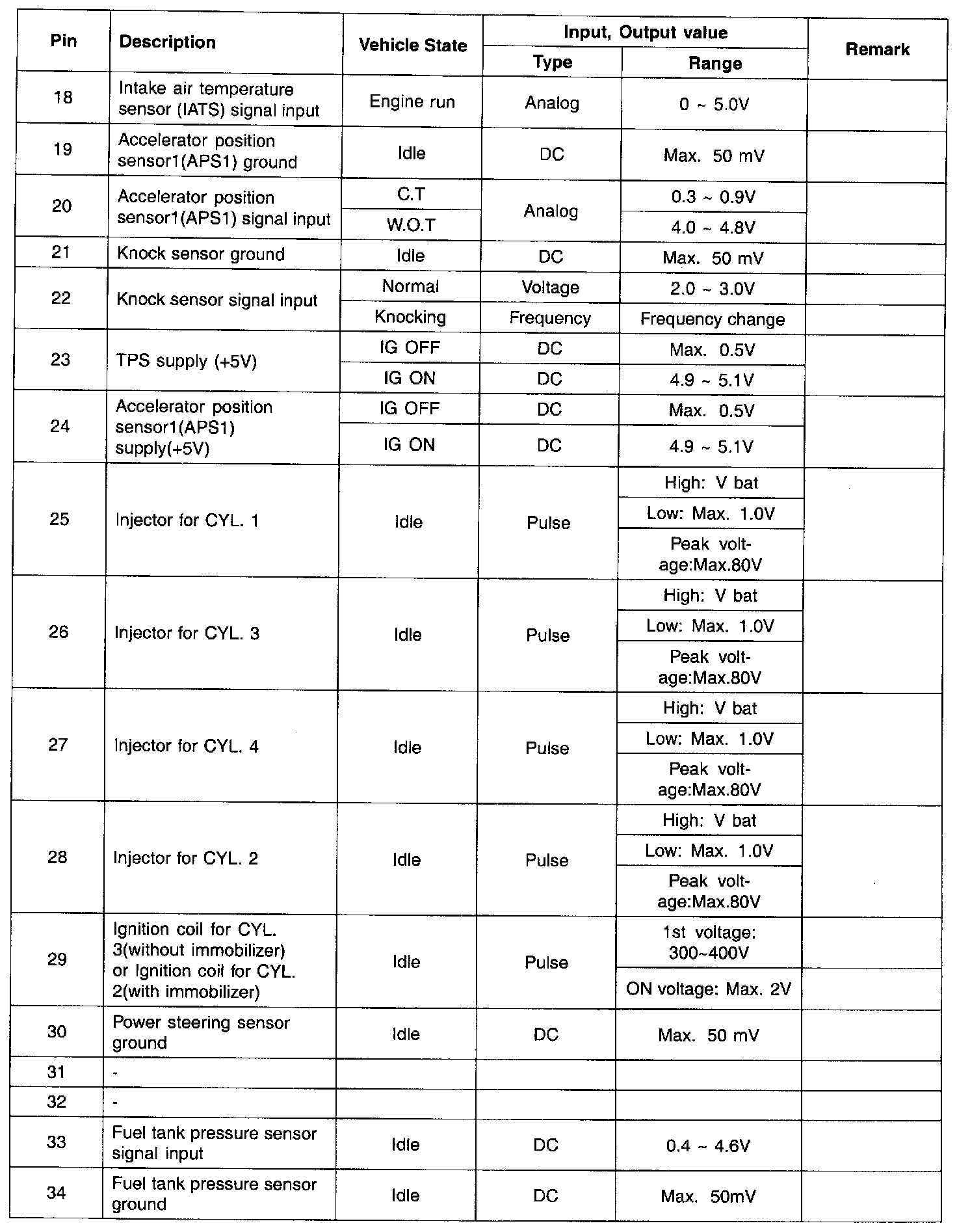

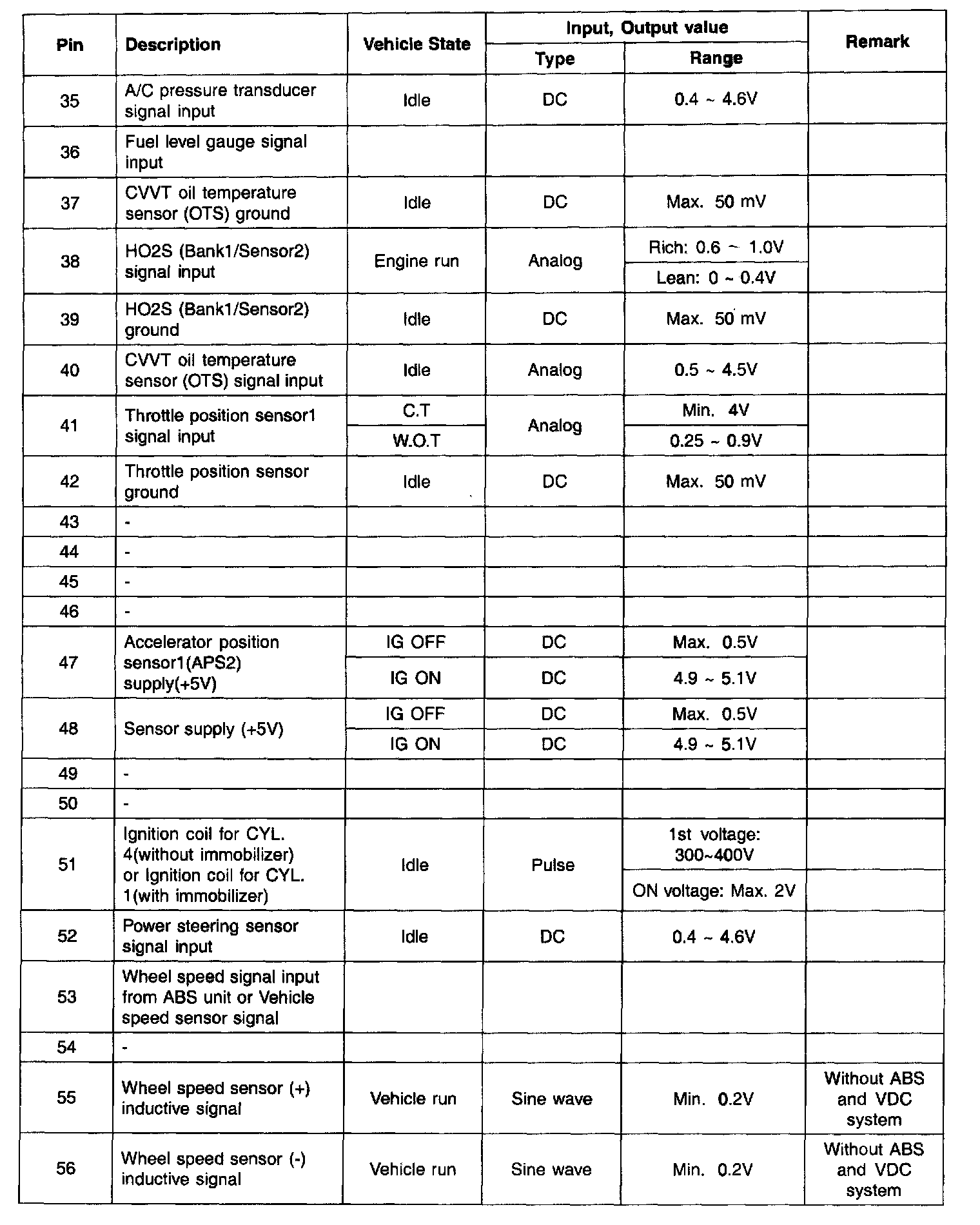

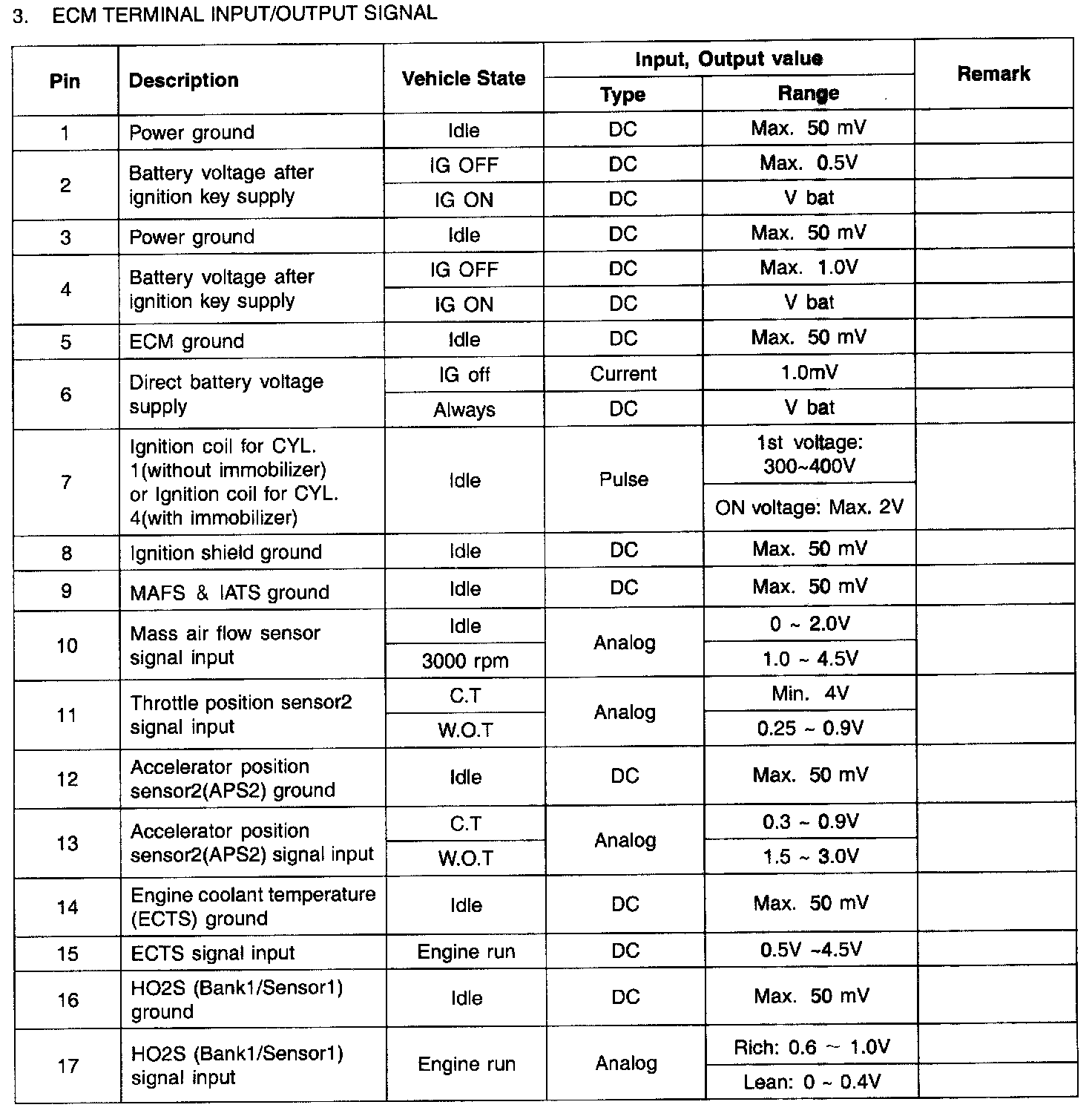

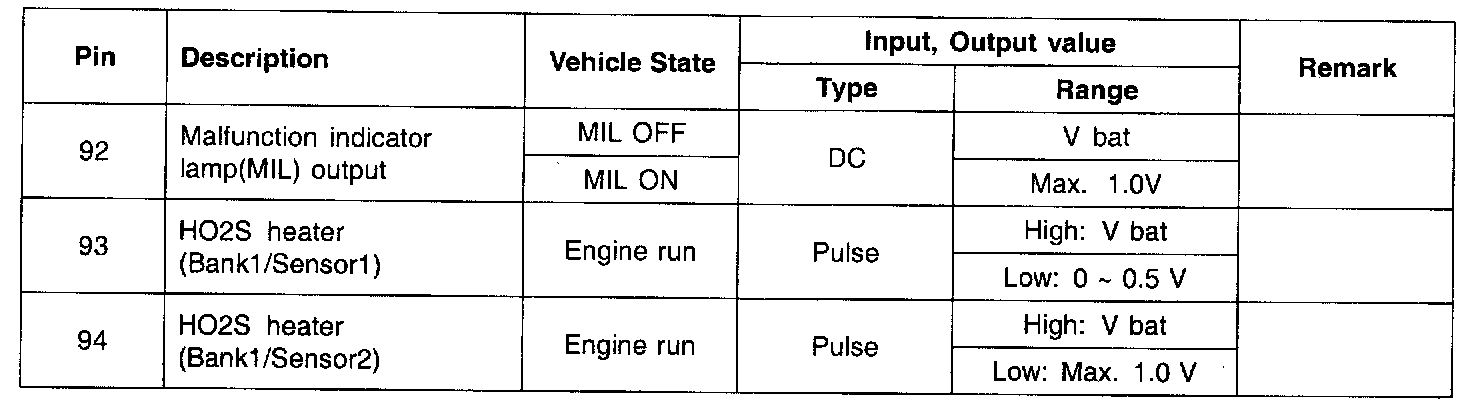

ECM Terminal Input/Output Signal Part 1:

ECM Terminal Input/Output Signal Part 2:

ECM Terminal Input/Output Signal Part 3:

ECM Terminal Input/Output Signal Part 4:

ECM Terminal Input/Output Signal Part 5:

ECM Terminal Input/Output Signal Part 6:
