Humidity Sensor: Service and Repair

REPLACEMENT

1. Disconnect the negative (-) battery terminal.

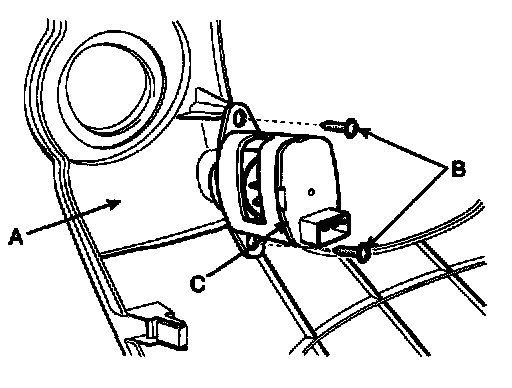

2. Remove the lower crash panel (A).
3. Disconnect humidity sensor connector.




4. Loosen the mounting screws (B) and then remove the humidity sensor (C).
5. Installation is the reverse order of removal.
