Solar Sensor: Service and Repair

REPLACEMENT

1. Disconnect the indirectly(-) battery terminal.

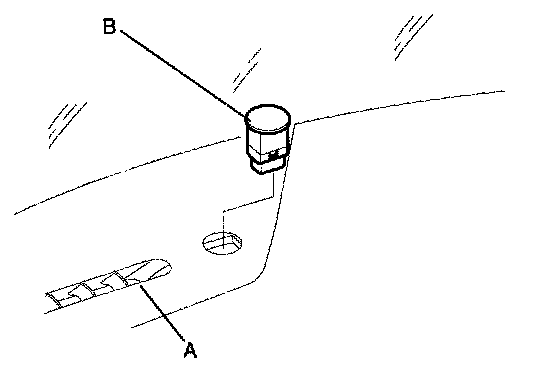

2. Using the (-) driver, Remove the photo sensor (B) from the right part of defrost nozzle (A).




3. Disconnect the connector.
4. Installation is the reverse order of removal.
