Input And Output Diagram

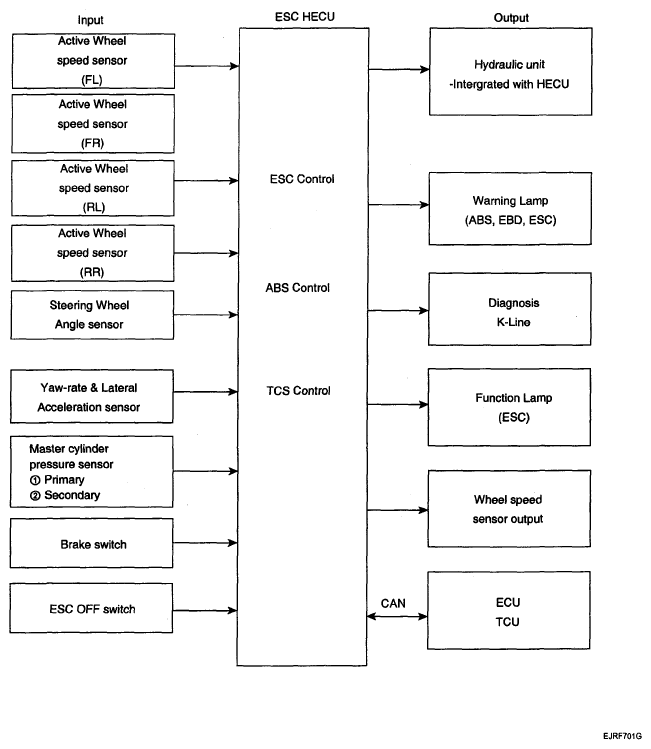

Fig 1: ESC HECU Input And Output Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
