Components Location

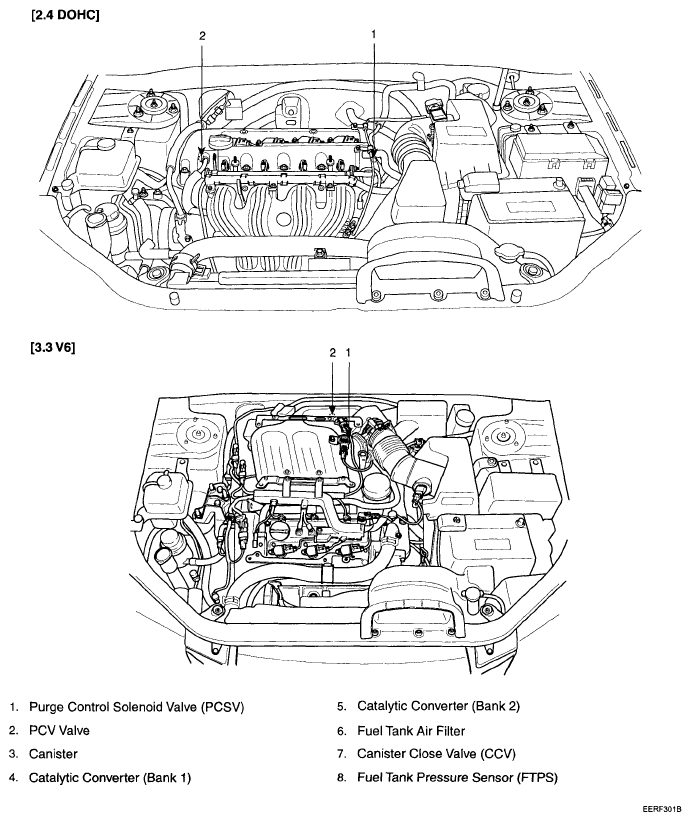

Fig 1: Identifying Emissions Control System Components
G04890783Courtesy of HYUNDAI MOTOR CO.

[2.4 DOHC]

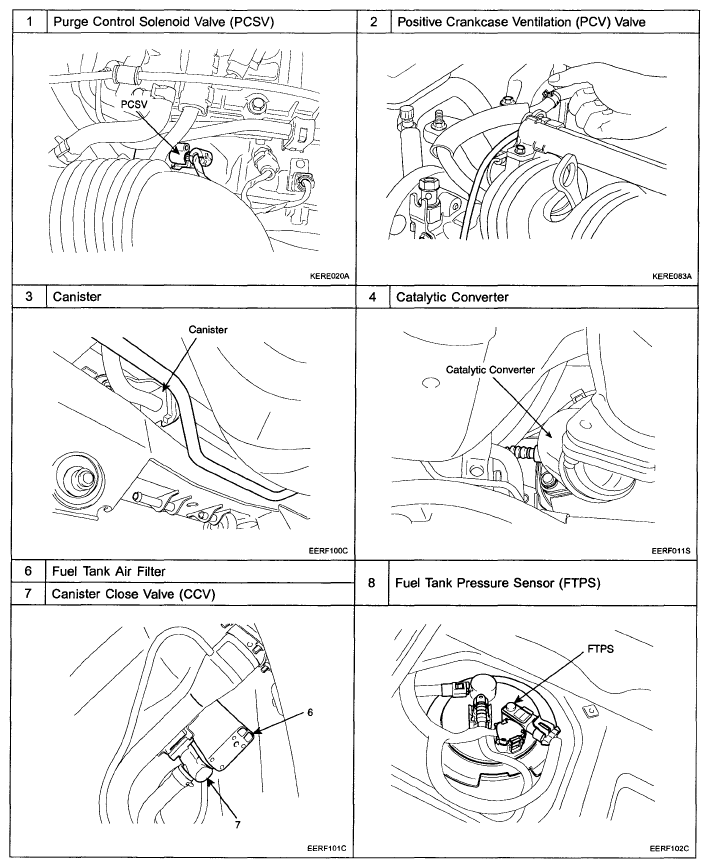

Fig 2: Identifying Emissions Control System Components (2.4 DOHC)
G04890784Courtesy of HYUNDAI MOTOR CO.

[3.3 V6]

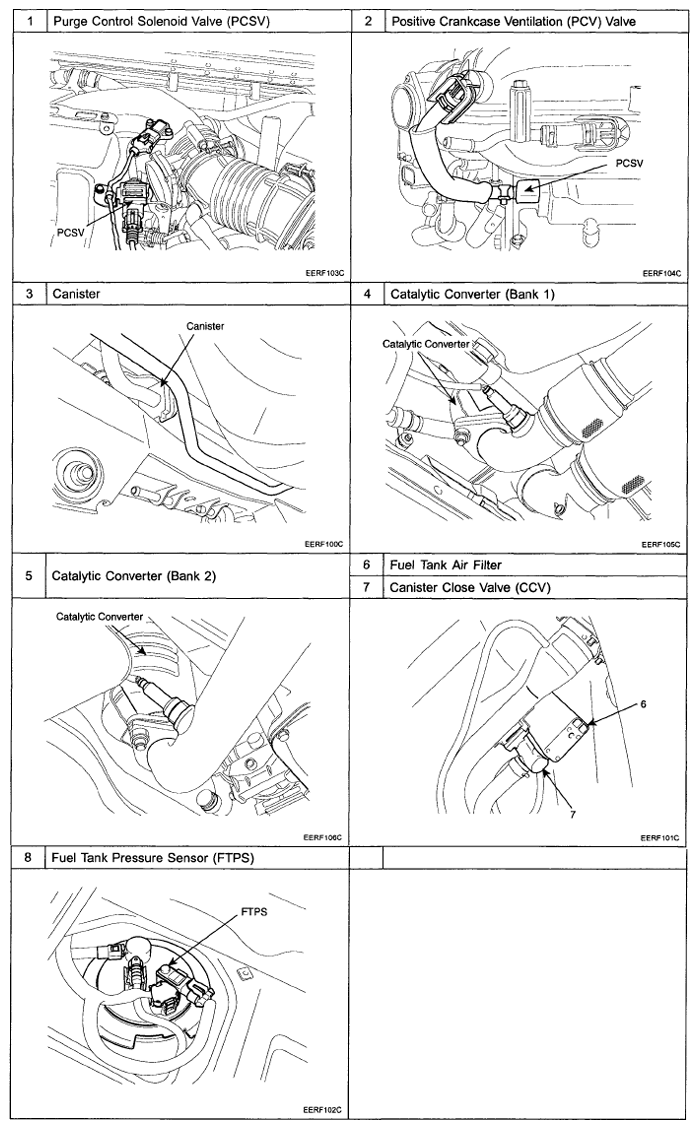

Fig 3: Identifying Emissions Control System Components (3.3 V6)
G04890785Courtesy of HYUNDAI MOTOR CO.
