Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Fuel System (G6DB-GSL 3.3)
>>
Gasoline Engine Control System
>>
Accelerator Position Sensor (APS)
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

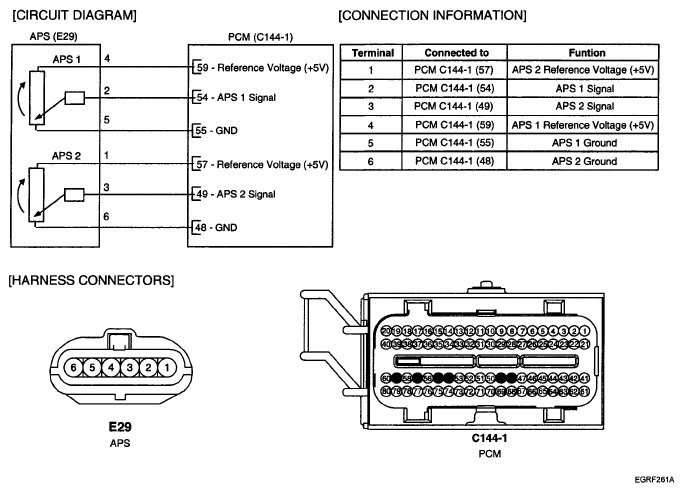

Fig 1: Accelerator Position Sensor (APS) - Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
