User Option Mode

The BCM offers 3 items user option mode for a user convenience (Auto door lock, door key burglar alarm, door lock state inform horn)

• It is able to set up the enable or disable of AUTO DOOR LOCK function or AUTO DOOR LOCK operation vehicle speed when using it.
• It is able to set up the enable or disable of enter the burglar alarm mode when using door lock by the key.
• It is able to set up the enable or disable of horn inform function when using door lock by the key or RKE.

1. Select option "SONATA(NF)" and press ENTER.
2. Select option "BODY CONTROL MODULE" and press ENTER.

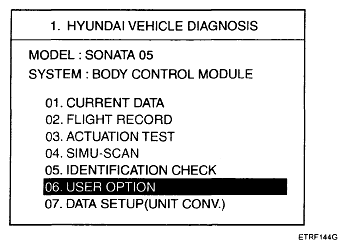

   Fig 1: Selecting Body Control Module Option

   Courtesy of HYUNDAI MOTOR CO.
3. Select option "USER OPTION" and press ENTER.

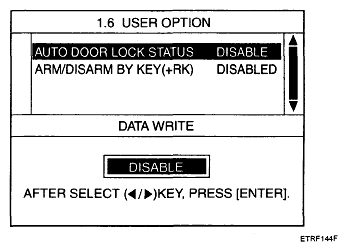

   Fig 2: Selecting User Option

   Courtesy of HYUNDAI MOTOR CO.
4. Select option "AUTO DOOR LOCK STATUS by using the direction button (Up and Down).
5. Select the parameter by using the direction button ( Left and Right) and press ENTER to save it.

   (Disable / 5km/h / 10km/h / 15km/h / 20km/h / 25km/h / 30km/h / 35km/h / 40km/h)

   Fig 3: Selecting Auto Door Lock Status

   Courtesy of HYUNDAI MOTOR CO.
6. Select option "ARM/DISARM BY KEY(+RKE)" by using the direction button (Up and Down).
7. Select the parameter by using the direction button ( Left and Right) and press ENTER to save it.

   (Disable / Enable)

8. Selection option "HORN ANSWER BACK (+RK)" by using the direction button (Up and Down).
9. Select the parameter by using the direction button (Left and Right) and press ENTER to save it.

   (Disable / Enable)
