Power Window Main Switch Inspection

Disconnect the negative (-) battery terminal.
Remove the front door trim panel. (Refer to the FRONT DOOR )
Disconnect the 14P connector from the switch.

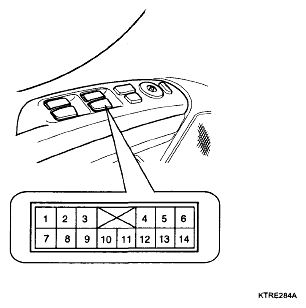

Fig 1: Power Window Main Switch 14P Connector Terminals
Courtesy of HYUNDAI MOTOR CO.
Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.

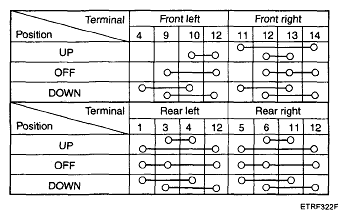

Fig 2: Power Window Main Switch Continuity Chart
Courtesy of HYUNDAI MOTOR CO.
