Check Open Circuit

• Continuity Check
• Voltage Check

If an open circuit occurs (as seen in Fig 1), it can be found by performing Step  2 (Continuity Check Method) or Step  3 (Voltage Check Method) as shown below.

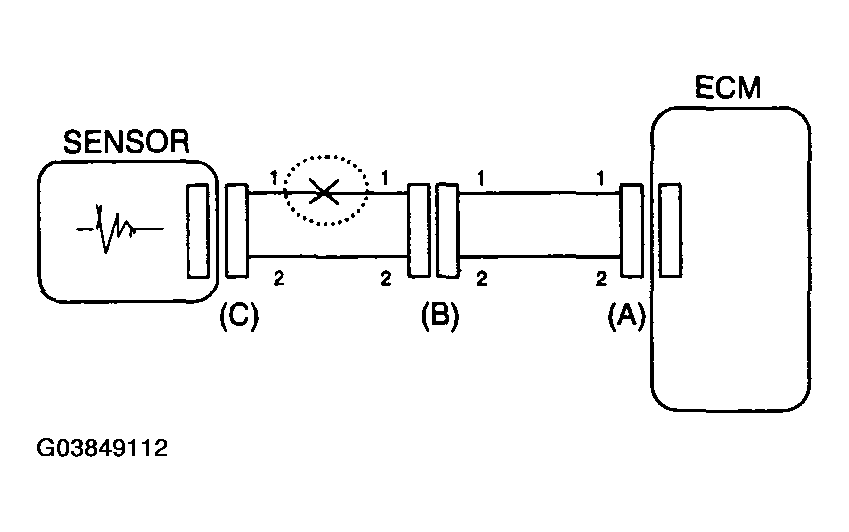

Fig 1: Identifying Open Circuit

Courtesy of HYUNDAI MOTOR CO.

Specification (Resistance)

1Ω or less --> Normal Circuit

1^MΩ or Higher --> Open Circuit

1. Disconnect connectors (A), (C) and measure resistance between connector (A) and (C) as shown in [Fig 2].

   In [Fig 2.] the measured resistance of line 1 and 2 is higher than 1^MΩ and below 1 Ω respectively. Specifically the open circuit is line 1 (Line 2 is normal). To find exact break point, check sub line of line 1 as described in next step.

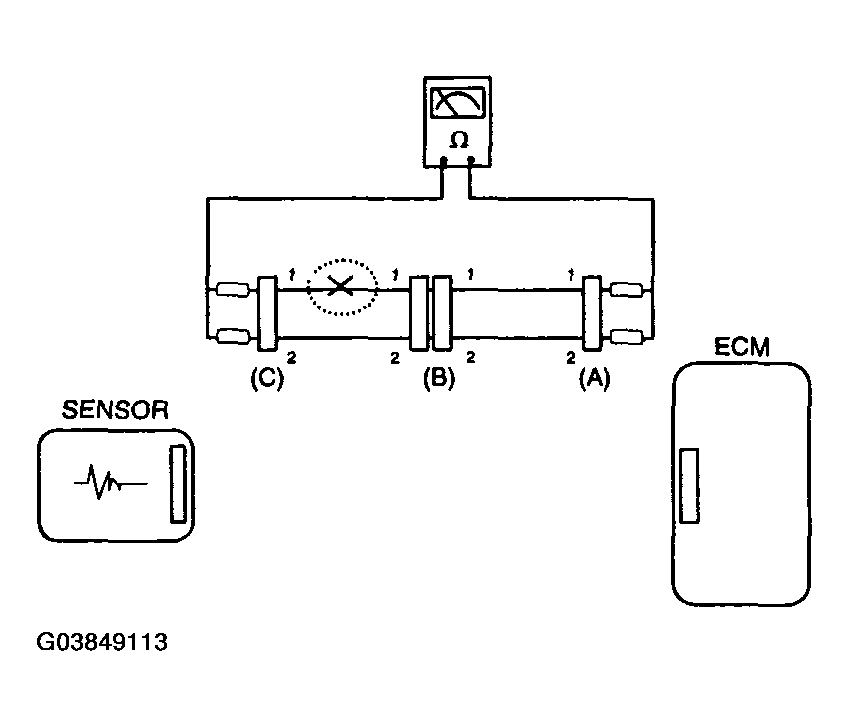

   Fig 2: Measuring Resistance Between Connector

   Courtesy of HYUNDAI MOTOR CO.
2. Disconnect connector (B), and measure for resistance between connector (C) and (B1) and between (B2) and (A) as shown in [Fig 3].

   In this case the measured resistance between connector (C) and (B1) is higher than 1 ^MΩ and the open circuit is between terminal 1 of connector (C) and terminal 1 of connector (B1).

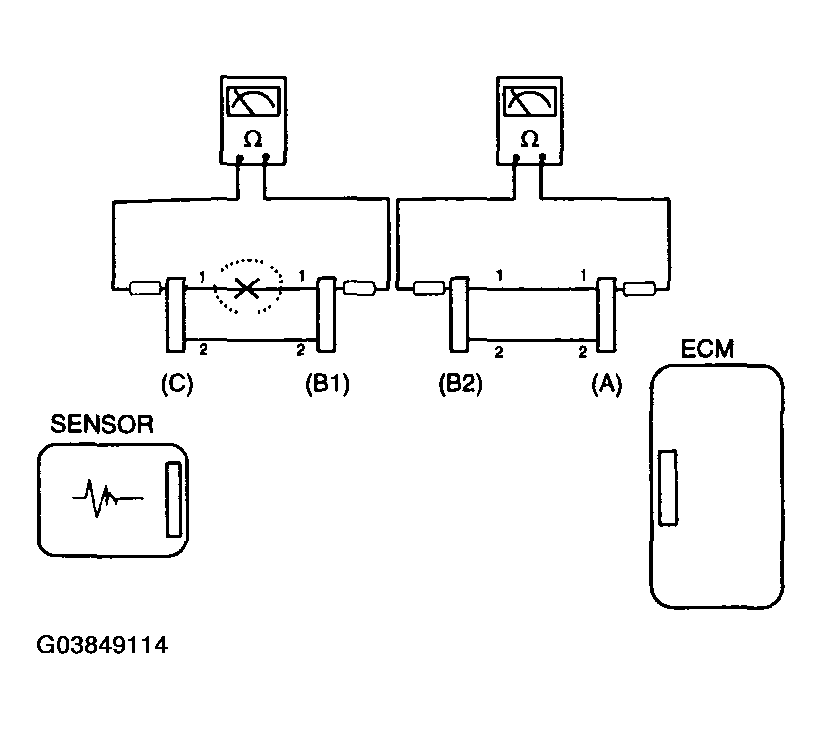

   Fig 3: Disconnecting Connector And Measuring For Resistance Between Connector (C) And (B1) And Between (B2) And (A)

   Courtesy of HYUNDAI MOTOR CO.

1. With each connector still connected, measure the voltage between the chassis ground and terminal 1 of each connectors (A), (B) and (C) as shown in [Fig 4].

   The measured voltage of each connector is 5V, 5V and 0V respectively. So the open circuit is between connector (C) and (B).

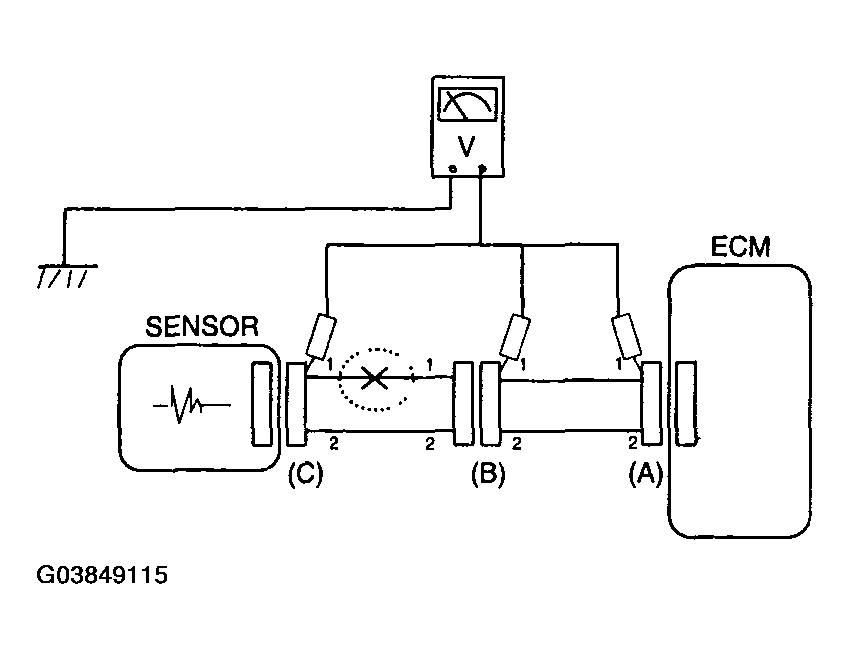

   Fig 4: Measuring Voltage Between Chassis Ground And Terminal Of Each Connectors

   Courtesy of HYUNDAI MOTOR CO.
