Monitor Scan Tool Data

Ignition "ON" & Engine "OFF".
Disconnect IAT sensor connector.
Connect Scan tool and monitor the "INT.AIR TEMP. SNSR (V)" parameter on the Scan tool data list.
Specification: Approx. 5V

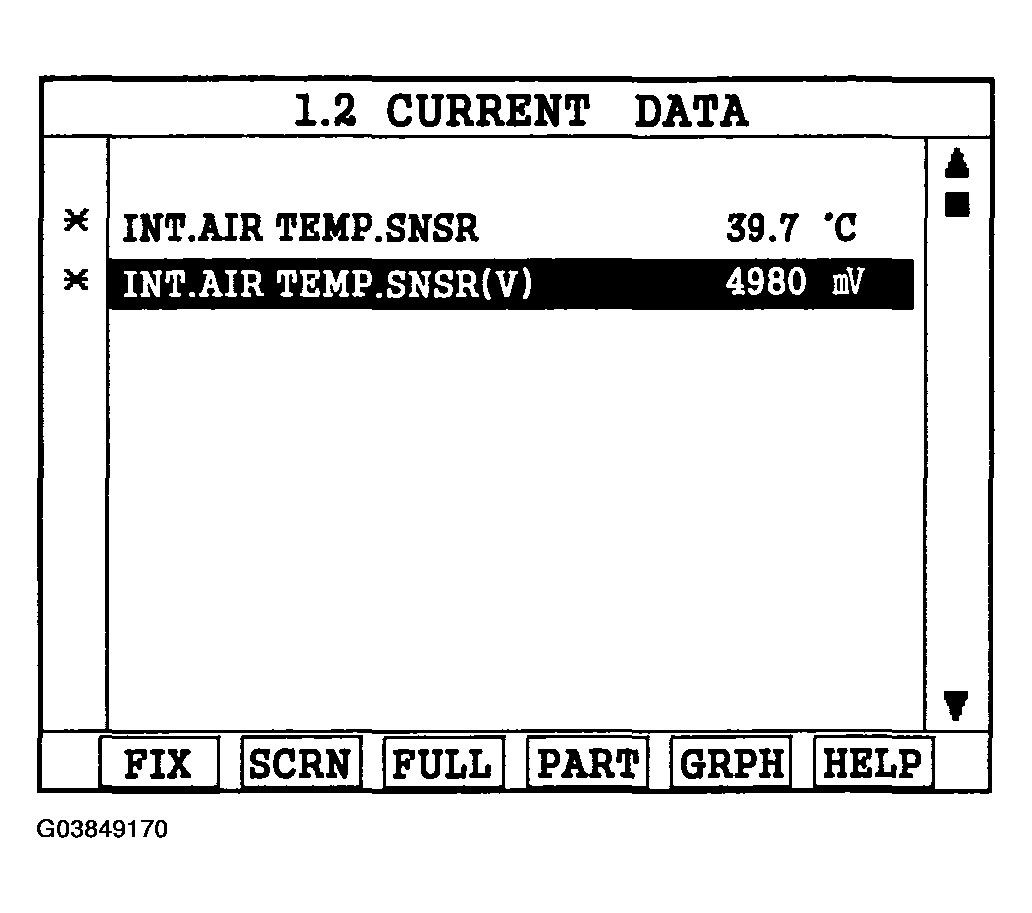

Fig 1: Connecting Scan Tool And Monitoring "INT.AIR TEMP. SNSR (V)" Parameter On The Scan Tool Data List
Courtesy of HYUNDAI MOTOR CO.
Is displayed IAT data near the specified value?
YES:
- Possibility of sensor malfunction. Go to "COMPONENT INSPECTION " procedure.
NO:
- Possibility of signal circuit short to ground. Go to next step below.
