Monitor Scan Tool Data

Ignition "ON" & Engine "OFF"
Disconnect OTS connector
Connect Scan tool and monitor the "OIL TEMP. SENSOR (V)" parameter on the Scan tool data list.
Specification: Approx. 5V

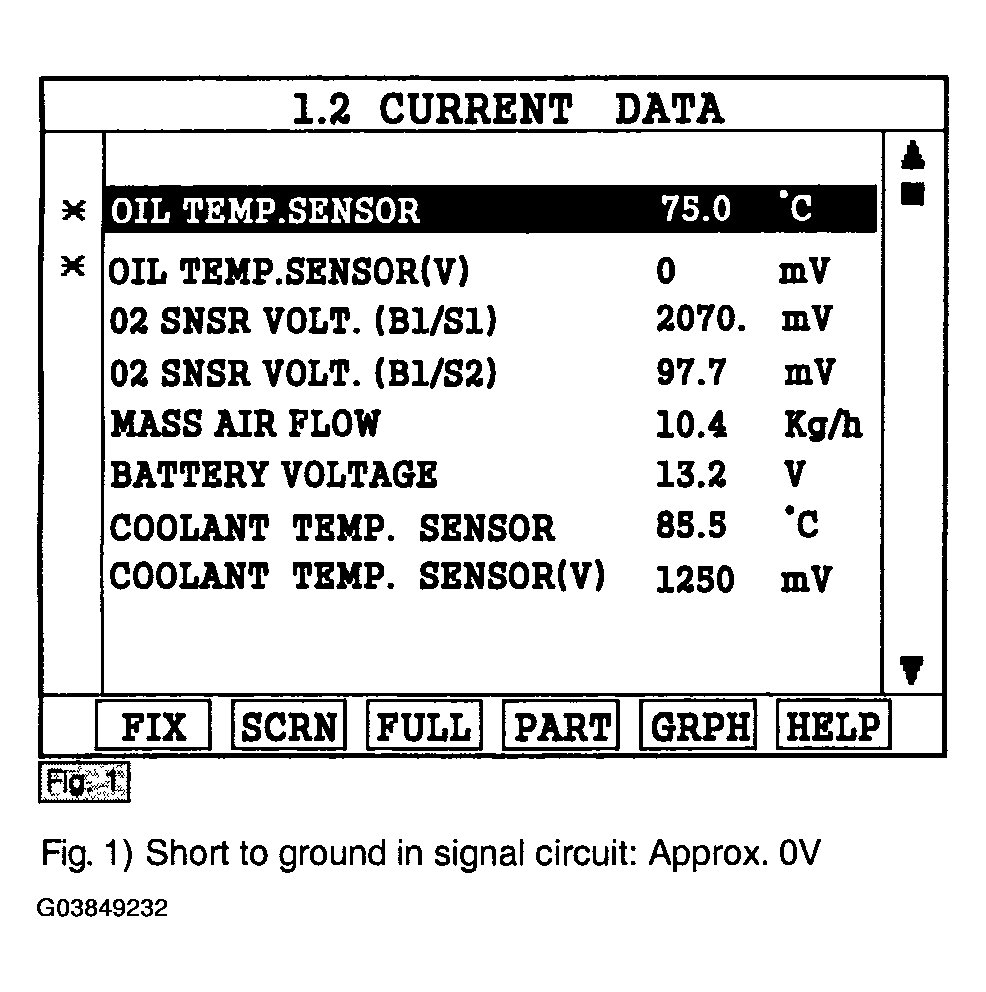

Fig 1: Current Data Display
Courtesy of HYUNDAI MOTOR CO.
Is OTS parameter near the specified value?
YES:
- Possibility of sensor malfunction. Go to "COMPONENT INSPECTION " procedure.
NO:
- Possibility of signal circuit short to ground. Go to next step below.
