Components Location

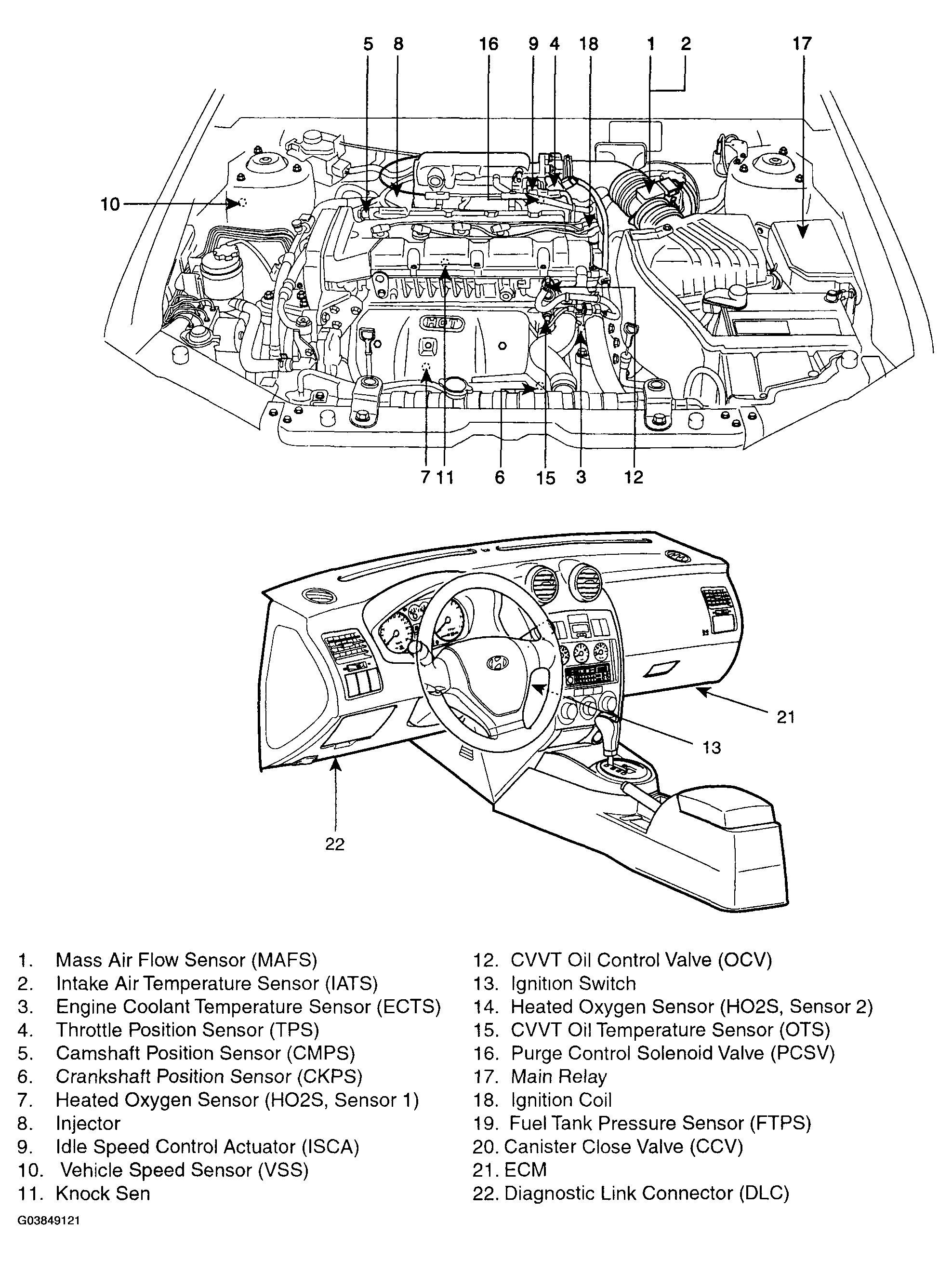

Fig 1: Identifying fuel system Components Location (1 Of 3)
G03849121Courtesy of HYUNDAI MOTOR CO.

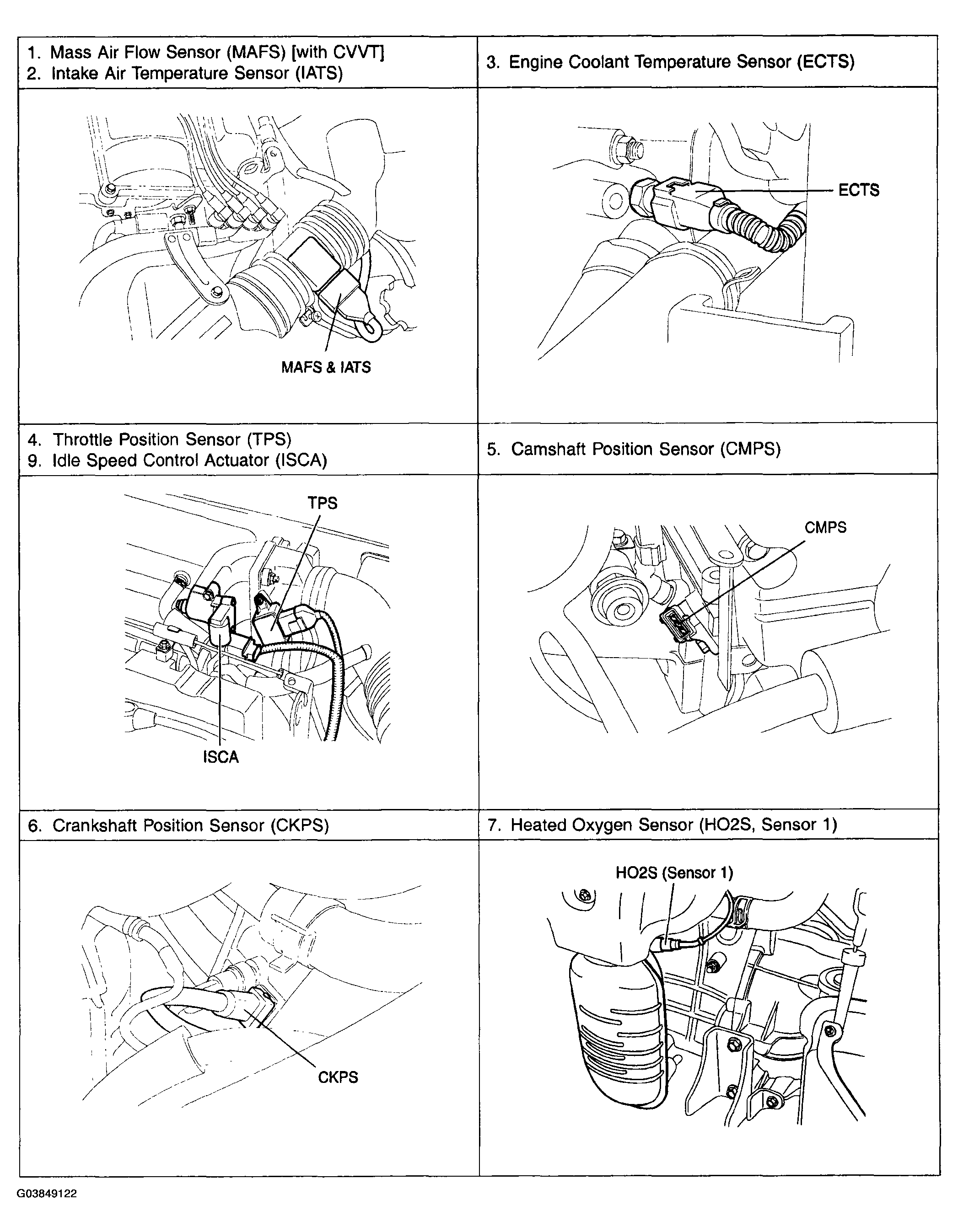

Fig 2: Identifying fuel system Components Location (2 Of 3)
G03849122Courtesy of HYUNDAI MOTOR CO.

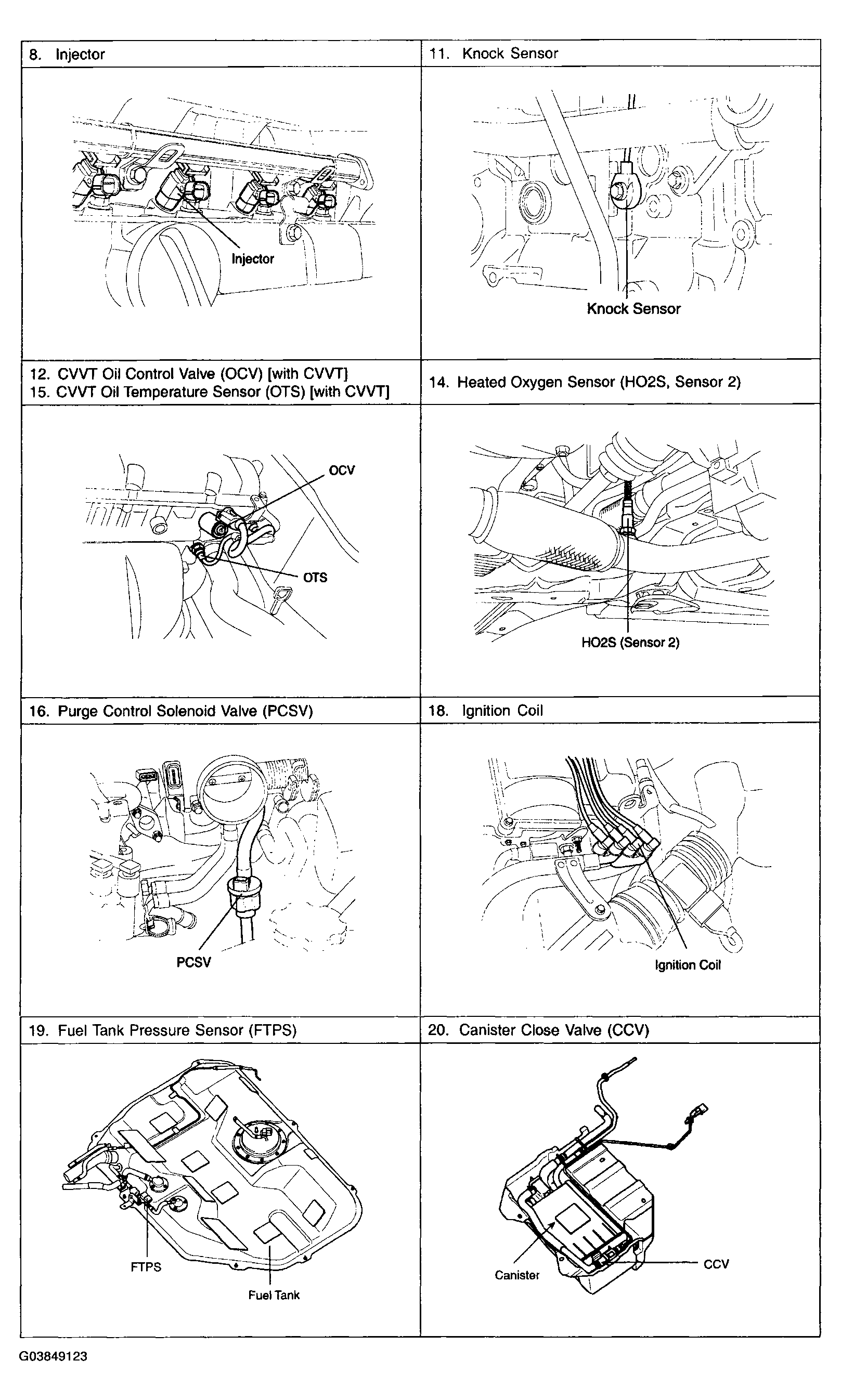

Fig 3: Identifying fuel system Components Location (3 Of 3)
G03849123Courtesy of HYUNDAI MOTOR CO.
