Circuit Diagram

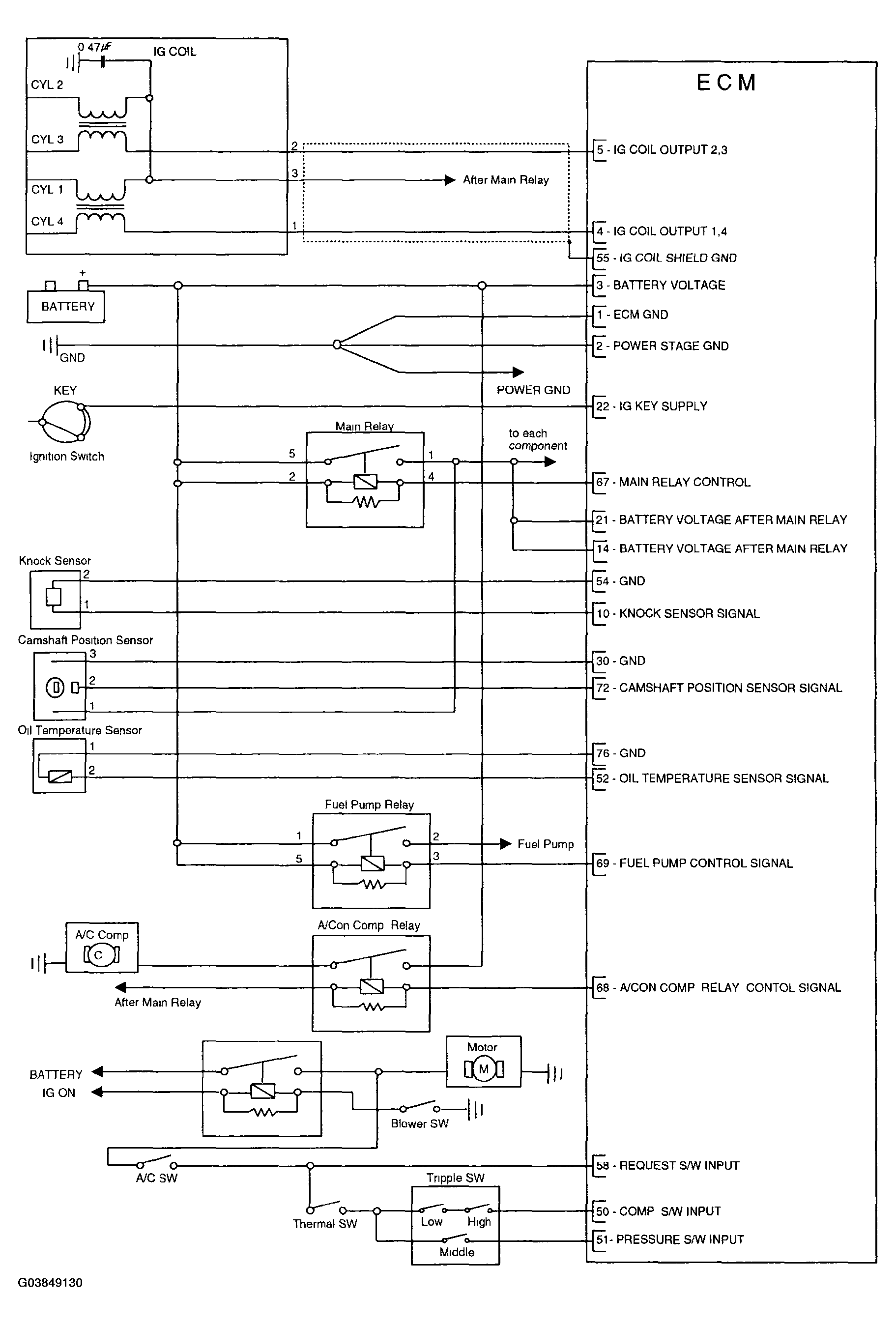

Fig 1: Circuit Diagram - Gasoline Engine Control System (1 Of 3)
G03849130Courtesy of HYUNDAI MOTOR CO.

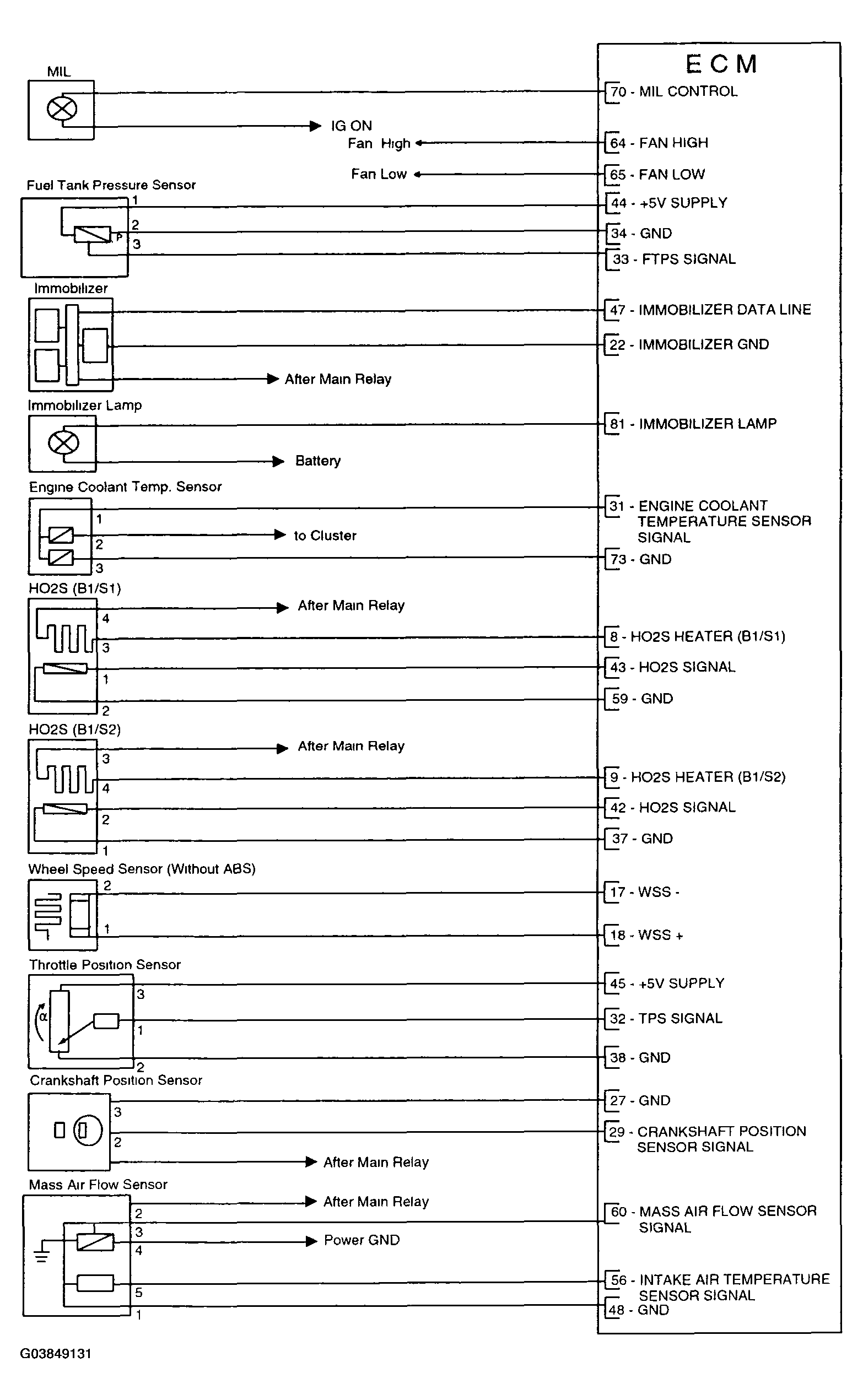

Fig 2: Circuit Diagram - Gasoline Engine Control System (2 Of 3)
G03849131Courtesy of HYUNDAI MOTOR CO.

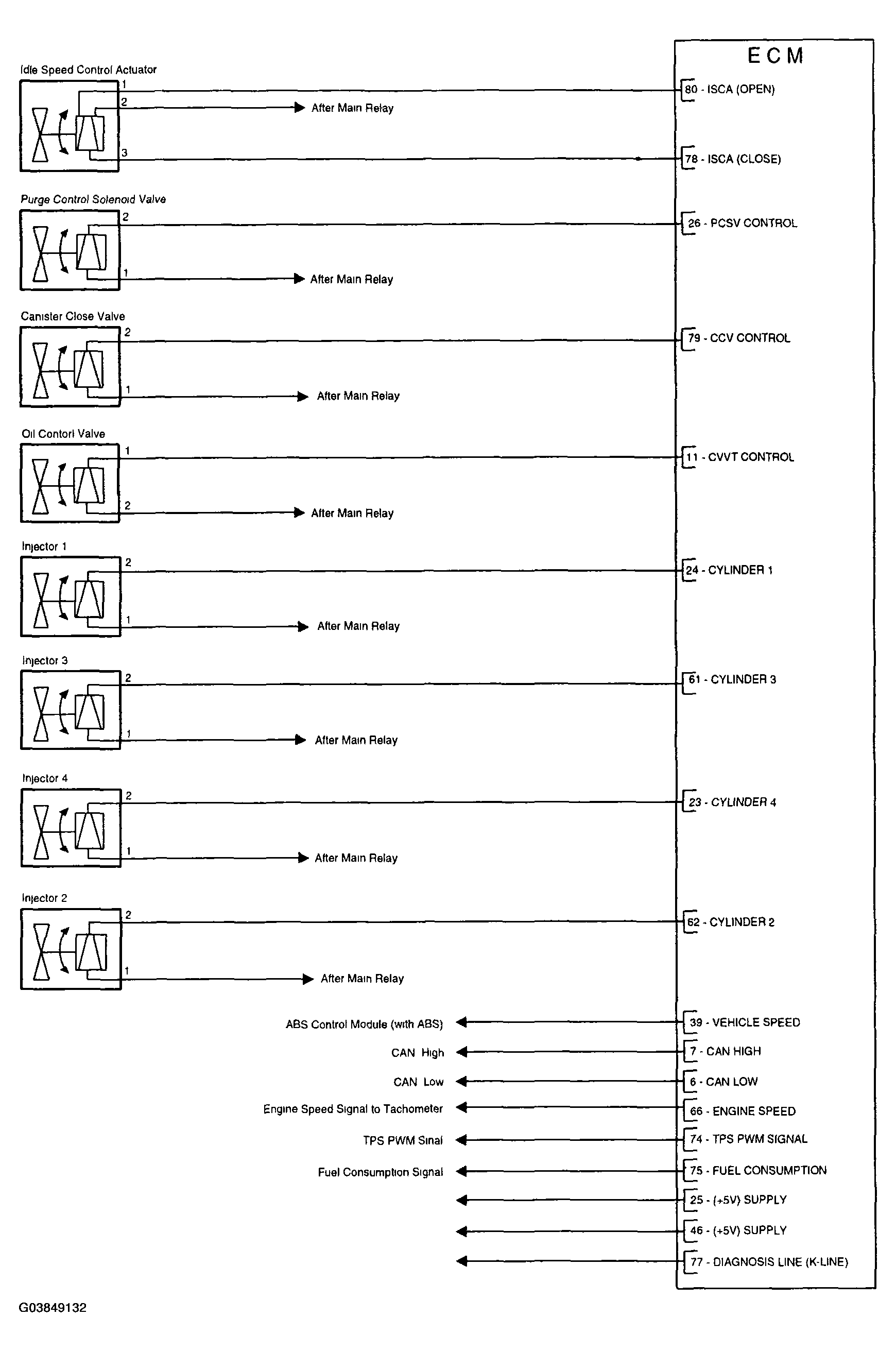

Fig 3: Circuit Diagram - Gasoline Engine Control System (3 Of 3)
G03849132Courtesy of HYUNDAI MOTOR CO.
