Special Service Tools

SPECIAL SERVICE TOOLS

Tool (Number and name) Illustration Application

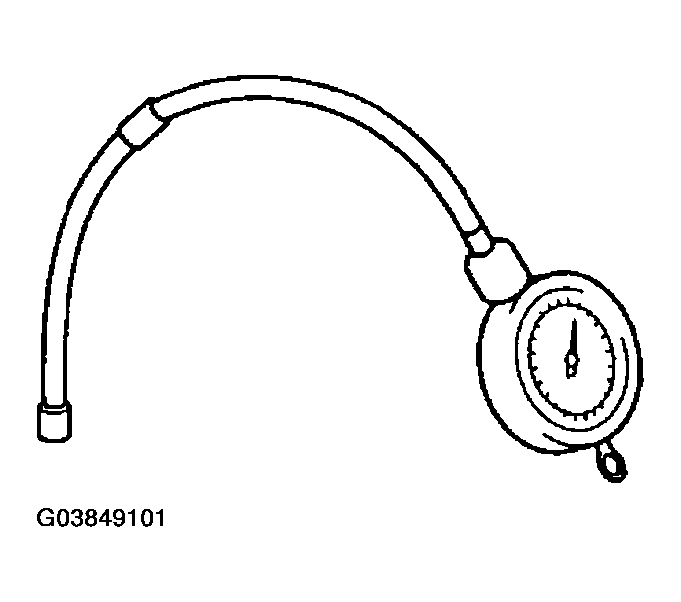

09353-24100
Fuel Pressure Gauge
G03849101Courtesy of HYUNDAI MOTOR CO.

 		 Measuring the fuel line pressure

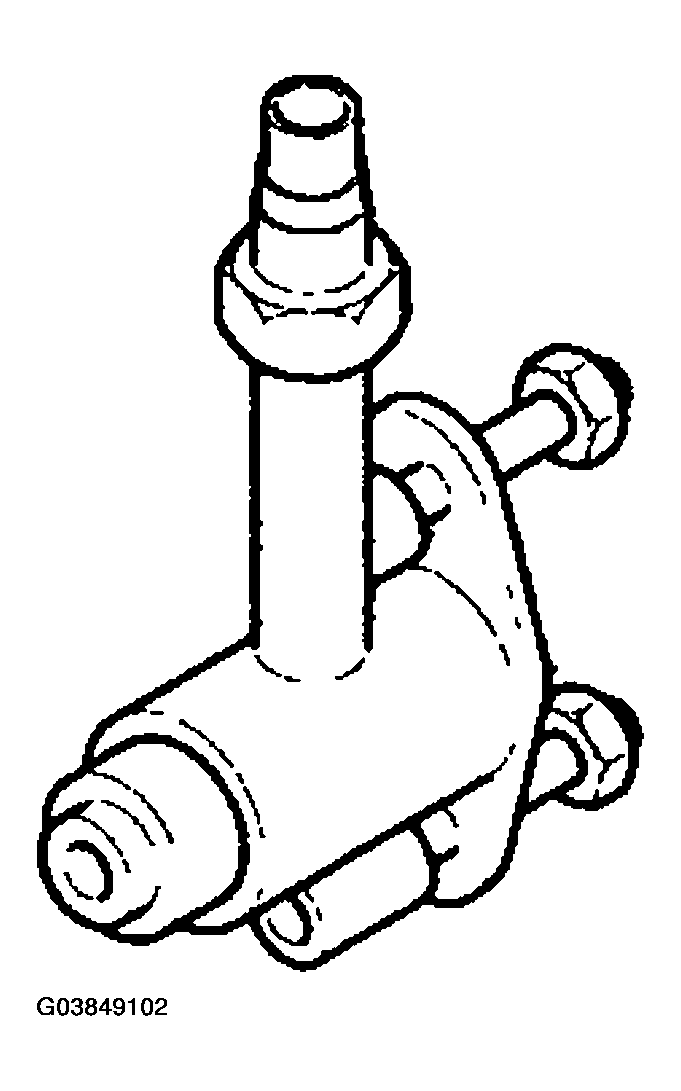

09353-38000
Fuel Pressure Gage Adapter
G03849102Courtesy of HYUNDAI MOTOR CO.

 		 Connection between the delivery pipe and fuel feed line

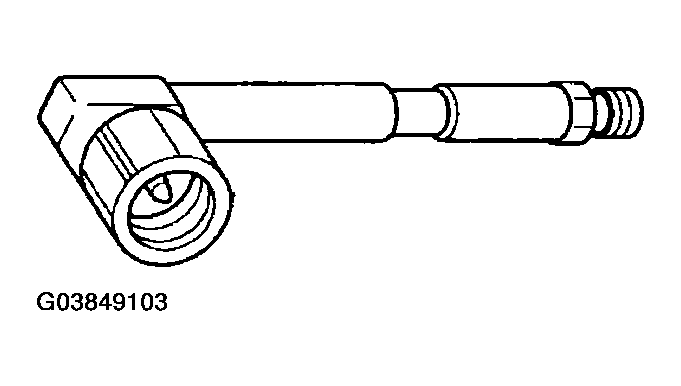

09353-24000
Fuel Pressure Gage Connector
G03849103Courtesy of HYUNDAI MOTOR CO.

 		 Connection between Fuel Pressure Gage (09353-24100) and Fuel Pressure Gage Adapter (09353-38000)
