Monitor SCANTOOL Data
- Check program for scantool is no problem and the latest version.
- Ignition "ON" & Engine "OFF".
- Connect Scan tool and clear the DTCs.

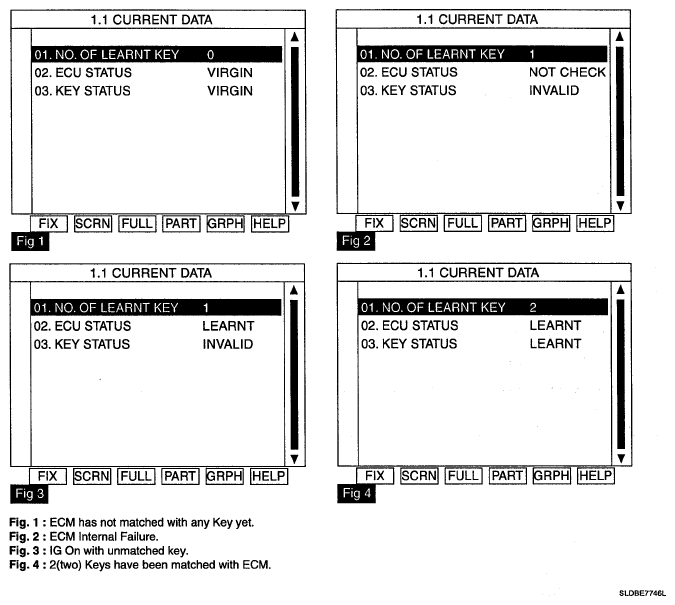

- If the DTCs are retrieved again, monitor "CURRENT DATA" to check No. of Learnt key, ECM and KEY status.
- Are both Key and ECM status learnt?
YES
- Fault is intermittent caused by poor contact in the SMARTRA (BCM) 's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "COMPONENT INSPECTION " procedure.
- Fault is intermittent caused by poor contact in the SMARTRA (BCM) 's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
