Alternator: Service and Repair

GENERATOR REPLACEMENT

1. Disconnect the battery negative terminal first, then the positive terminal.

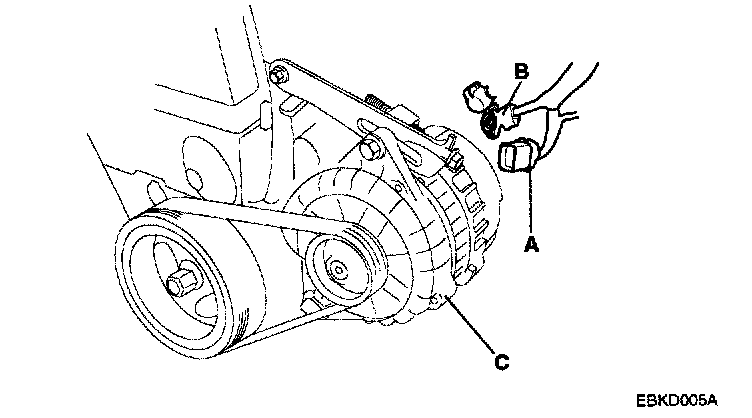

2. Disconnect the generator connector(A) and "B" terminal cable(B) from the generator(C).

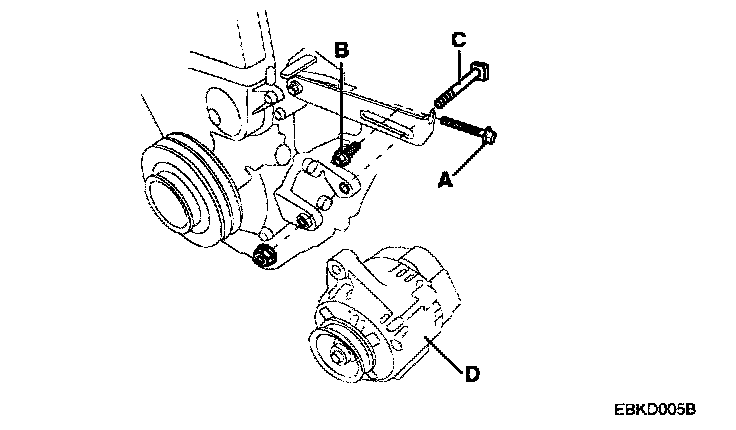

3. Remove the adjusting bolt(A) and mounting bolt(B), then remove the generator belt(C).




4. Pull out the through bolt(C), then remove the generator(D).
5. Installation is the reverse of removal.
6. Adjust the generator belt tension after installation.
