Charging System Test Procedure: Notes

Press ENTER to begin charging system test.

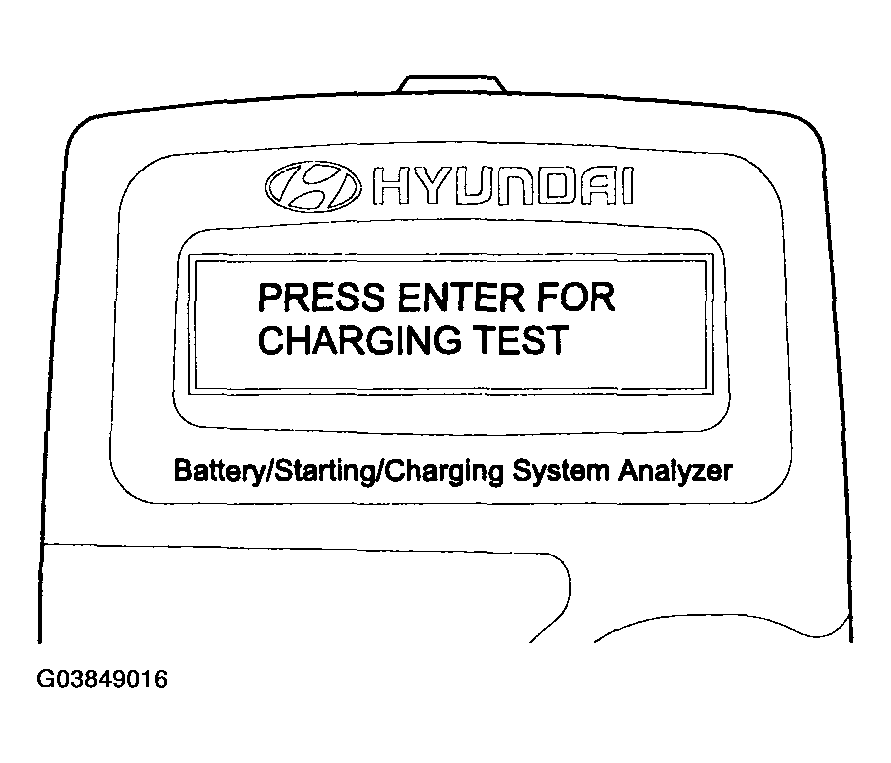

Fig 1: Pressing ENTER To Begin Charging System Test
Courtesy of HYUNDAI MOTOR CO.
If ENTER button is pressed, the tester displays the actual voltage of alternator. Press ENTER to test the charging system.

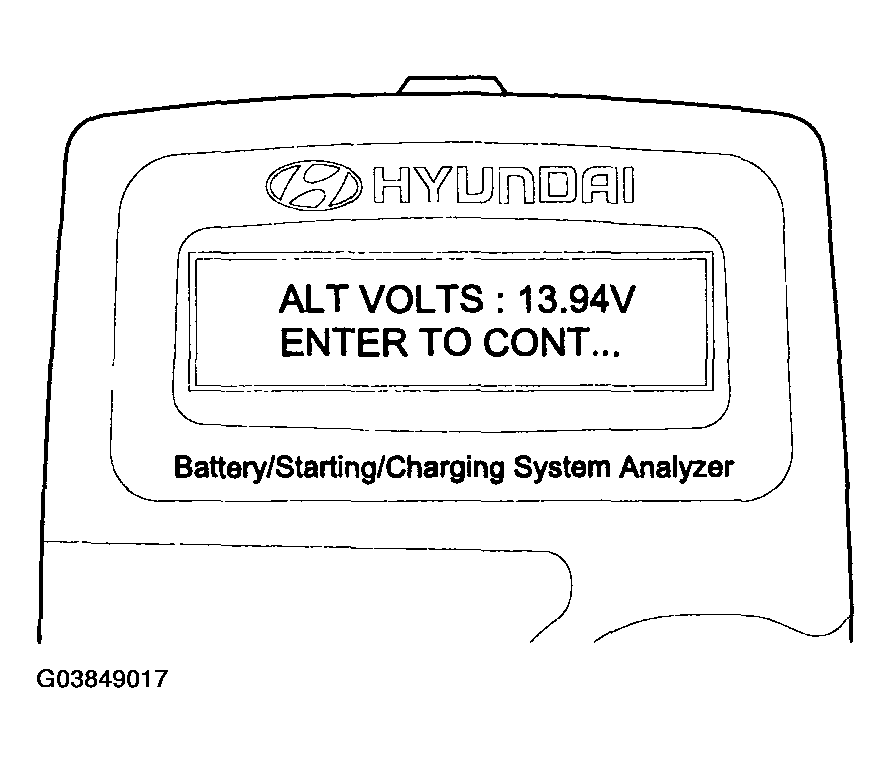

Fig 2: Pressing ENTER To Test Charging System
Courtesy of HYUNDAI MOTOR CO.
Turn off all electrical load and rev engine for 5 seconds.

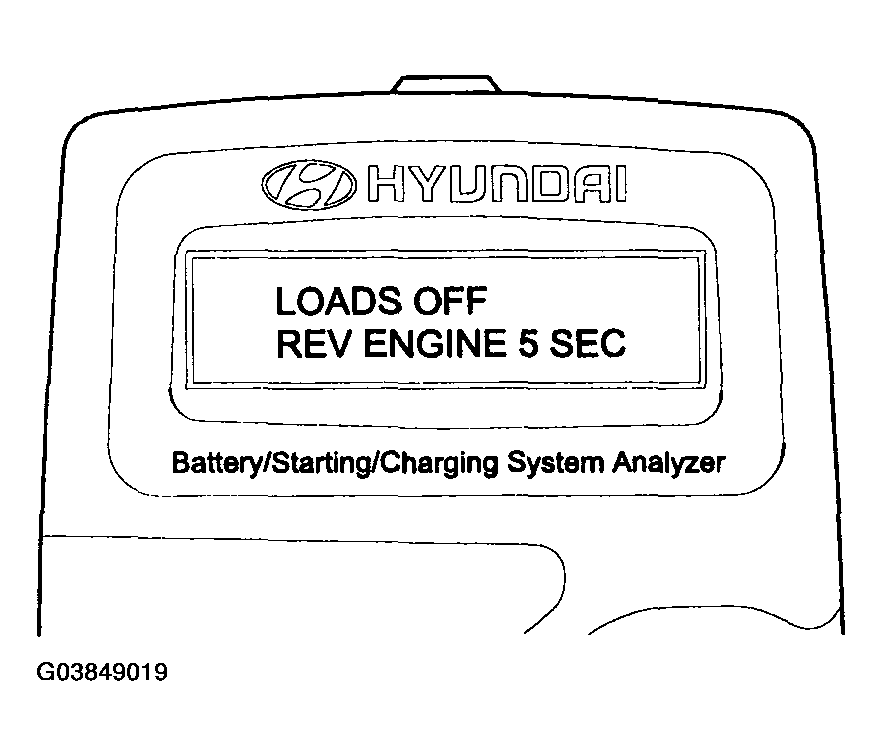

Fig 3: Turning Off All Electrical Load And Rev Engine For 5 Seconds (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Press ENTER.

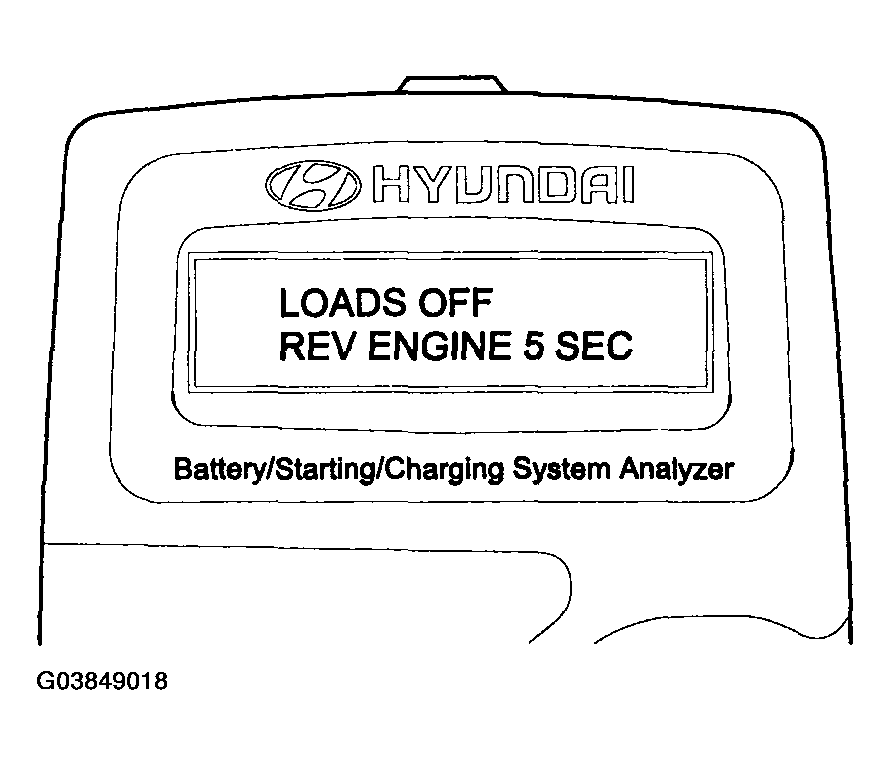

Fig 4: Turning Off All Electrical Load And Rev Engine For 5 Seconds (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
The MICRO 570 analyzer charging system output at idle for comparison to other readings.

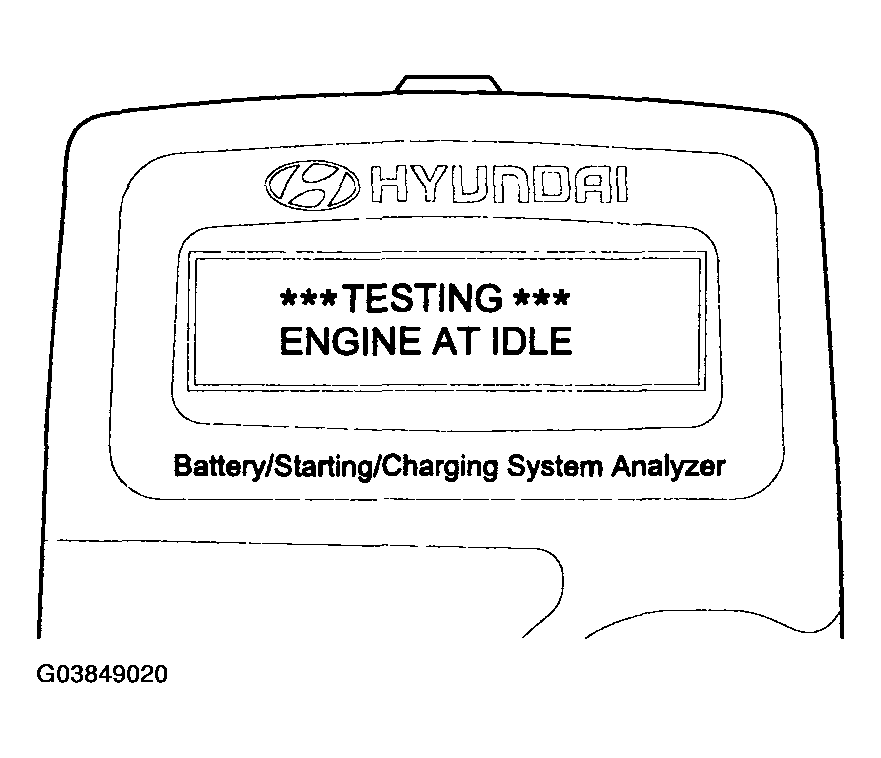

Fig 5: Identifying MICRO 570 Analyzer Charging System
Courtesy of HYUNDAI MOTOR CO.
Take relevant action according to the test results by referring to the table below after shutting off the engine and disconnect the tester clamps from the battery.

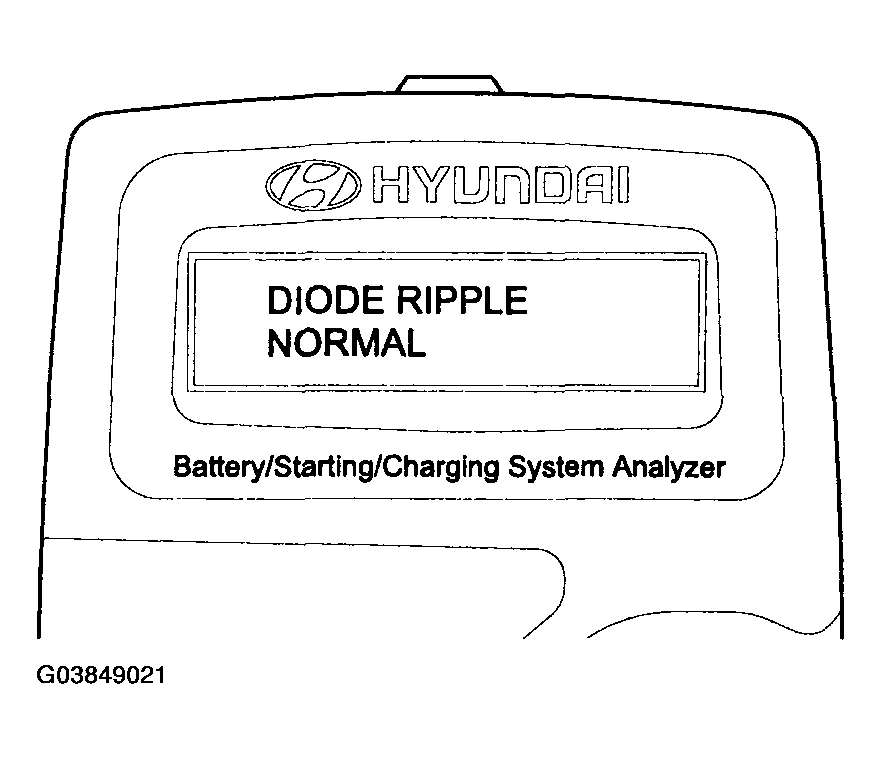

Fig 6: Showing Diode Ripple Normal
Courtesy of HYUNDAI MOTOR CO.
