SRS Control Module: Removal

  1. Remove ignition key from the vehicle.
  2. Disconnect the negative (-) cable from battery and wait for at least three minutes.
  3. Disconnect the DAB, PAB, SAB, and BPT connectors.
  4. Remove the floor console. (Refer to BUMPER )
  5. Disconnect the SRSCM harness connector from the SRSCM.

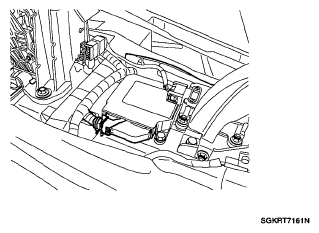

    Fig 1: Identifying SRSCM Harness Connector
    G05344299Courtesy of HYUNDAI MOTOR CO.
  6. Remove the SRSCM mounting nuts (3EA) from the SRSCM, then remove the SRSCM.

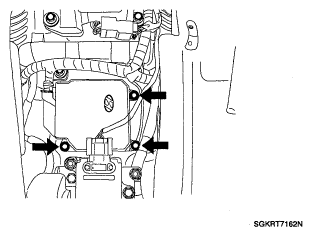

    Fig 2: Locating SRSCM Mounting Nuts
    G05344300Courtesy of HYUNDAI MOTOR CO.
