Home >> Hyundai >> 2007 >> Tiburon SE >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> Cruise Control System >> Control System For Cruise >> Circuit Diagram

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

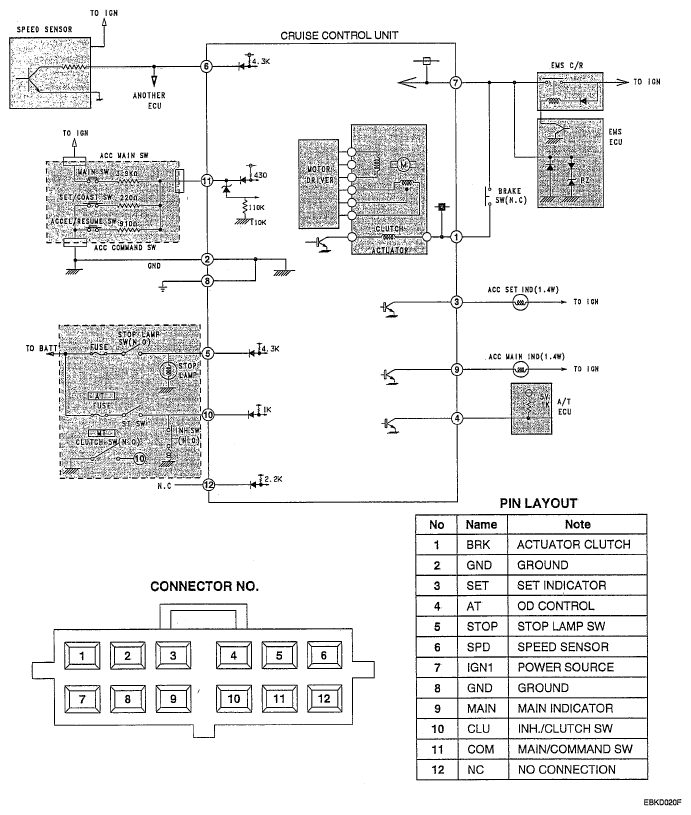

Circuit Diagram

G05344188

Courtesy of HYUNDAI MOTOR CO.
