Body & Frame: Windows: Exterior: Mirror: Disassembly

CAUTION: Wear gloves to remove and install the mirror holder.

Insert a flat tip screwdriver between the outside rear view mirror holder and mirror assembly.

Fig 1: Inserting Flat Tip Screwdriver Between Outside Rear View Mirror Holder & Mirror Assembly
Courtesy of HYUNDAI MOTOR CO.

CAUTION: When prying with a flat tip screwdriver, wrap it with a shop towel to prevent damage.
Remove the outside rear view mirror actuator from outside rear view mirror housing.

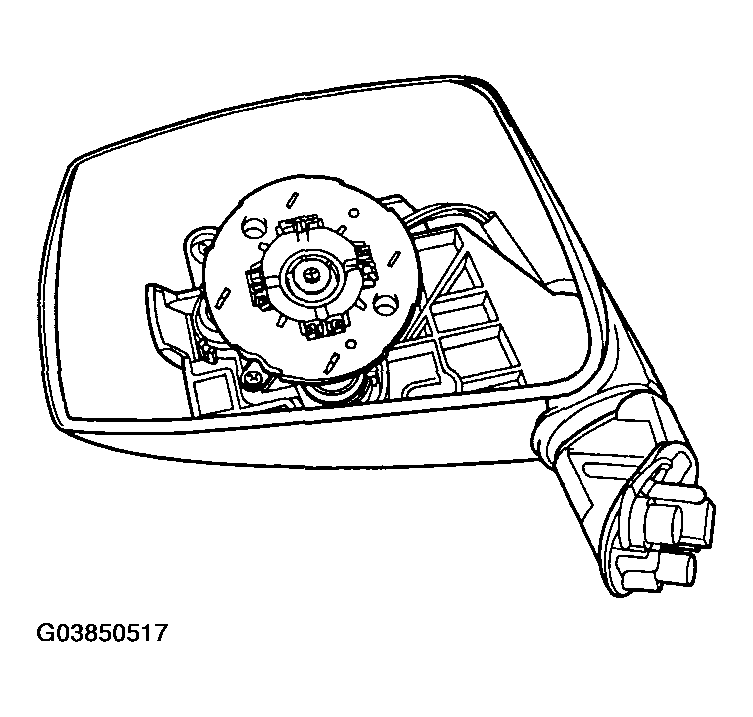

Fig 2: Removing Outside Rear View Mirror Actuator From Outside Rear View Mirror Housing
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
