Power Window Sub Switch

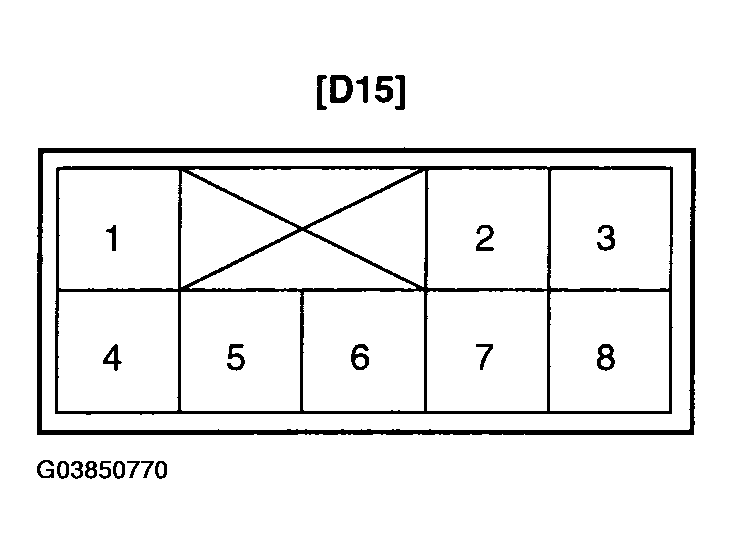

Fig 1: Identifying Power Window Sub Switch Connector Terminals
G03850770Courtesy of HYUNDAI MOTOR CO.

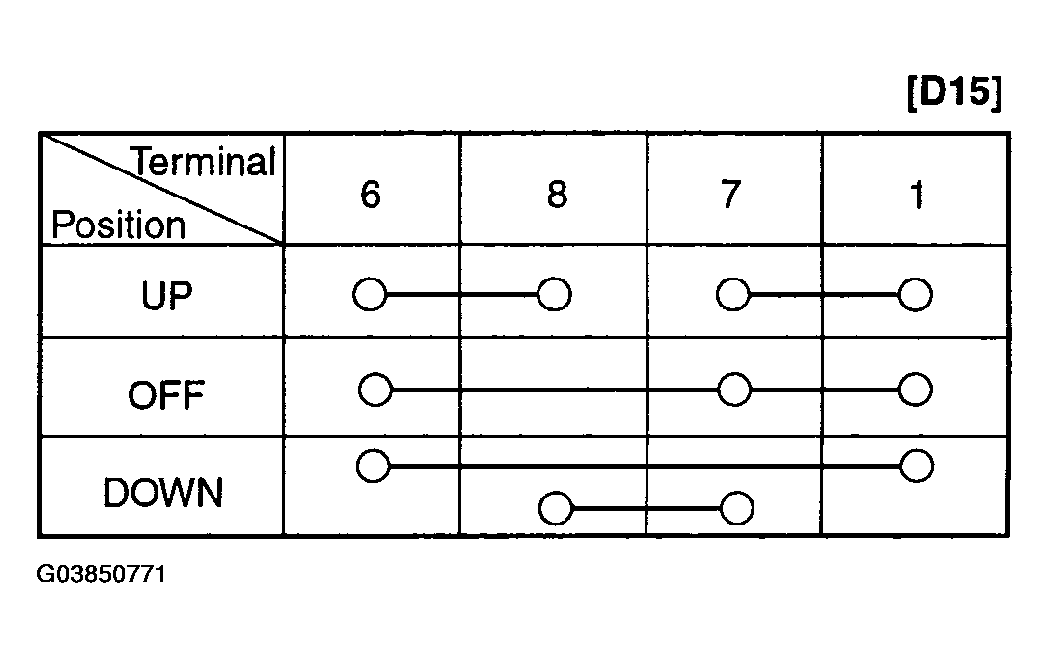

Fig 2: Power Window Sub Switch Continuity Chart
G03850771Courtesy of HYUNDAI MOTOR CO.
