Component Inspection

Measure resistance between terminals 3 and 4 of the sensor connector (Component side).
Specification: 3~4 Ω [at 20~24°C (68~75°F)]

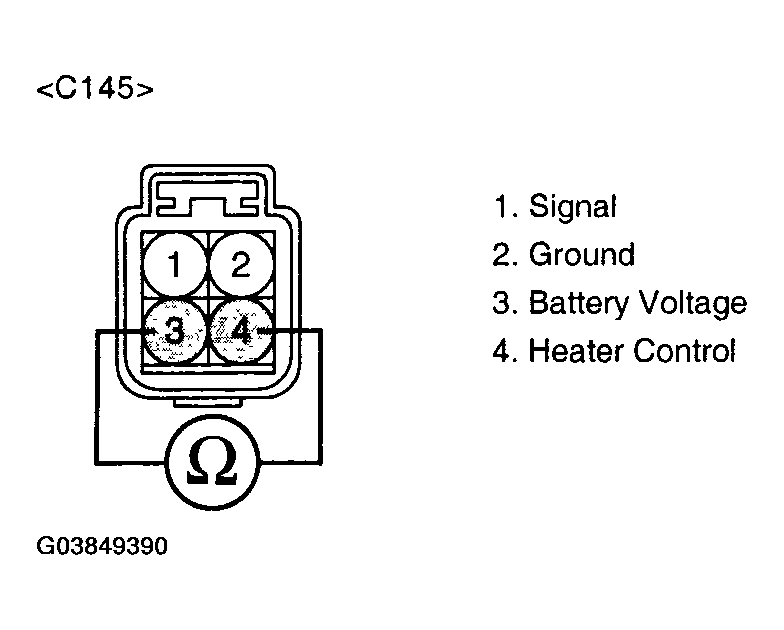

Fig 1: Measuring Resistance Between Terminals 3 And 4 Of Sensor Connector (Component Side)
Courtesy of HYUNDAI MOTOR CO.
Is resistance within the specification?
YES:
- Check for poor connection between ECM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO:
- Check HO2S for contamination, deterioration, or damage. Substitute with a known-good HO2S and check for proper operation. If the problem is corrected, replace HO2S and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
