Component Inspection

  1. Ignition "OFF"
  2. Measure resistance between terminals 1 and 2 of the IAT sensor connector (Component side).

    Specification:

    RESISTANCE SPECIFICATION

    Temperature Resistance(kΩ)
    20°C (68°F) Approx. 2.22 ~ 2.82
    40°C (104°F) Approx. 1.06 ~ 1.31
    80°C (176°F) Approx. 0.29 ~ 0.36

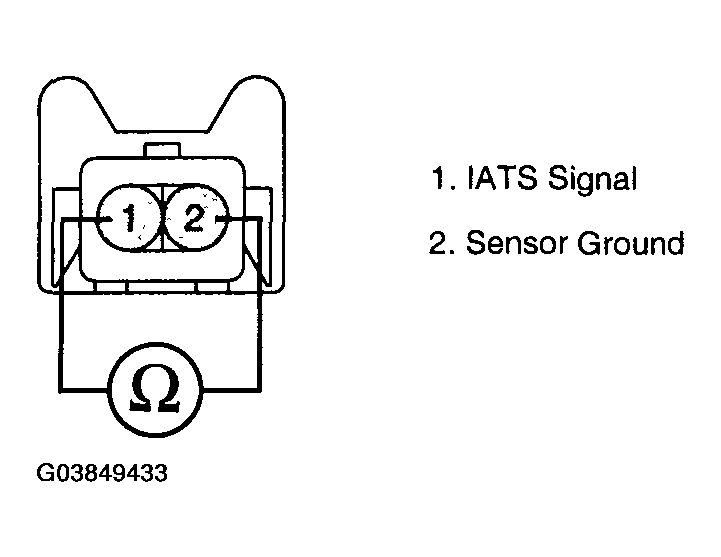

    Fig 1: Measuring Resistance Between Terminals 1 And 2 Of IAT Sensor Connector (Component Side)
    G03849433Courtesy of HYUNDAI MOTOR CO.
  3. Is resistance within the specification?

    YES:

    • Check for poor connection between ECM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO:

    • Check IAT sensor for contamination, deterioration, or damage. Substitute with a known-good IAT sensor and check for proper operation. If the problem is corrected, replace IAT sensor and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
