Component Inspection

  1. Disconnect ECTS connector
  2. Measure resistance between terminals 1 and 3 of the ECT sensor connector (Component side)

    Specification:

    ECTS RESISTANCE SPECIFICATION

    Temperature Resistance(kΩ)
    20°C (68°F) Approx. 2.31 ~ 2.59
    40°C (104°F) Approx. 1.15
    80°C (176°F) Approx. 0.32

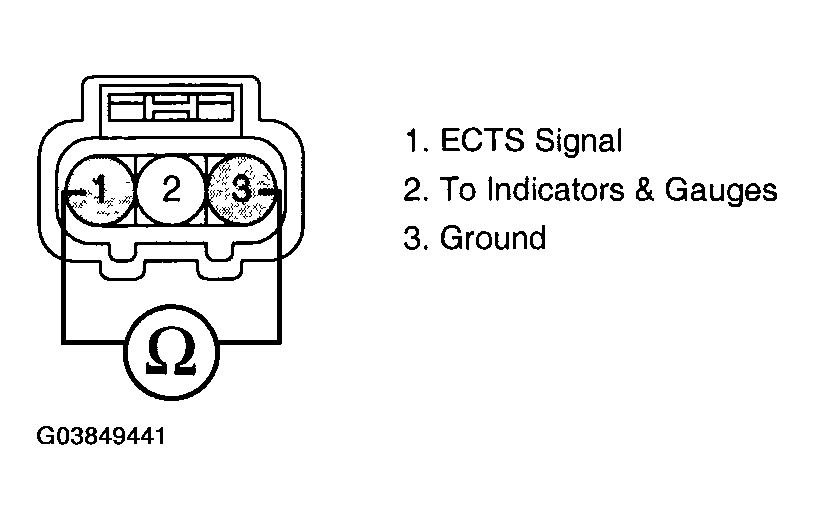

    Fig 1: Measuring Resistance Between Terminals 1 And 3 Of ECT Sensor Connector (Component Side)
    G03849441Courtesy of HYUNDAI MOTOR CO.
  3. Is resistance within the specification?

    YES:

    • Check for poor connection between ECM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO:

    • Check ECTS for contamination, deterioration, or damage. Substitute with a known-good ECTS and check for proper operation. If the problem is corrected, replace ECTS and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
