Component Inspection

Warm up the engine to normal operating temperature and check that HO2S signal is active.
Connect Scan Tool and monitor the "RR OXYGEN SNSR-B1" parameter on the Scan Tool data list.
Test Condition: Ignition "ON" & Engine "ON" & In Idle ("Closed Loop") condition

Specification: Above 0.6V

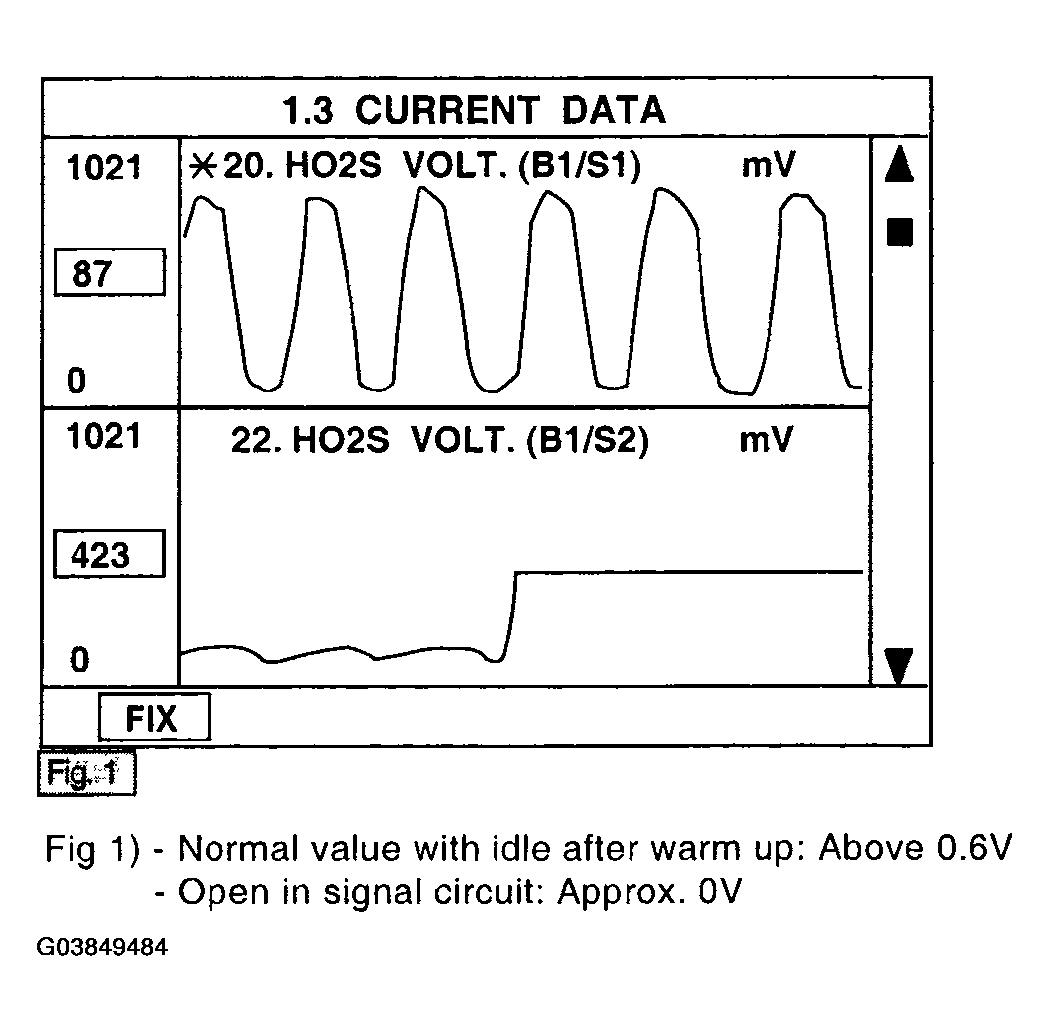

Fig 1: Monitoring "RR OXYGEN SNSR-B1" Parameter On Scan Tool Data List
Courtesy of HYUNDAI MOTOR CO.
Is sensor display within the specification?
YES:
- Check for poor connection between ECM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO:
- Check HO2S for contamination, deterioration, or damage. Substitute with a known-good HO2S and check for proper operation. If the problem is corrected, replace HO2S and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
