Component Inspection

Ignition "OFF".
Disconnect CCV connector.
Measure resistance between terminals 1 and 2 of the CCV connector (Component side).
Specification: Approx. 23.9~26.9Ω at 20°C (68°F)

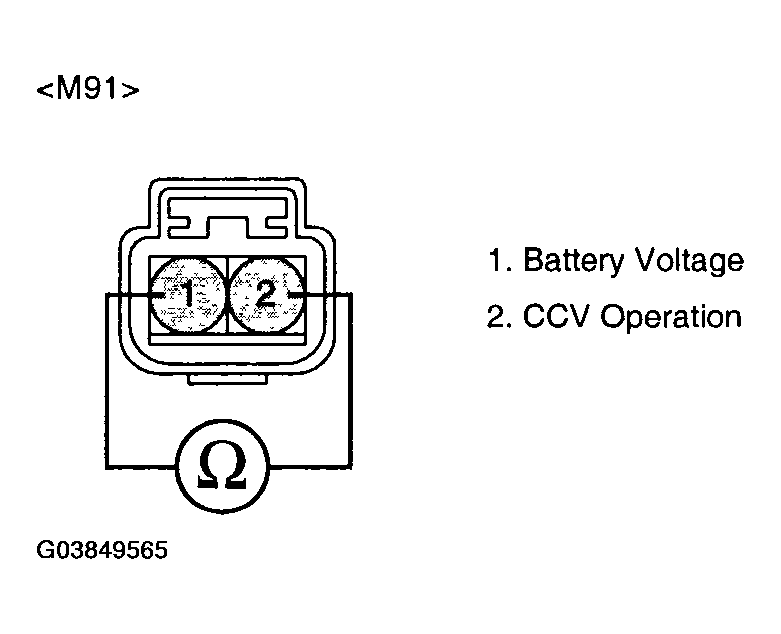

Fig 1: Measuring Resistance Between Terminals 1 And 2 Of CCV Connector (Component Side)
Courtesy of HYUNDAI MOTOR CO.
Is resistance within the specification?
YES:
- Go to next step below.
NO:
- Check CCV for contamination, deterioration, or damage. Substitute with a known-good CCV and check for proper operation. If the problem is corrected, replace CCV and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
