Signal Circuit Inspection

Ignition "ON" & Engine "OFF".
Measure voltage between terminal 3 of the FTPS harness connector and chassis ground
Specification: Approx. 0V

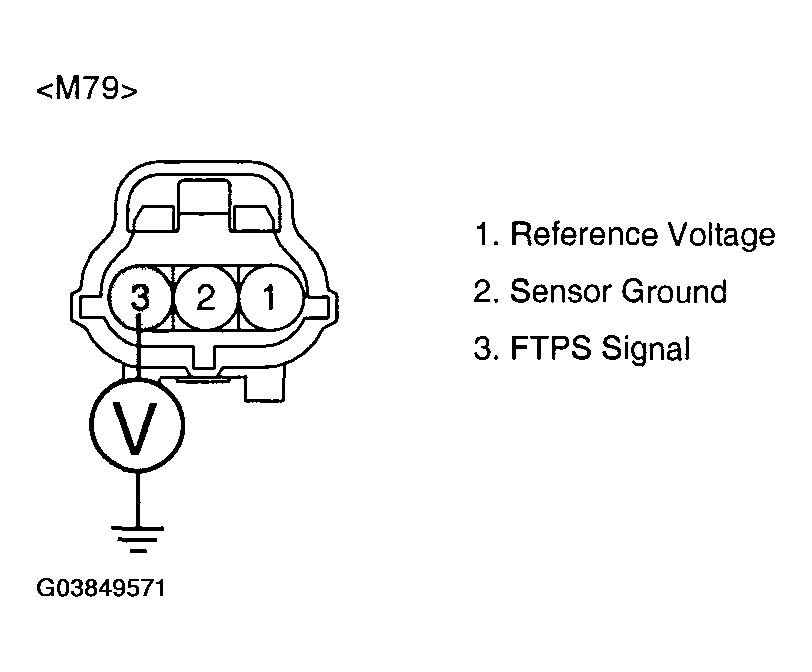

Fig 1: Measuring Voltage Between Terminal 3 Of FTPS Harness Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR CO.
Is voltage within the specification?
YES:
- Go to FUEL TANK PRESSURE SENSOR INSPECTION .
NO:
- Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
