Battery Test Procedure: Notes

Connect the tester to the battery.
- Red clamp to battery positive (+) terminal.
- Black clamp to battery negative (-) terminal.

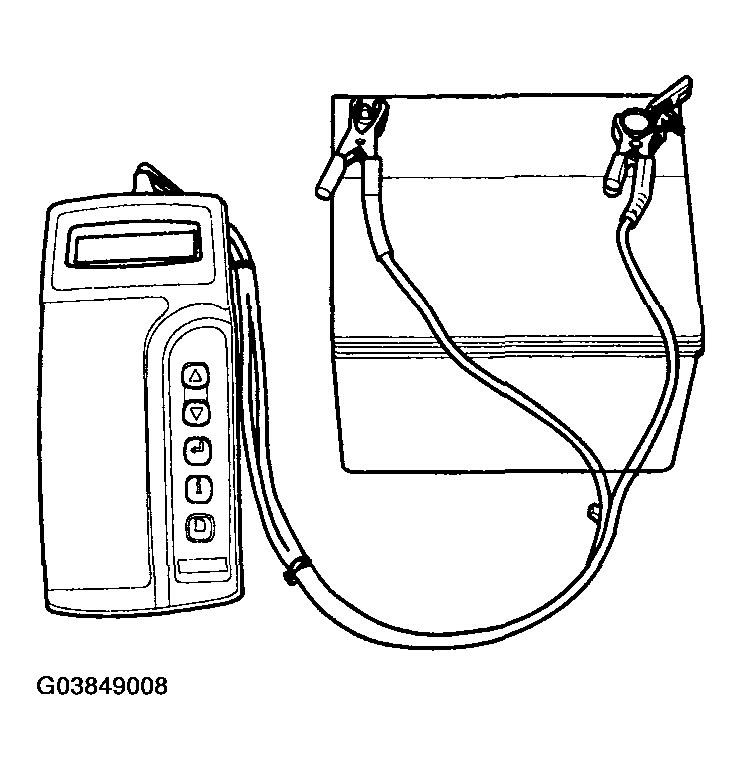

  Fig 1: Connecting Tester To Battery
  Courtesy of HYUNDAI MOTOR CO.

  CAUTION: Connect clamps securely. If "CHECK CONNECTION" message is displayed on the screen, reconnect clamps securely.
The tester will ask if the battery is connected "IN A VEHICLE" or "OUT OF A VEHICLE".
Make your selection by pressing the arrow buttons; then press ENTER.

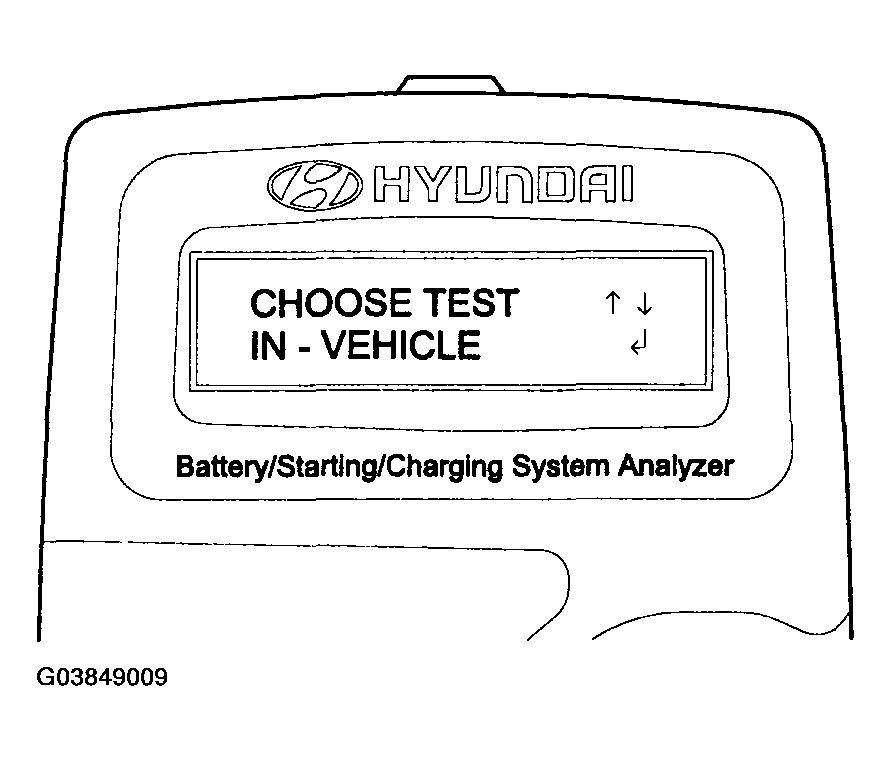

Fig 2: Pressing Arrow Buttons
Courtesy of HYUNDAI MOTOR CO.
Choose either CCA or CCP and press the ENTER button.

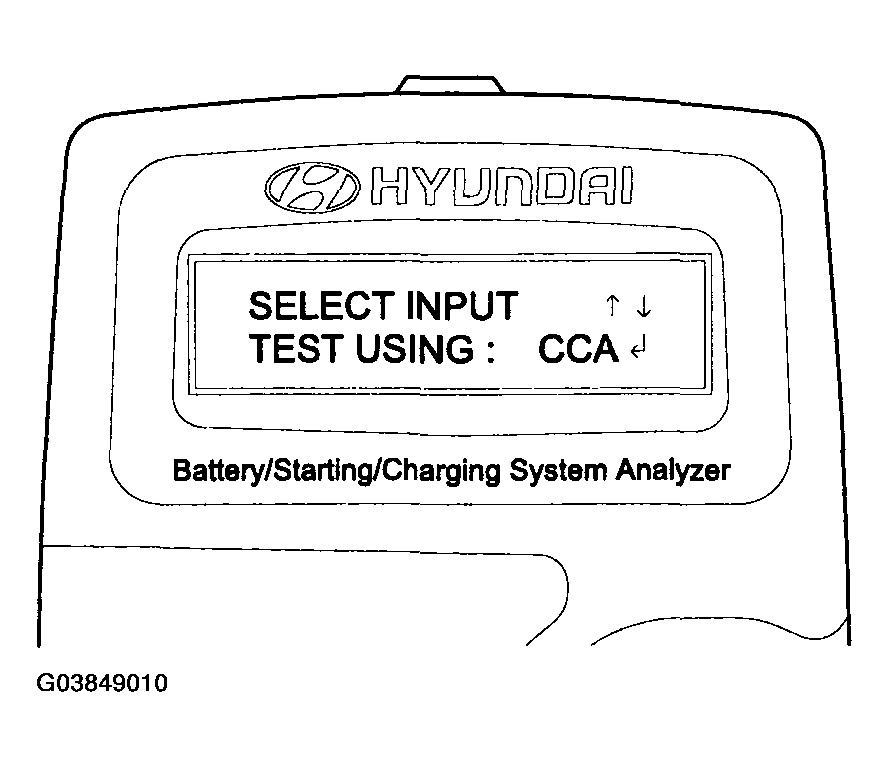

Fig 3: Choosing Either CCA Or CCP
Courtesy of HYUNDAI MOTOR CO.
NOTE:
- CCA: Cold cranking amps, is an SAE specification for cranking battery at 0°F (-18°C).
- CCP: Cold cranking power, is an SAE specification for Korean manufacturer's for cranking batteries at 0°F (-18°C)
Set the CCA value displayed on the screen to the CCA value marked on the battery label by pressing up and down buttons and press ENTER.

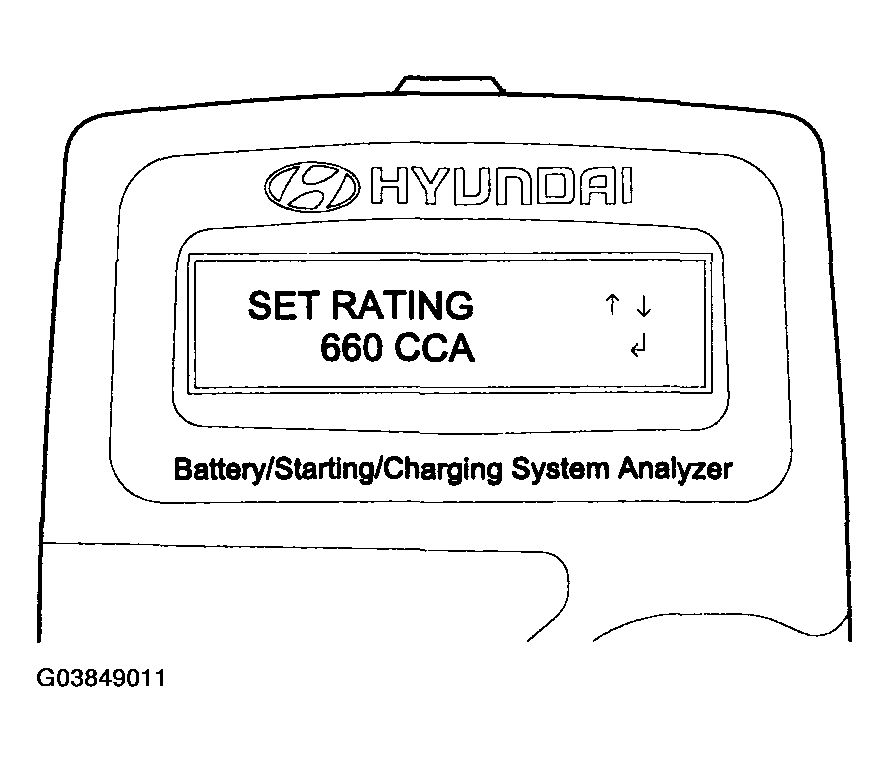

Fig 4: Setting CCA Value
Courtesy of HYUNDAI MOTOR CO.

NOTE: The battery ratings (CCA) displayed on the tester must be identical to the ratings marked on the battery label.
The tester (Micro 570) displays battery test results including voltage and battery ratings.
A relevant action must be taken according to the test results by referring to the battery test results as shown in Fig 5.

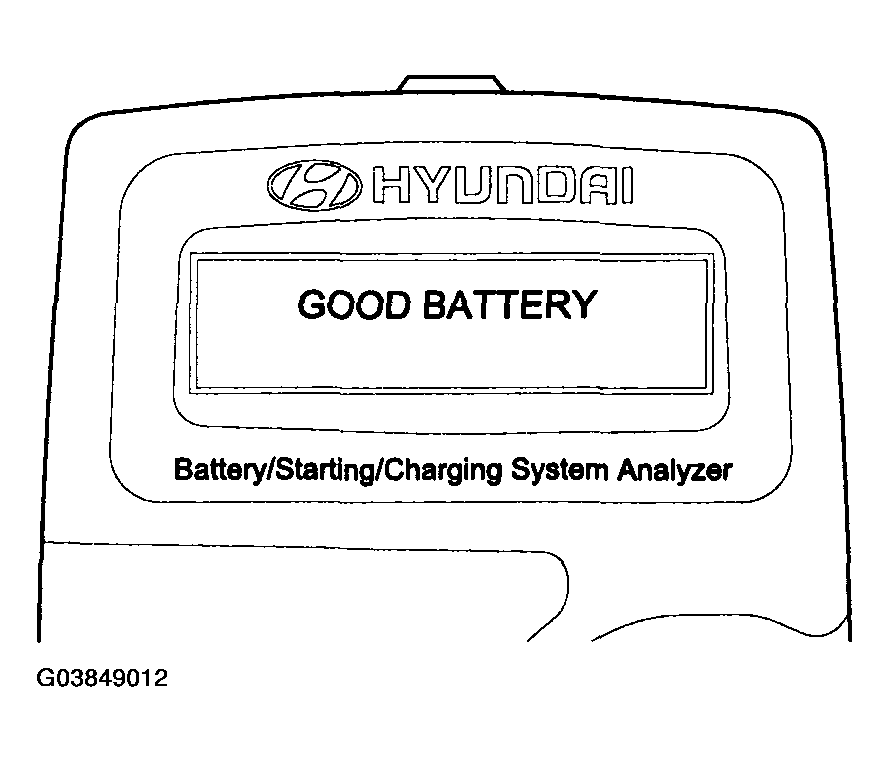

Fig 5: Showing Battery Result
Courtesy of HYUNDAI MOTOR CO.
To conduct starter test, continuously, press ENTER.
