Starter Test Procedure: Notes

After the battery test, press ENTER immediately for the starter test.

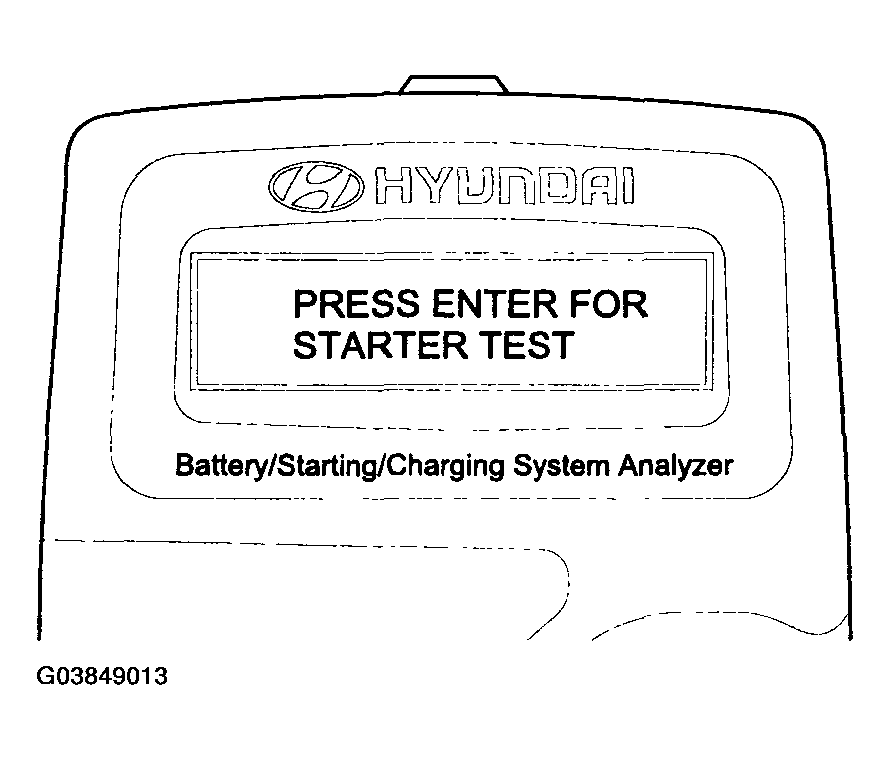

Fig 1: Pressing Enter Immediately For Starter Test
Courtesy of HYUNDAI MOTOR CO.
After pressing ENTER key, start the engine.

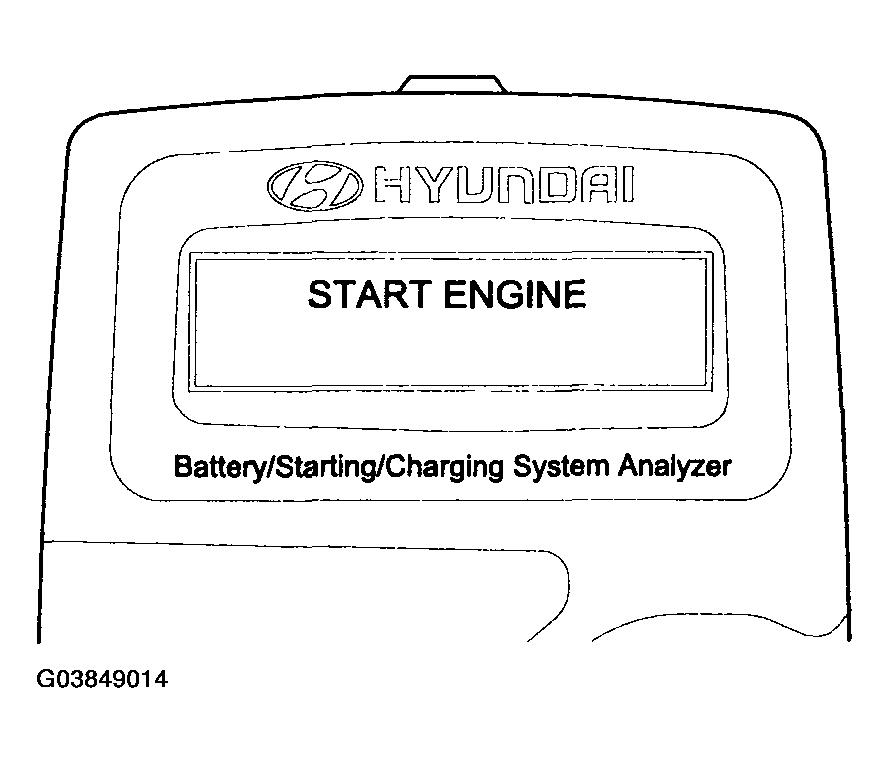

Fig 2: Pressing Enter Key Start Engine
Courtesy of HYUNDAI MOTOR CO.
Cranking voltage and starter test results will be displayed on the screen.
Take relevant action according to the test results by referring to the starter test results as given below.

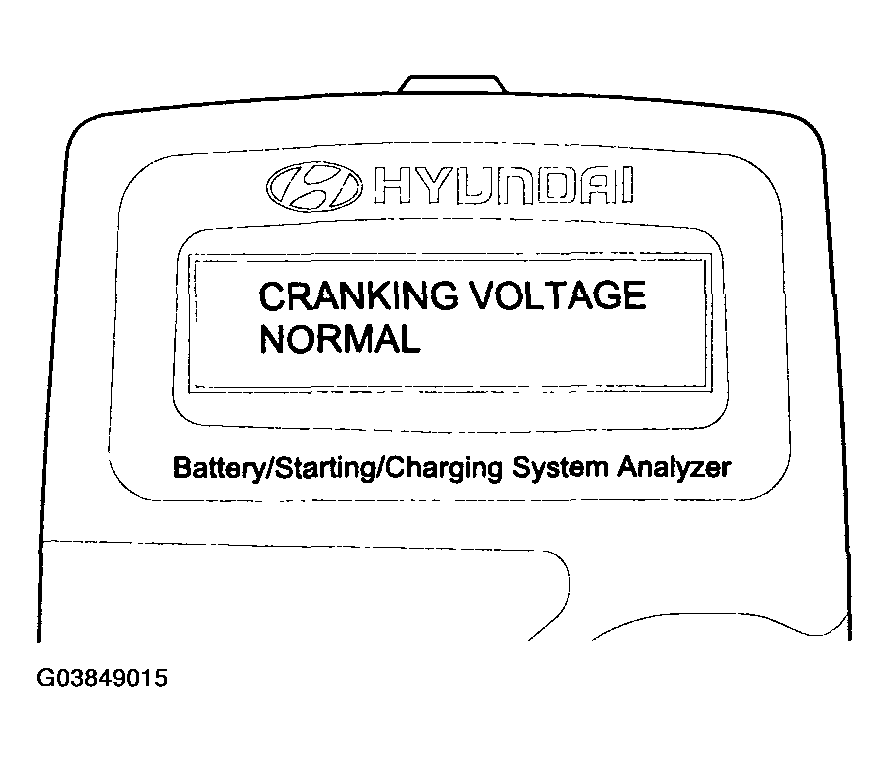

Fig 3: Displaying Cranking Voltage And Starter Test Results
Courtesy of HYUNDAI MOTOR CO.
To continue charging system test, press ENTER.
