General Specifications

BRAKE SYSTEMS

GENERAL SPECIFICATIONS

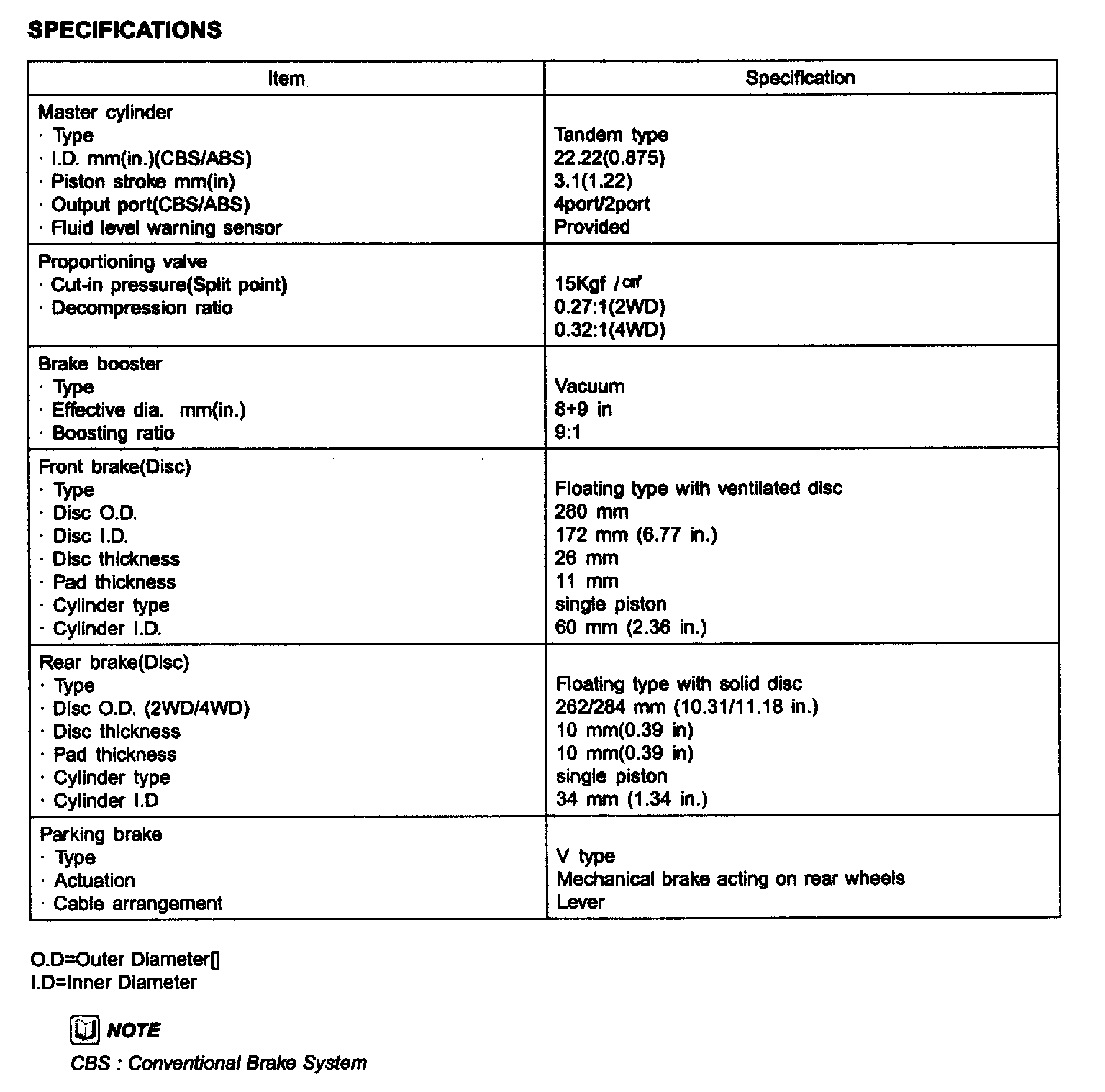

SPECIFICATIONS:

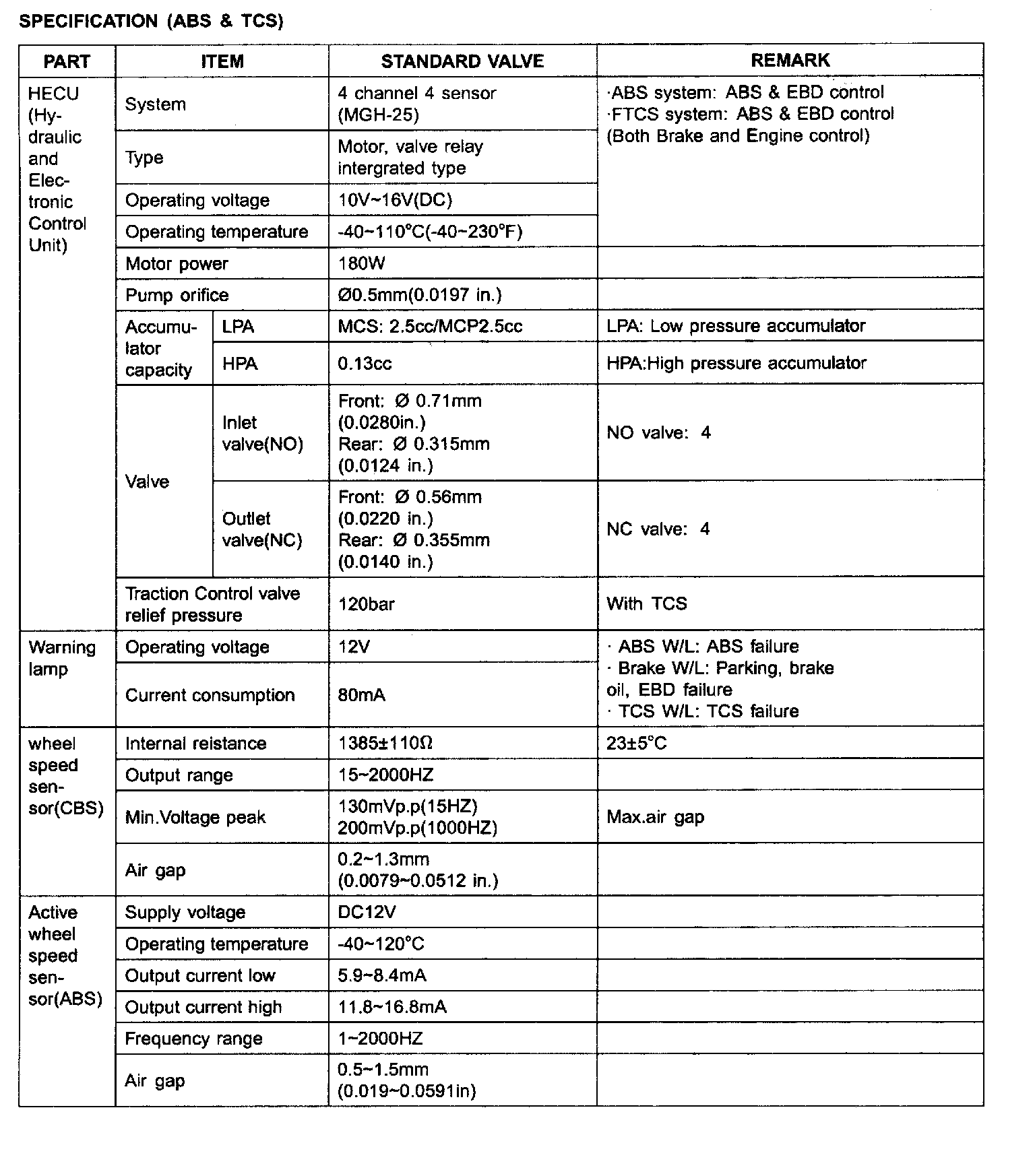

SPECIFICATION (ABS & TCS)

SPECIFICATION (ABS & TCS):

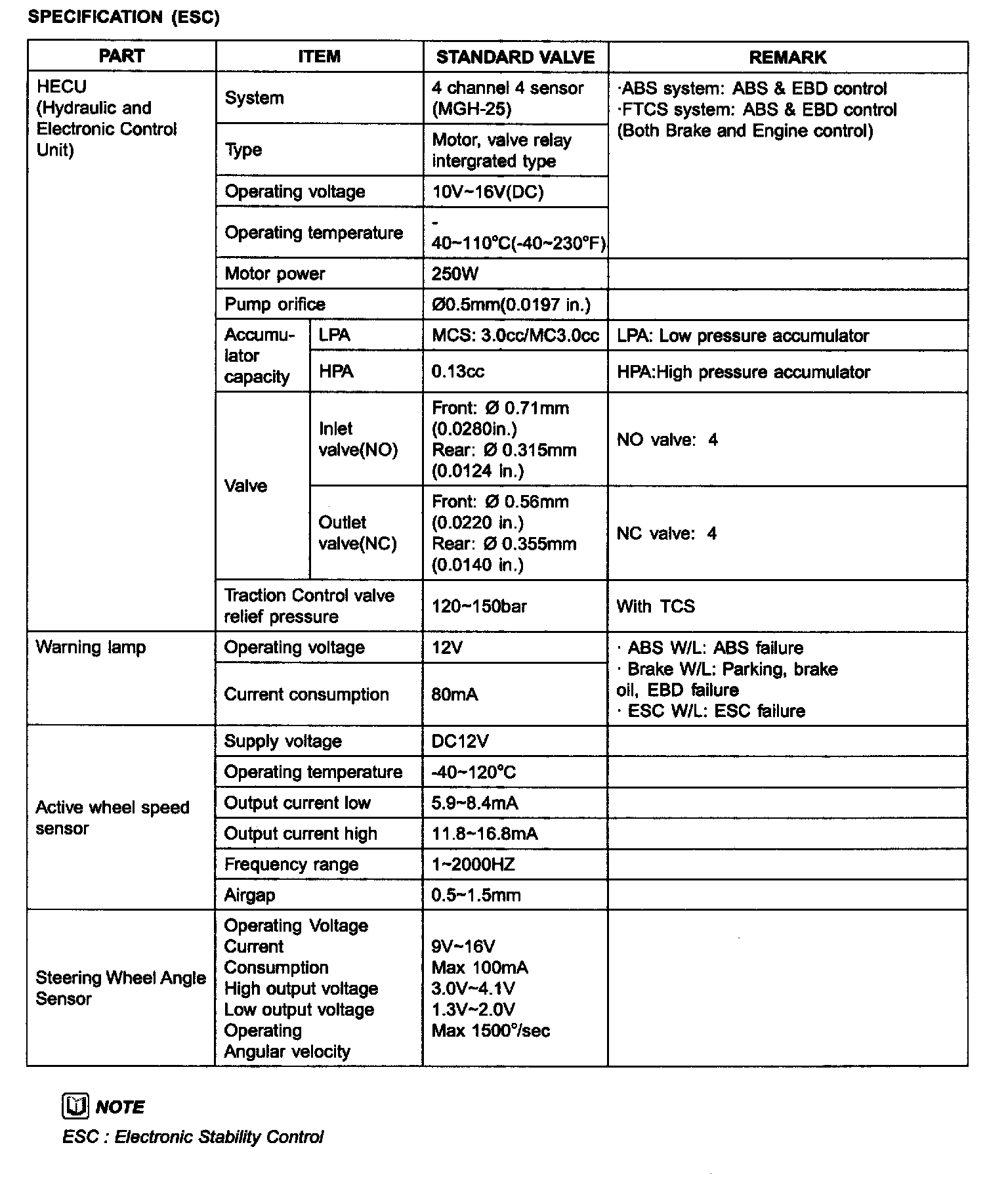

SPECIFICATION (ESC)

SPECIFICATION (ESC):
