Installation

REAR DIFFERENTIAL CARRIER

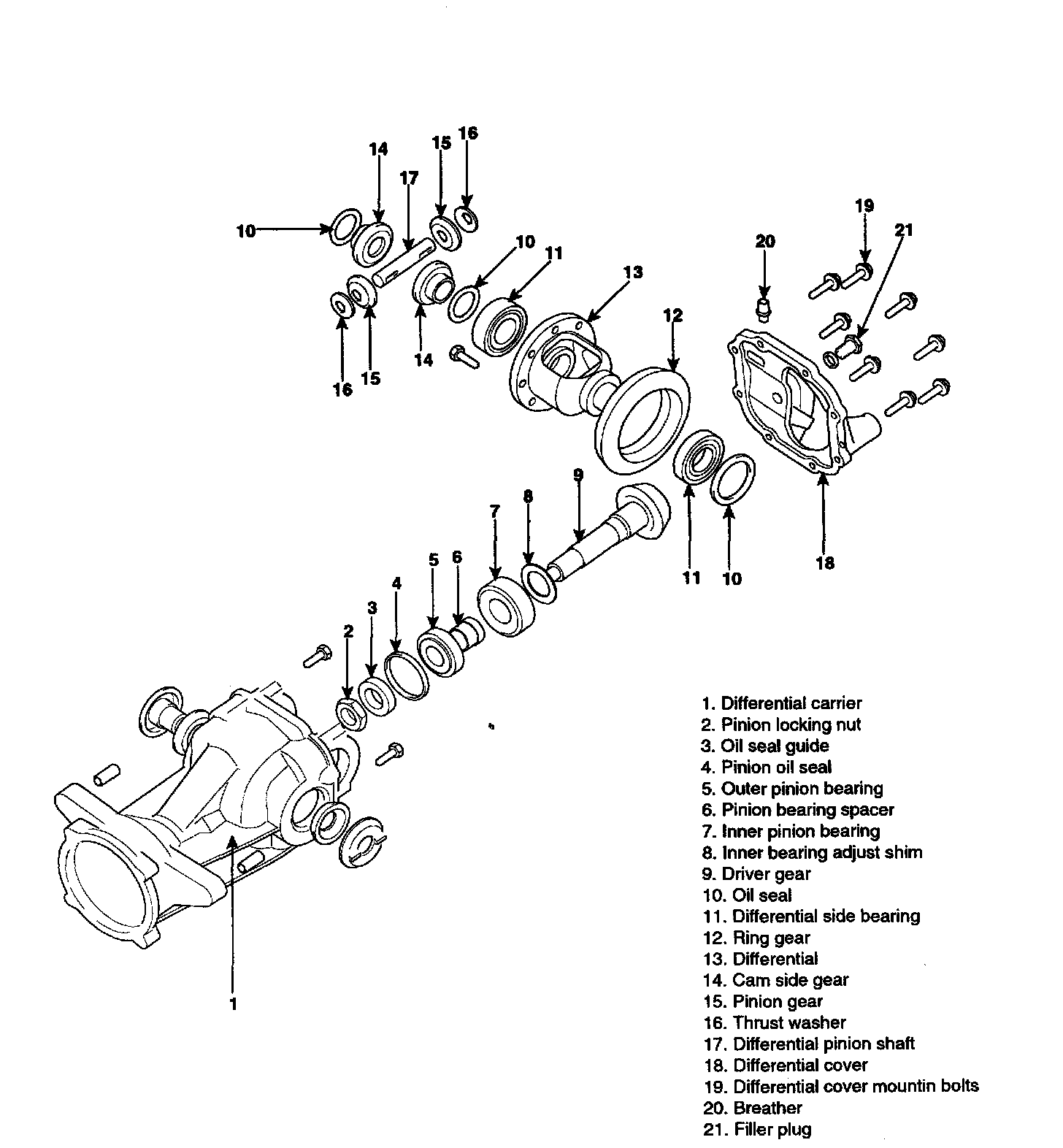

COMPONENTS

INSTALLATION





1. After applying liquid gasket, install the differential cover (B), and install the mounting bolts (A).





2. After installing the differential (B), install the mounting bolts (A).





3. Using the transaxle jack (B), install the differential assembly (A).





4. Connect the coupling control connector (A).
5. Install the propeller shaft.
6. Install the rear drive shaft.





7. Fill the gear oil.
