Inhibitor Switch

Inhibitor Switch

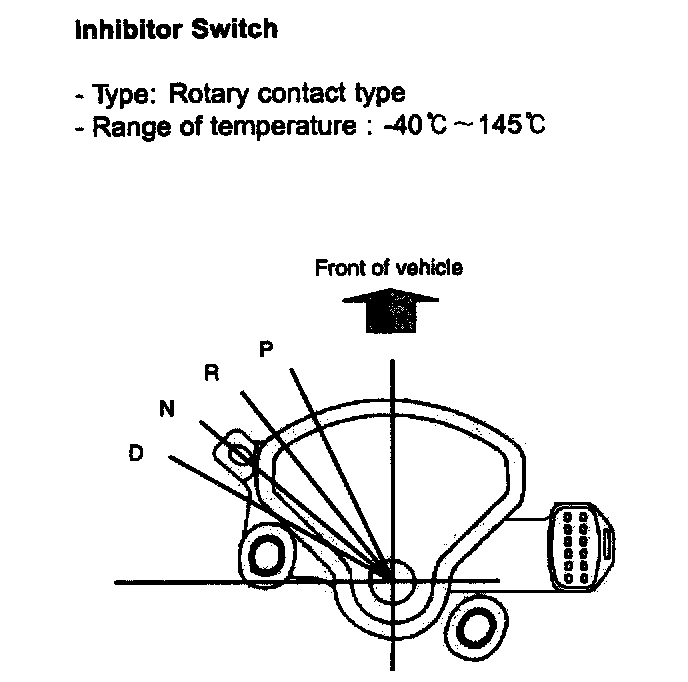

Inhibitor Switch:





- Type: Rotary contact type
- Range of temperature: -40°C - 145°C

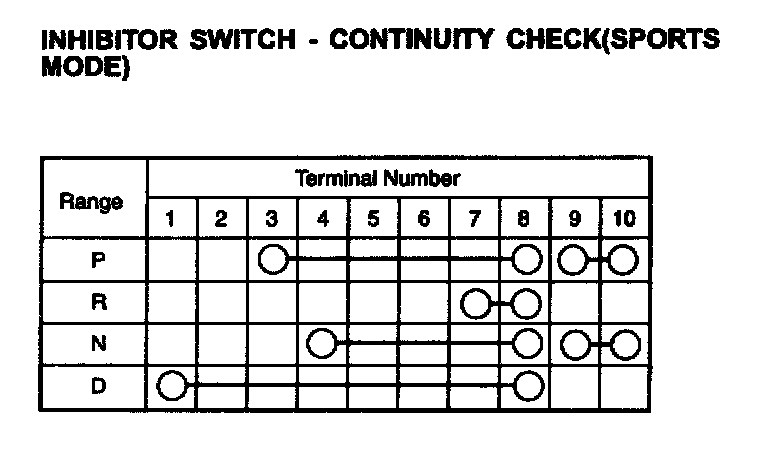

INHIBITOR SWITCH - CONTINUITY CHECK (SPORTS MODE)

INHIBITOR SWITCH - CONTINUITY CHECK (SPORTS MODE):
