Air Bag Control Module: Service and Repair

SRSCM REPLACEMENT

REMOVAL
1. Disconnect the battery negative cable, and wait at least three minutes before beginning work.
2. Disconnect the airbag connectors.
3. Disconnect the side airbag connectors.
4. Remove the center console.

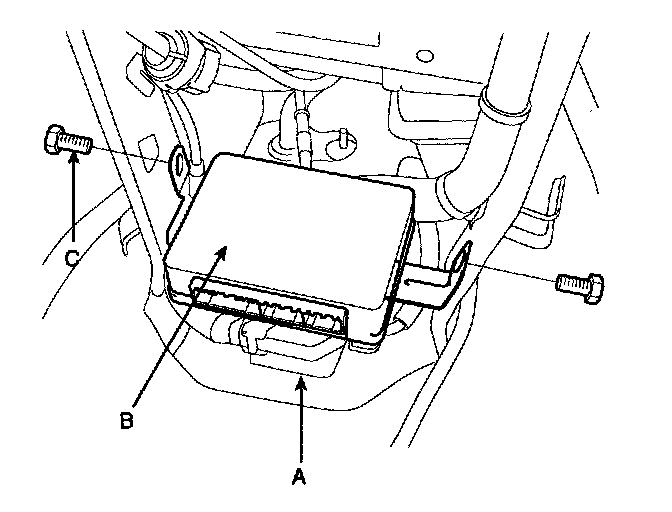

5. Disconnect SRS harness(A) from the SRSCM (B).
6. Disconnect the bolts (C), then remove the SRSCM (B).

INSTALLATION
1. Install the new SRSCM unit with the three bolts, then connect the connectors to the SRSCM unit.
2. Install the console.
3. Reconnect the airbag connectors.
4. Reconnect the side airbag connectors.
5. Reconnect the battery negative cable.
6. After installing the SRSCM unit, confirm proper system operation: Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.
