Input Shaft Speed Sensor: Replacement

  1. Remove the battery and air cleaner (see REPLACEMENT ).
  2. Remove the transaxle range switch connector.
  3. Remove the control cable to transaxle range switch mounting nut.
  4. Remove the clip (A) of the control cable (B).

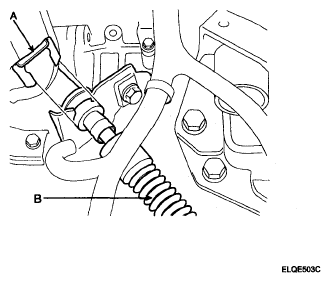

    Fig 1: Identifying Clip Of Control Cable
    G04811242Courtesy of HYUNDAI MOTOR CO.
  5. Remove the control cable mounting bracket.
  6. Remove the input shaft speed sensor (A).
    1. Disconnect the input shaft speed sensor connector.
    2. Remove the bolt (B).

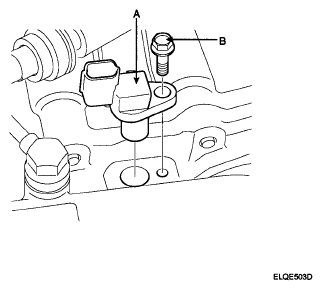

      Fig 2: Identifying Input Shaft Speed Sensor And Bolts
      G04811243Courtesy of HYUNDAI MOTOR CO.
    3. Inspect the input shaft speed sensor bore.
  7. Apply a light coat of automatic transaxle fluid to the O-ring seal before installation.
  8. Install the input shaft speed sensor.
  9. Install the control cable mounting bracket.
  10. Connect the input shaft speed sensor connector.
  11. Install the holder of the control cable.
  12. Adjust the control cable to transaxle range switch and tighten the transaxle manual lever to the control cable mounting nut. See AUTOMATIC TRANSAXLE CONTROL SYSTEM and ADJUSTMENT .
  13. Installation is the reverse of removal.
